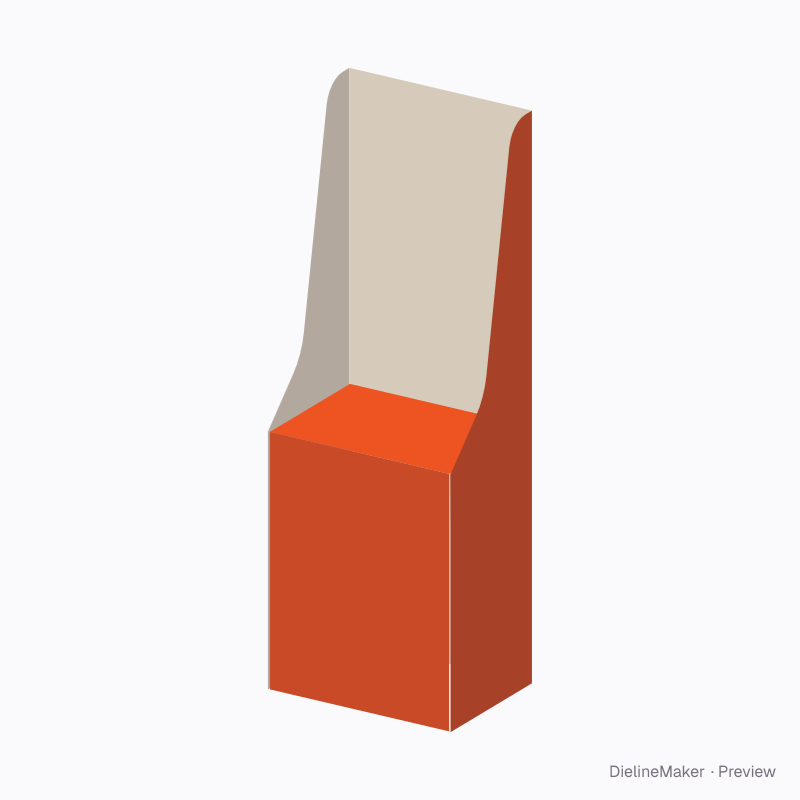

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0841Display
Plinth display with swept back dieline
A closed plinth with the back and sides rising behind it in a sweeping curve. A ready-sized preset of the shelf floor display — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside450 × 320 × 1300 mm
Outside456.4 × 324.8 × 1300 mm
Flat blank1099.6 × 1300 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0841
- Inside size
- Width 450 · Depth 320 · Height 1300 mm
- Size range
- Width 250–1200 · Depth 150–700 · Height 400–2200 mm
- Manufacturing
- 453.2 × 323.2 × 1300 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Body, Plinth
- Board area
- 1.951 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteEB doubleE-flute WE-flute K
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0841 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| BackBody | 453.2 × 1300 | L + T × H |
| Left sideBody | 323.2 × 1300 | W + T × H |
| Right sideBody | 323.2 × 1300 | W + T × H |
| Plinth topPlinth | 444.8 × 318 | – |
| Kick platePlinth | 444.8 × 584.5 | – |
| Side tab ×2Plinth | 584.5 × 311.2 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 6 options; the template and 3D preview follow each change.
- Construction9 options
- Shelvescount
- Shelf lipmm
- Top depthmm
- Plinthmm
- Scallopmm
The shelf floor display family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this plinth display with swept back yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
