FEFCO 0715Shipping
Six-cell automatic-bottom case dieline
Six cells from integral slotted and lobed partitions on a pre-glued floor. Width follows length at the specified 3:2 ratio. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside300 × 150 mm
Outside306.4 × 162.8 mm
Flat blank1041.6 × 509.6 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0715
- Inside size
- Length 300 · Height 150 mm
- Size range
- Length 120–750 · Height 50–600 mm
- Manufacturing
- 303.2 × 156.4 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.461 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteEB doubleE-flute KE-flute WF-flute
- Good for

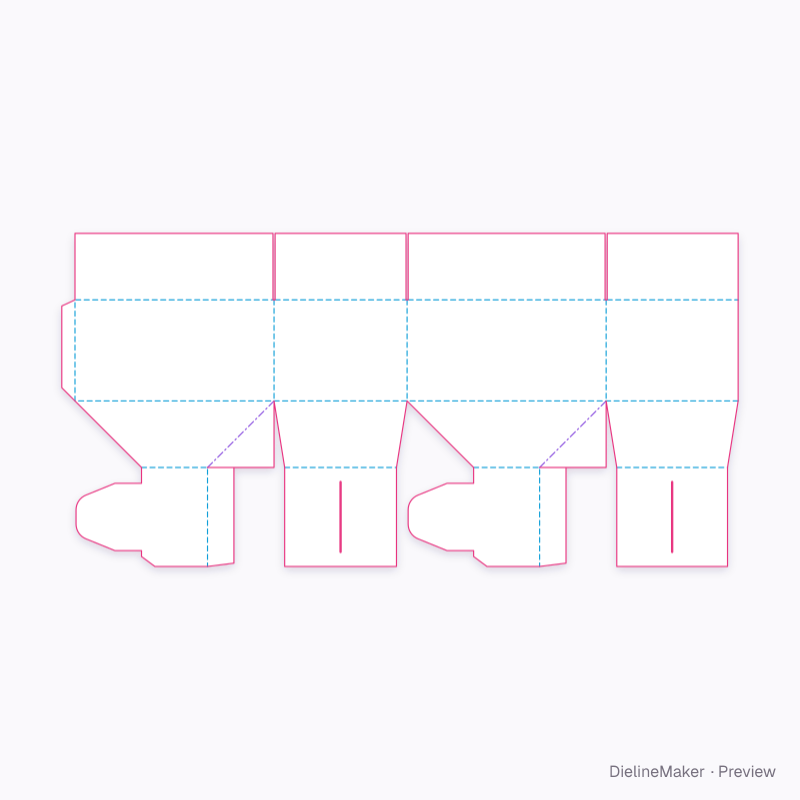

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0715 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 303.2 × 156.4 | L + T × H + 2T |
| Left side | 203.2 × 156.4 | W + T × H + 2T |
| Back | 303.2 × 156.4 | L + T × H + 2T |
| Right side | 200 × 156.4 | W × H + 2T |
| Glue flap | 32 × 156.4 | – × H + 2T |
| Top outer flap | 300 × 101.6 | L × – |
| Top inner flap ×2 | 196.8 × 101.6 | – |
| Top outer flap | 296.8 × 101.6 | L − T × – |
| Partition-carrying automatic floor ×2 | 303.2 × 101.6 | L + T × – |
| Diagonal automatic glue web | 143.7 × 71.8 | – |
| Lobed longitudinal partition ×2 | 100 × 150 | – × H |
| Cross-cell return ×2 | 40 × 150 | – × H |
| Diagonal automatic glue web | 71.8 × 143.7 | – |
| Side floor flap | 203.2 × 101.6 | – |
| Slotted cross partition | 170.7 × 150 | – × H |
| Side floor flap | 200 × 101.6 | – |
1 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Partition heightmm
- Cross-cell returnmm
Ready-sized six-cell automatic-bottom case presets
The same structure with sizes, boards and options set for a use.
- Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this six-cell automatic-bottom case yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
