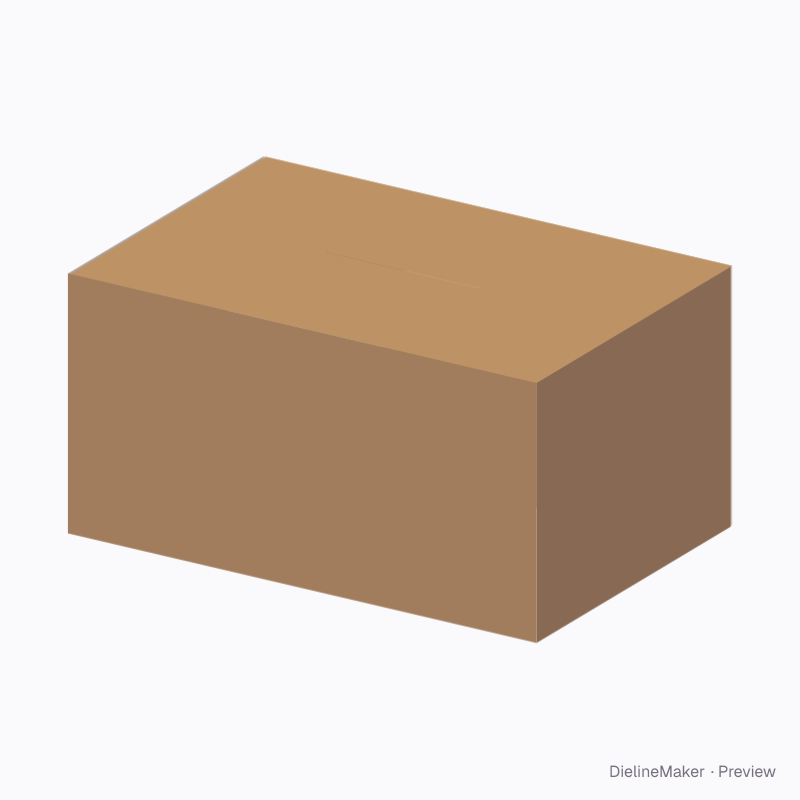

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0715Shipping
FEFCO 0715 · Six integral cells dieline
Six-cell ready-glued case. A ready-sized preset of the six-cell automatic-bottom case — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside300 × 150 mm
Outside303.2 × 156.4 mm
Flat blank1024.8 × 504.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0715
- Inside size
- Length 300 · Height 150 mm
- Size range
- Length 120–750 · Height 50–600 mm
- Manufacturing
- 301.6 × 153.2 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.454 m²
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- B-fluteEB doubleE-flute KE-flute WF-flute
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0715 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 301.6 × 153.2 | L + T × H + 2T |
| Left side | 201.6 × 153.2 | W + T × H + 2T |
| Back | 301.6 × 153.2 | L + T × H + 2T |
| Right side | 200 × 153.2 | W × H + 2T |
| Glue flap | 20 × 153.2 | – × H + 2T |
| Top outer flap | 300 × 100.8 | L × – |
| Top inner flap ×2 | 198.4 × 100.8 | – |
| Top outer flap | 298.4 × 100.8 | L − T × – |
| Partition-carrying automatic floor ×2 | 301.6 × 100.8 | L + T × – |
| Diagonal automatic glue web ×2 | 142.6 × 71.3 | – |
| Lobed longitudinal partition ×2 | 100 × 150 | – × H |
| Cross-cell return ×2 | 40 × 150 | – × H |
| Side floor flap | 201.6 × 100.8 | – |
| Slotted cross partition | 169.3 × 150 | – × H |
| Side floor flap | 200 × 100.8 | – |
| Slotted cross partition | 167.7 × 150 | – × H |
