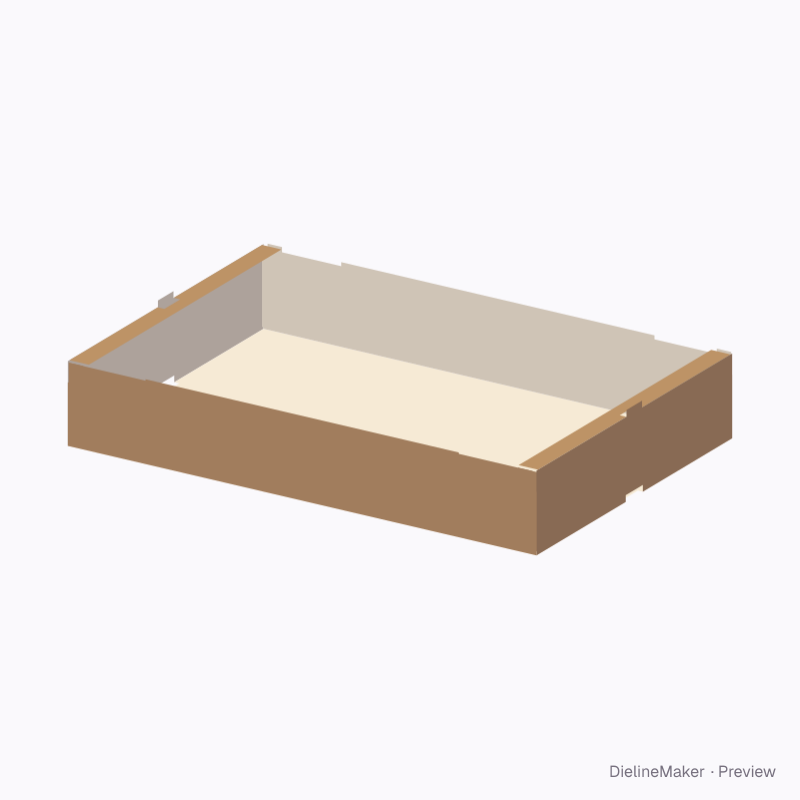

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0436.1Trays & lids
Glued corner-rim stacking tray dieline
Stacking trays with construction-specific wall tabs, receivers, inward rims and reinforced corners. A ready-sized preset of the standard stacking tray — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside600 × 400 × 100 mm
Outside606.4 × 406.4 × 111.2 mm
Flat blank853.2 × 623.2 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0436.1
- Inside size
- Length 600 · Width 400 · Wall height 100 mm
- Size range
- Length 160–1200 · Width 120–900 · Wall height 25–240 mm
- Manufacturing
- 603.2 × 403.2 × 100 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.498 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- E-flute KE-flute WB-fluteSBS 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0436.1 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Floor | 603.2 × 403.2 | L + T × W + T |
| e | 108 × 403.2 | – × W + T |
| e rim | 25 × 396.8 | – × W − T |
| Glued corner flap ×4 | 93.6 × 110 | H − 2T × – |
| e start rim flap | 18.6 × 31.3 | – |
| e end rim flap | 18.6 × 31.3 | – |
| w | 108 × 403.2 | – × W + T |
| w rim | 25 × 396.8 | – × W − T |
| w start rim flap | 18.6 × 31.3 | – |
| w end rim flap | 18.6 × 31.3 | – |
| n | 603.2 × 100 | L + T × H |
| s | 603.2 × 100 | L + T × H |
