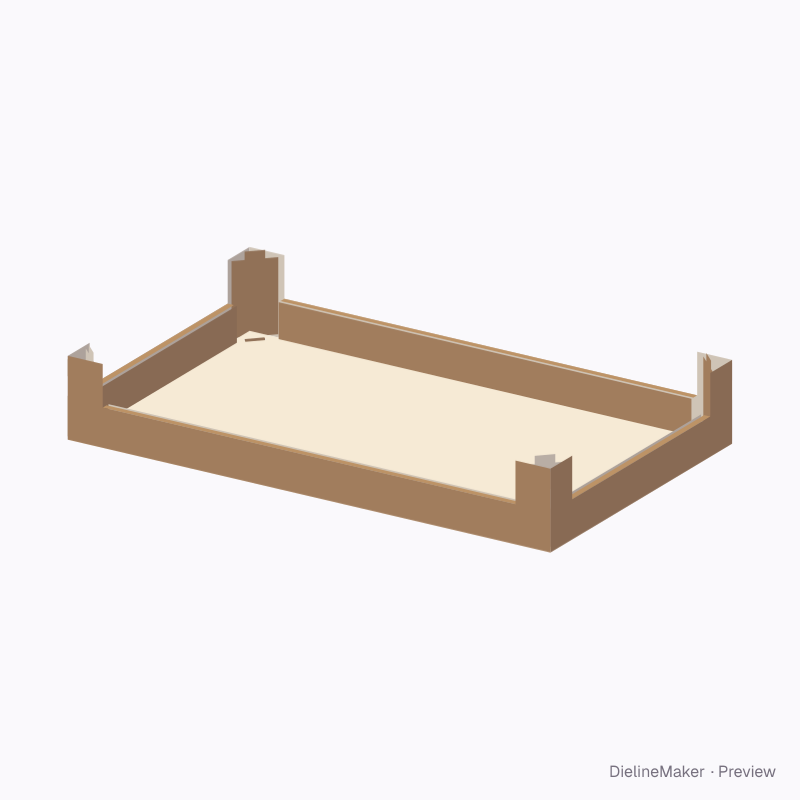

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0483Trays & lids
Triangular-column display tray dieline
Stacking trays with construction-specific wall tabs, receivers, inward rims and reinforced corners. A ready-sized preset of the standard stacking tray — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside500 × 300 × 80 mm
Outside506.4 × 306.4 × 91.2 mm
Flat blank672.8 × 472.1 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0483
- Inside size
- Length 500 · Width 300 · Wall height 80 mm
- Size range
- Length 160–1200 · Width 120–900 · Wall height 25–240 mm
- Manufacturing
- 503.2 × 303.2 × 80 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.308 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- E-flute KE-flute WB-fluteSBS 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0483 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Floor | 503.2 × 303.2 | L + T × W + T |
| n | 503.2 × 80 | L + T × H |
| n low roll | 430.4 × 6.4 | – |
| n low return | 430.4 × 35.2 | – |
| e | 80 × 303.2 | H × W + T |
| e low roll | 6.4 × 230.4 | – |
| e low return | 35.2 × 230.4 | – |
| s | 503.2 × 80 | L + T × H |
| s low roll | 430.4 × 6.4 | – |
| s low return | 430.4 × 35.2 | – |
| w | 80 × 303.2 | H × W + T |
| w low roll | 6.4 × 230.4 | – |
| w low return | 35.2 × 230.4 | – |
| e start column outer | 73.6 × 30 | H − 2T × – |
| e start column diagonal | 73.6 × 42.4 | H − 2T × – |
| e start column glue | 73.6 × 12 | H − 2T × – |
9 more panels are listed in the editor’s structure step.
