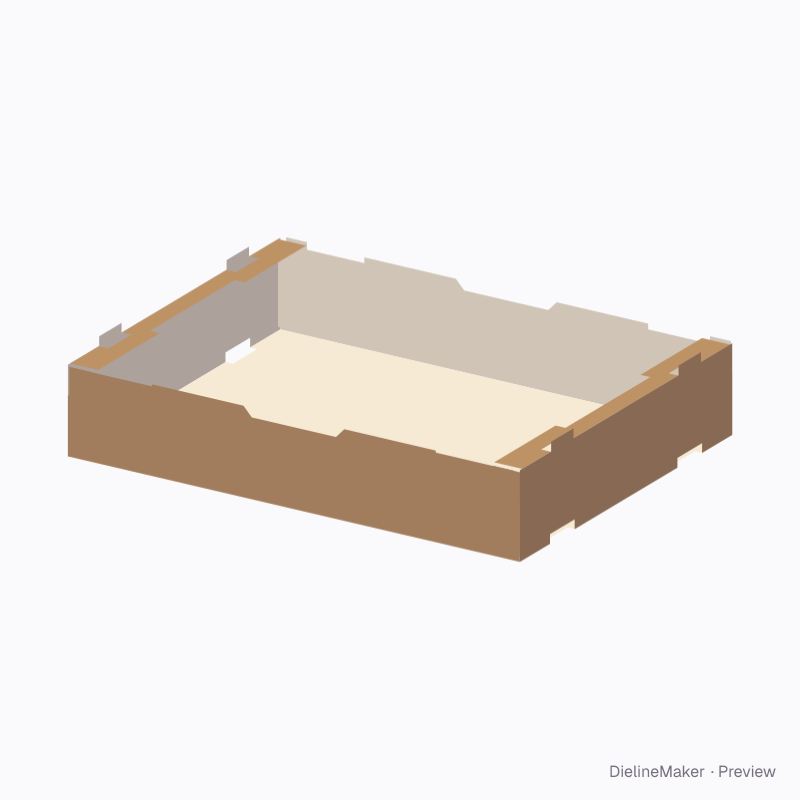

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0436.2Trays & lids
Twin-lug glued corner-rim tray dieline
Stacking trays with construction-specific wall tabs, receivers, inward rims and reinforced corners. A ready-sized preset of the standard stacking tray — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside400 × 300 × 75 mm
Outside406.4 × 306.4 × 86.2 mm
Flat blank603.2 × 468.2 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0436.2
- Inside size
- Length 400 · Width 300 · Wall height 75 mm
- Size range
- Length 160–1200 · Width 120–900 · Wall height 25–240 mm
- Manufacturing
- 403.2 × 303.2 × 75 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.257 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- E-flute KE-flute WB-fluteSBS 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0436.2 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Floor | 403.2 × 303.2 | L + T × W + T |
| e | 83 × 303.2 | – × W + T |
| e rim | 25 × 296.8 | – × W − T |
| Glued corner flap ×4 | 68.6 × 82.5 | H − 2T × – |
| e start rim flap | 18.6 × 26.3 | – |
| e end rim flap | 18.6 × 26.3 | – |
| w | 83 × 303.2 | – × W + T |
| w rim | 25 × 296.8 | – × W − T |
| w start rim flap | 18.6 × 26.3 | – |
| w end rim flap | 18.6 × 26.3 | – |
| n | 403.2 × 75 | L + T × H |
| s | 403.2 × 75 | L + T × H |
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Construction10 options
- Stacking tab widthmm
- Stacking tab heightmm
- Inward rim depthmm
- Corner column depthmm
The standard stacking tray family
The same structure with sizes, boards and options set for a use.
