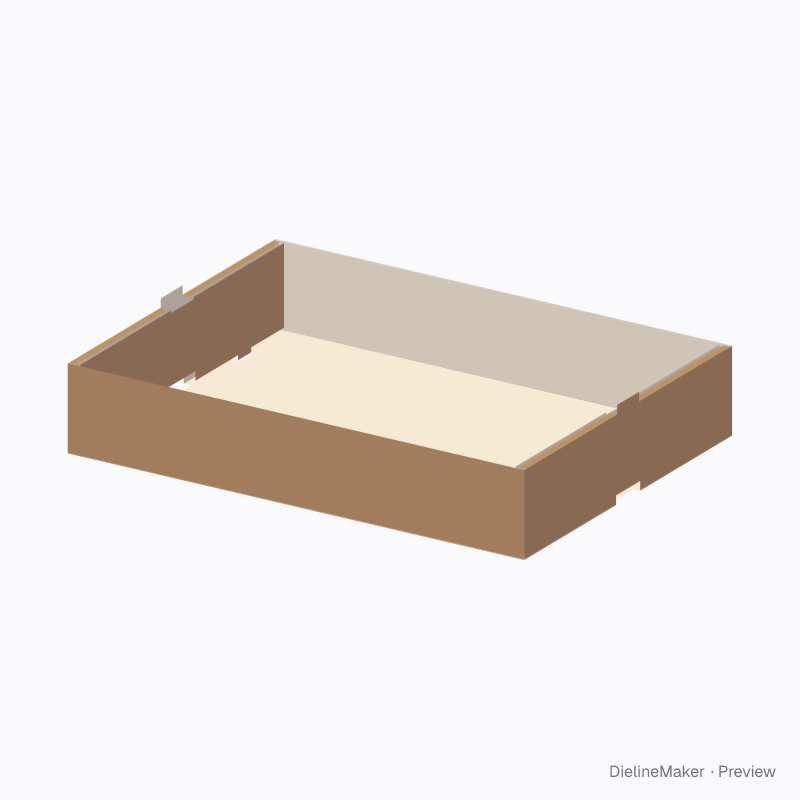

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0435.1Trays & lids
Rolled-end tray with open stacking receivers dieline
Stacking trays with construction-specific wall tabs, receivers, inward rims and reinforced corners. A ready-sized preset of the standard stacking tray — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside400 × 300 × 75 mm
Outside419.2 × 306.4 × 86.2 mm
Flat blank728.8 × 453.2 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0435.1
- Inside size
- Length 400 · Width 300 · Wall height 75 mm
- Size range
- Length 160–1200 · Width 120–900 · Wall height 25–240 mm
- Manufacturing
- 416 × 303.2 × 75 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.300 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- E-flute KE-flute WB-fluteSBS 350SBS 18 pt
- Good for

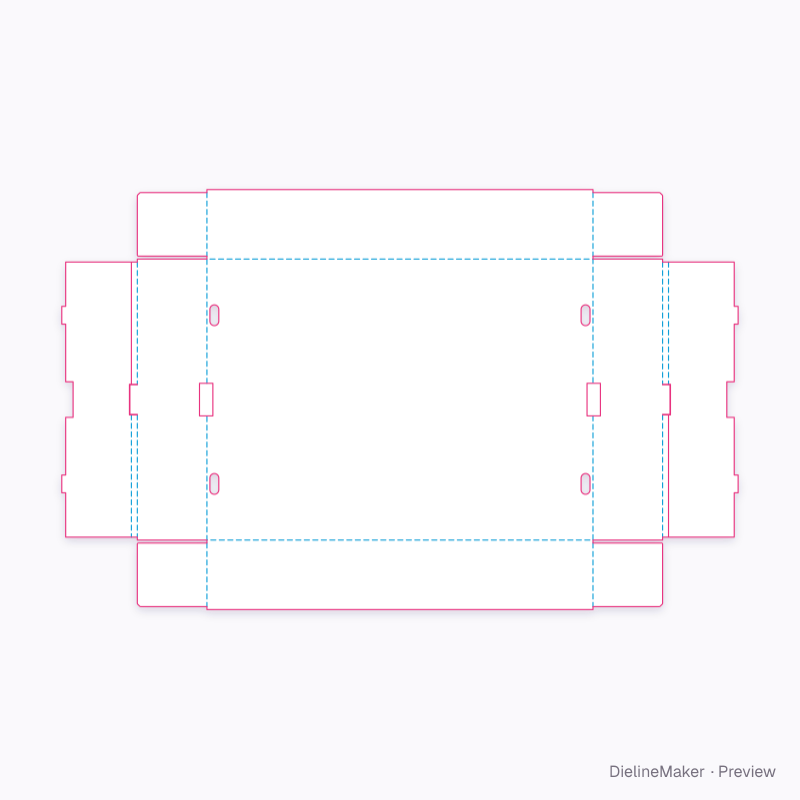

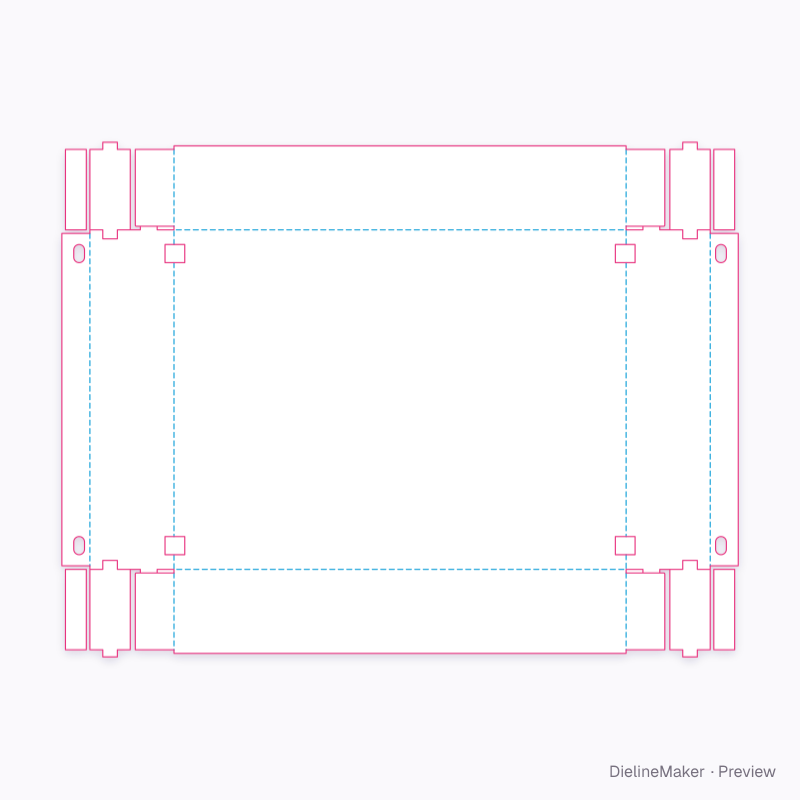

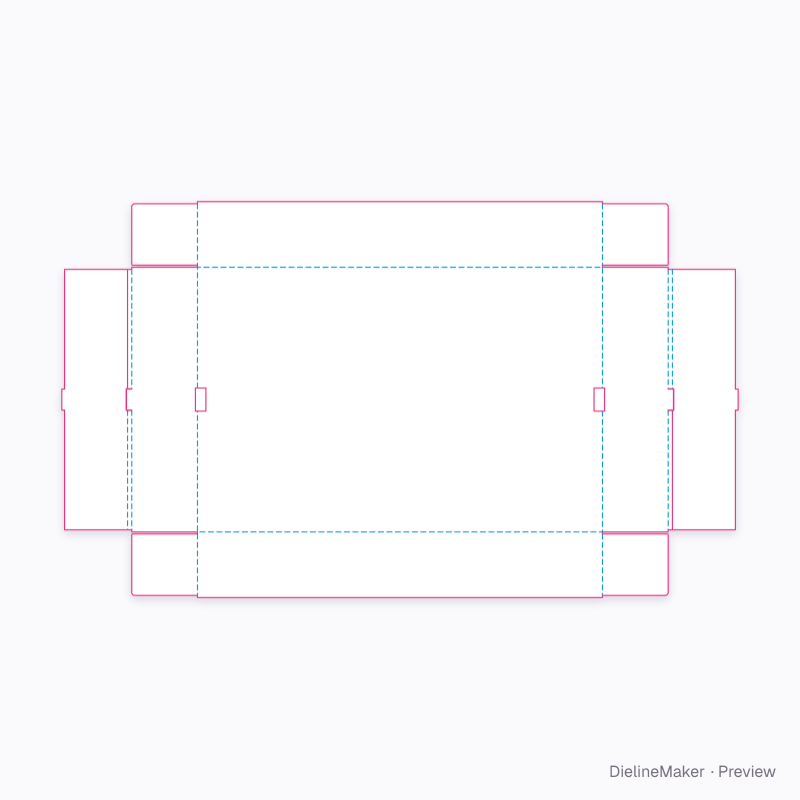

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0435.1 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Floor | 416 × 303.2 | – × W + T |
| e | 83 × 303.2 | – × W + T |
| Rim bridge ×4 | 6.4 × 131.9 | – |
| End-wall return ×2 | 75 × 296.8 | H × W − T |
| w | 83 × 303.2 | – × W + T |
| n | 416 × 75 | – × H |
| Trapped corner flap ×4 | 75 × 68.6 | H × H − 2T |
| s | 416 × 75 | – × H |
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Construction10 options
- Stacking tab widthmm
- Stacking tab heightmm
- Inward rim depthmm
- Corner column depthmm
