The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0410Shipping
Framed print box 900×650×60 dieline
Flat folder for a framed print or mirror. A ready-sized preset of the five panel folder — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside900 × 650 × 60 mm
Outside919.2 × 659.6 × 66.4 mm
Flat blank1036 × 1496 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0410
- Inside size
- Length 900 · Width 650 · Height 60 mm
- Size range
- Length 200–2000 · Width 40–700 · Height 25–400 mm
- Manufacturing
- 916 × 653.2 × 63.2 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 1.539 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteE-flute KE-flute WEB double
- Good for

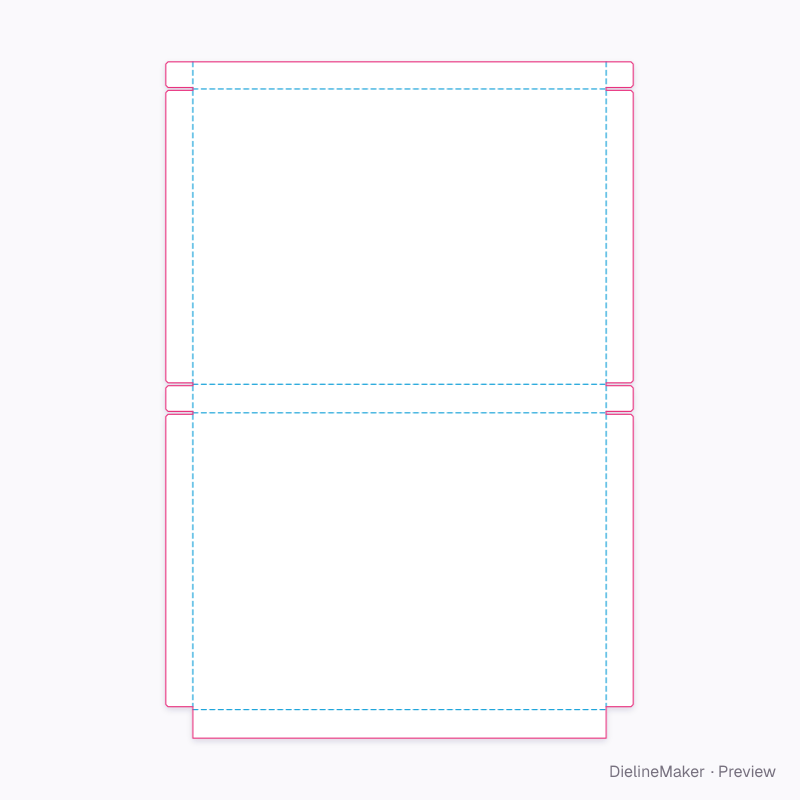

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0410 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Bottom | 916 × 653.2 | L + 5T × W + T |
| Front side | 916 × 60 | L + 5T × H |
| Back side | 916 × 63.2 | L + 5T × H + T |
| Top | 916 × 656.4 | L + 5T × W + 2T |
| Closing panel | 916 × 63.2 | L + 5T × H + T |
| Side end flap ×4 | 60 × 56.8 | H × H − T |
| Bottom end flap ×2 | 60 × 646.8 | H × W − T |
| Top end flap ×2 | 60 × 646.8 | H × W − T |
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
- Side flap depthmm
The five panel folder family
The same structure with sizes, boards and options set for a use.

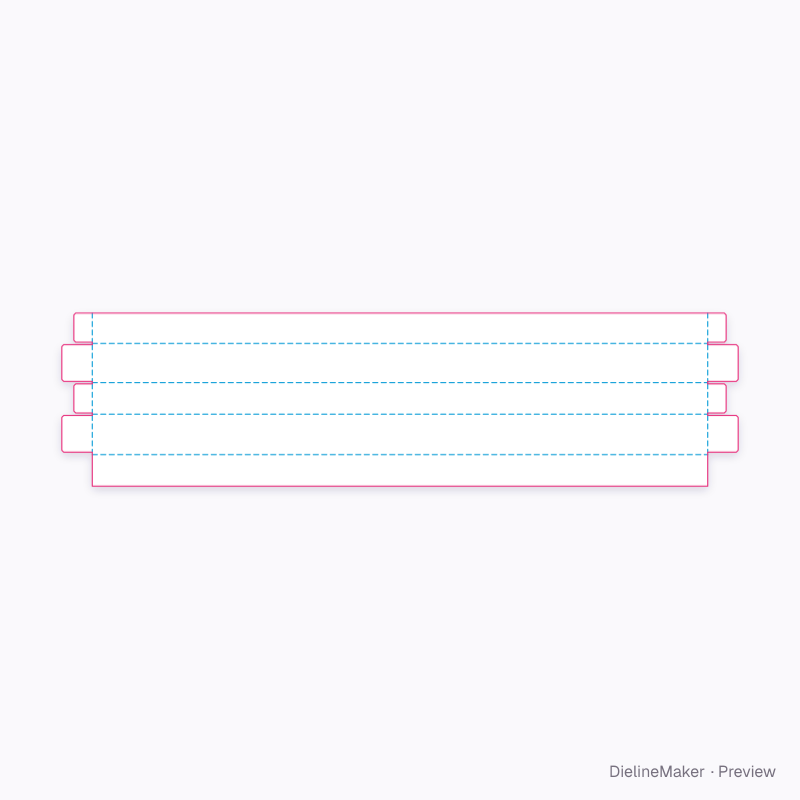

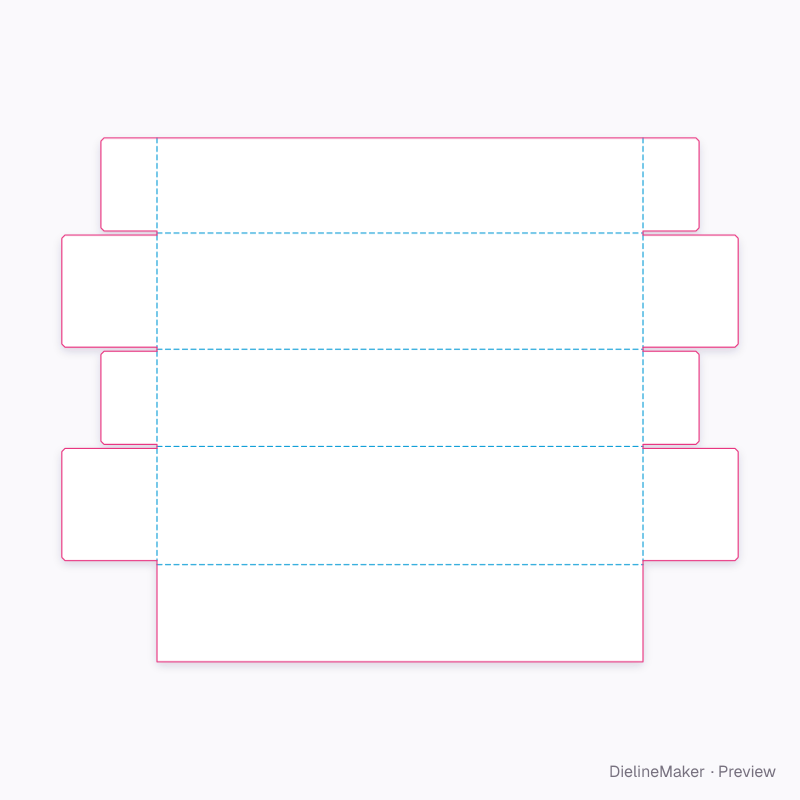

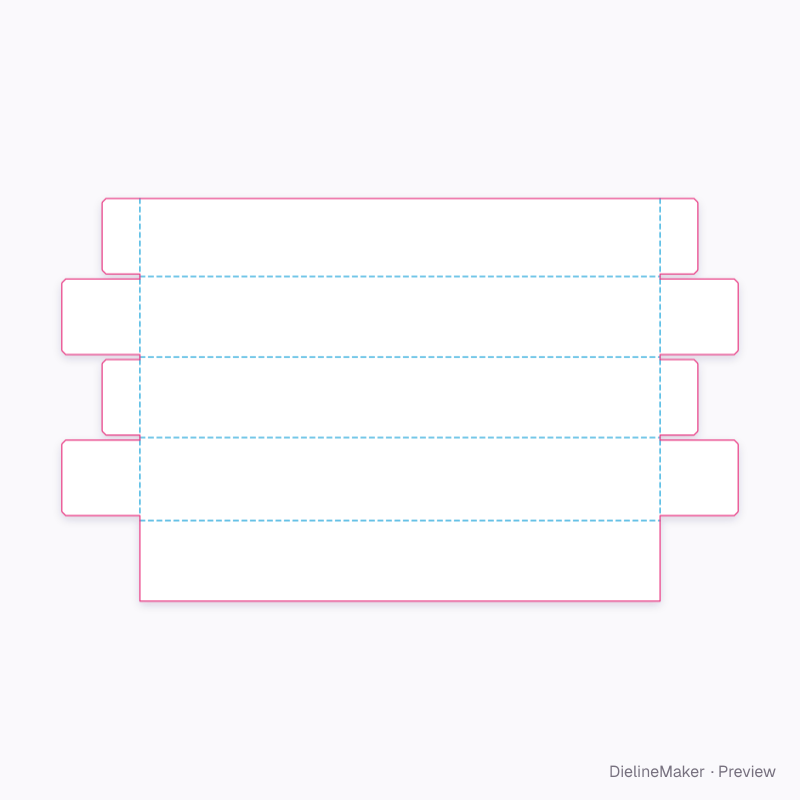

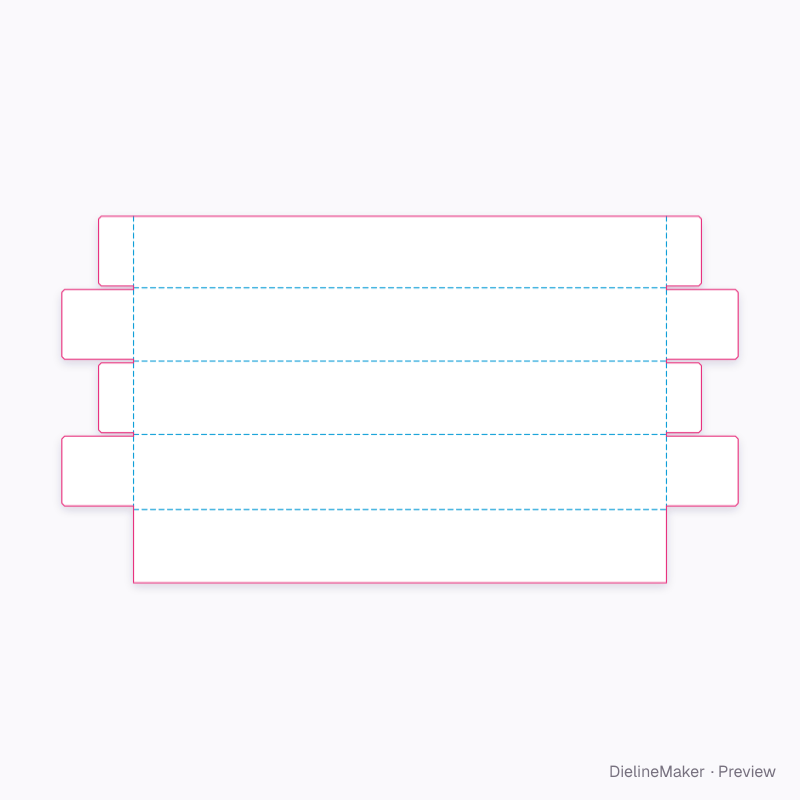

Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this framed print box 900×650×60 yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
