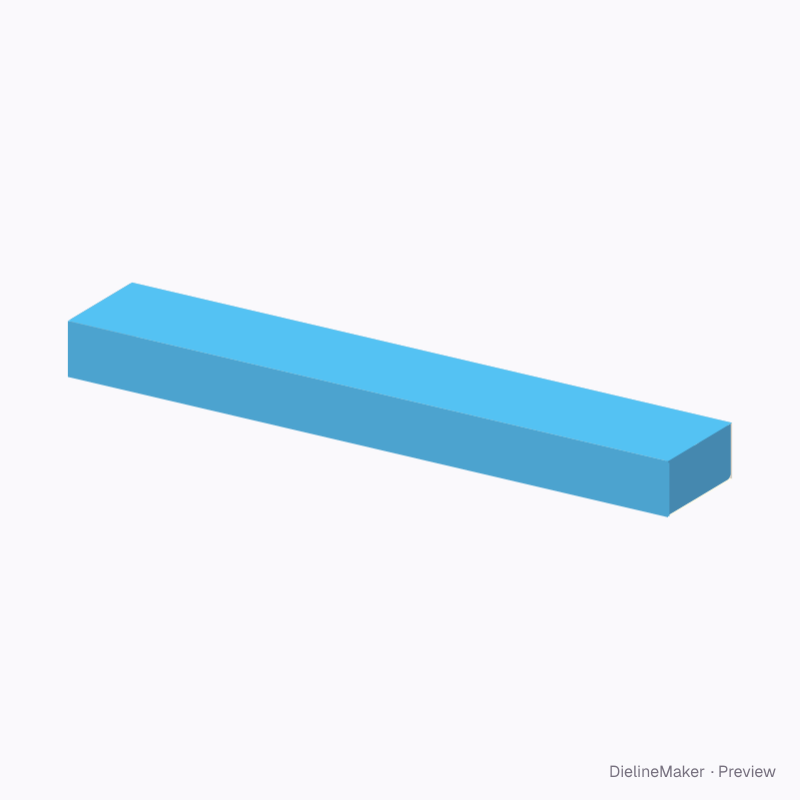

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0410Shipping
Garden tool box 1200×200×100 dieline
Rakes, spades and brooms ship head-first without punching out the end. A ready-sized preset of the five panel folder — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside1200 × 200 × 100 mm
Outside1227.6 × 213.8 × 109.2 mm
Flat blank1423 × 723 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0410
- Inside size
- Length 1200 · Width 200 · Height 100 mm
- Size range
- Length 200–2000 · Width 40–700 · Height 25–400 mm
- Manufacturing
- 1223 × 204.6 × 104.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.999 m²
- Default board
- EB double wall · 4.6 mm caliper
- Board options
- B-fluteE-flute KE-flute WEB double
- Good for

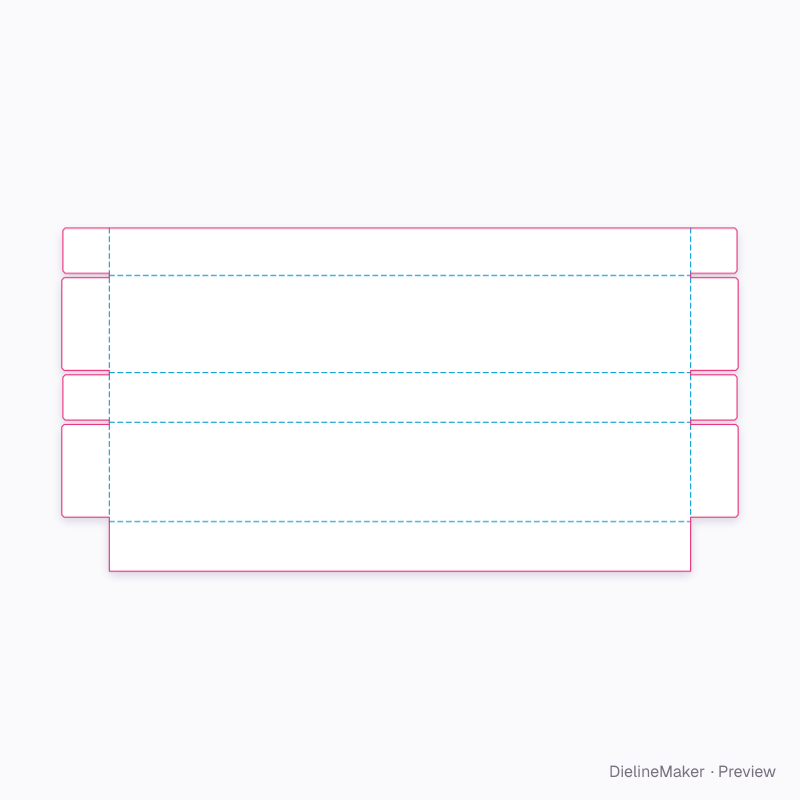

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0410 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (4.6 mm for EB double wall). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Bottom | 1223 × 204.6 | L + 5T × W + T |
| Front side | 1223 × 100 | L + 5T × H |
| Back side | 1223 × 104.6 | L + 5T × H + T |
| Top | 1223 × 209.2 | L + 5T × W + 2T |
| Closing panel | 1223 × 104.6 | L + 5T × H + T |
| Side end flap ×4 | 97.7 × 95.4 | – × H − T |
| Bottom end flap ×2 | 100 × 195.4 | H × W − T |
| Top end flap ×2 | 100 × 195.4 | H × W − T |
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
- Side flap depthmm
