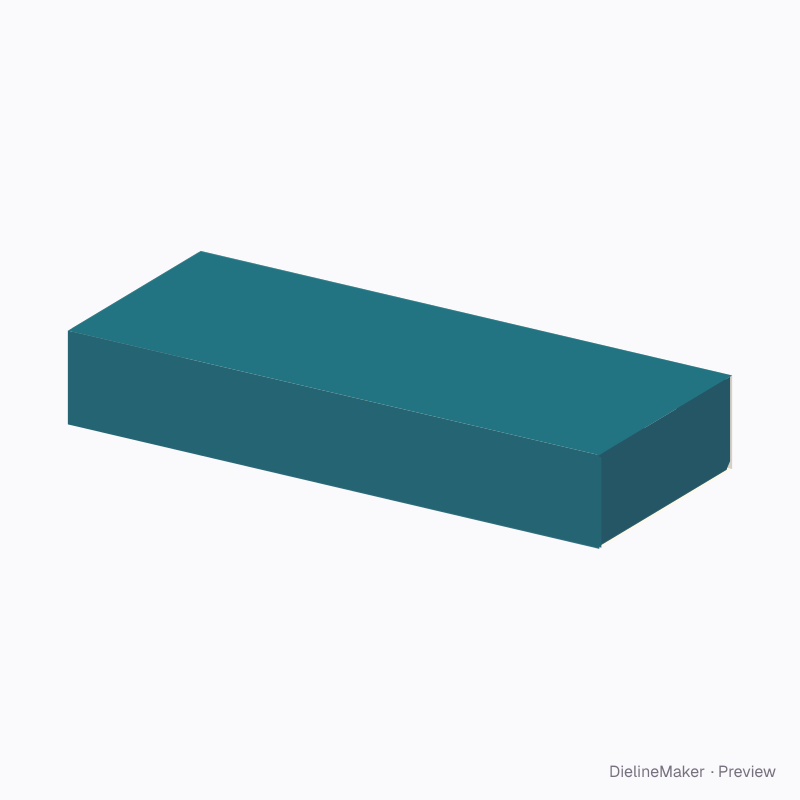

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0410Shipping
Keyboard shipping folder — Five panel folder dieline
Editable 500 × 200 × 80 mm starting point using five panel folder. Adjust the dimensions to your product before prototyping. A ready-sized preset of the five panel folder — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside500 × 200 × 80 mm
Outside519.2 × 209.6 × 86.4 mm
Flat blank676 × 656 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0410
- Inside size
- Length 500 · Width 200 · Height 80 mm
- Size range
- Length 200–2000 · Width 40–700 · Height 25–400 mm
- Manufacturing
- 516 × 203.2 × 83.2 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.426 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteE-flute KE-flute WEB double
- Good for

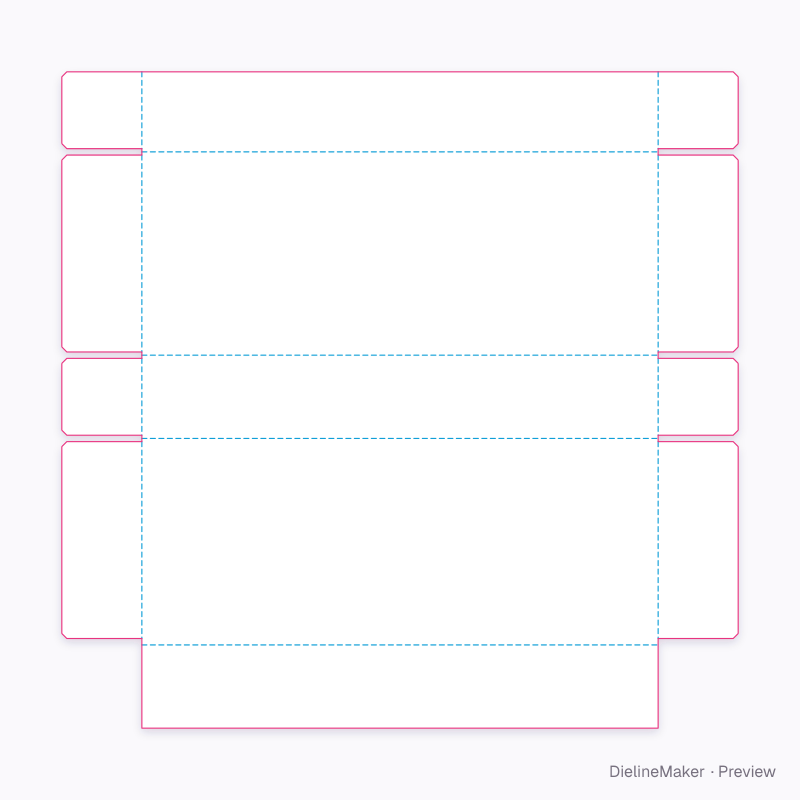

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0410 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Bottom | 516 × 203.2 | L + 5T × W + T |
| Front side | 516 × 80 | L + 5T × H |
| Back side | 516 × 83.2 | L + 5T × H + T |
| Top | 516 × 206.4 | L + 5T × W + 2T |
| Closing panel | 516 × 83.2 | L + 5T × H + T |
| Side end flap ×4 | 80 × 76.8 | – × H − T |
| Bottom end flap ×2 | 80 × 196.8 | H × W − T |
| Top end flap ×2 | 80 × 196.8 | H × W − T |
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
- Side flap depthmm
