ECMA F80.21.00.00Trays & lids
Two-compartment insert 160×80×100 dieline
Two equal compartments for a pair of jars or tubes. A ready-sized preset of the folded compartment insert — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside160 × 80 × 100 mm
Outside161 × 81 × 100 mm
Flat blank719 × 100 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA F80.21.00.00
- Inside size
- Length 160 · Width 80 · Height 100 mm
- Size range
- Length 40–600 · Width 30–400 · Height 20–400 mm
- Manufacturing
- 160.5 × 80.5 × 100 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.072 m²
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350Kraft 350FBB 400GD2 350F-fluteE-flute KE-flute WSBS 18 pt
- Good for

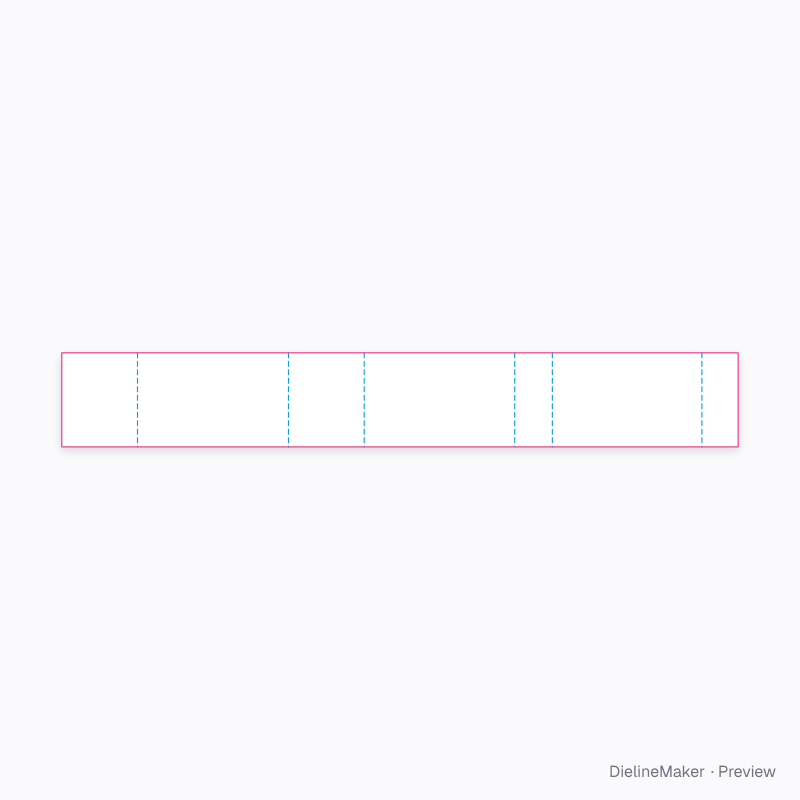

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA F80.21.00.00 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| End wall ×2 | 80.5 × 100 | W + T × H |
| Side wall | 160.5 × 100 | L + T × H |
| Side wall | 160 × 100 | L × H |
| Spacer | 40 × 100 | – × H |
| Divider | 159 × 100 | L − 2T × H |
| Glue flap | 38.5 × 100 | – × H |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Compartments2 options
- First compartmentmm
