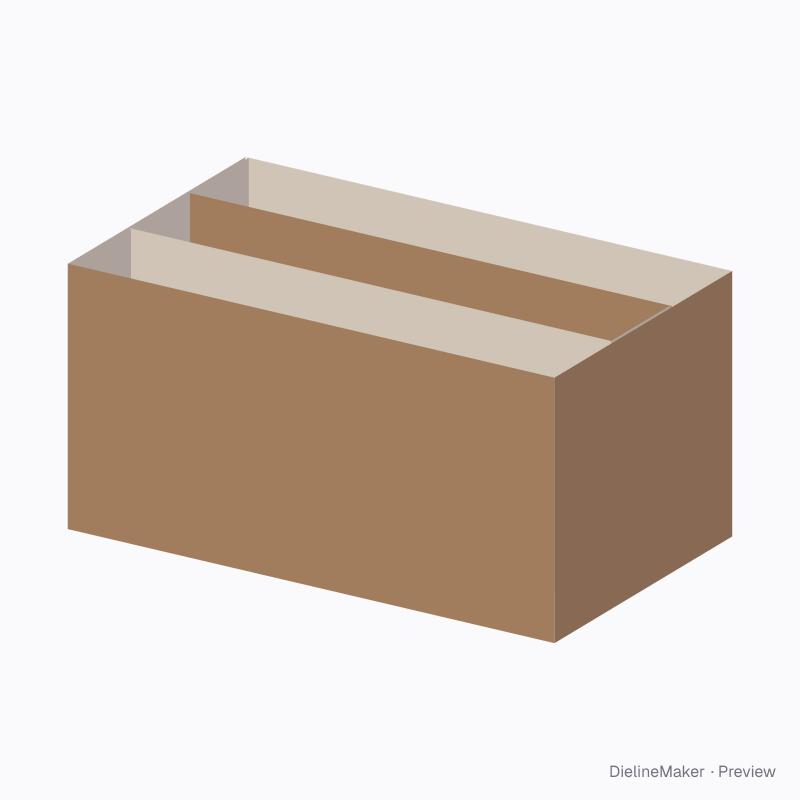

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA F80.22.00.00Trays & lids
Three-compartment insert 180×105×90 dieline
Three equal compartments in one folded piece, for a trio of products. A ready-sized preset of the folded compartment insert — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside180 × 105 × 90 mm
Outside181.2 × 106.2 × 90 mm
Flat blank1032.6 × 90 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA F80.22.00.00
- Inside size
- Length 180 · Width 105 · Height 90 mm
- Size range
- Length 40–600 · Width 30–400 · Height 20–400 mm
- Manufacturing
- 180.6 × 105.6 × 90 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.093 m²
- Default board
- Folding boxboard 400 g · 0.6 mm caliper
- Board options
- SBS 350Kraft 350FBB 400GD2 350F-fluteE-flute KE-flute WSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA F80.22.00.00 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.6 mm for Folding boxboard 400 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| End wall ×2 | 105.6 × 90 | W + T × H |
| Side wall | 180.6 × 90 | L + T × H |
| Side wall | 180 × 90 | L × H |
| Spacer ×2 | 35 × 90 | – × H |
| Divider ×2 | 178.8 × 90 | L − 2T × H |
| Glue flap | 33.2 × 90 | – × H |
