The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0441Trays & lids
Craft kit tray — Tray with hinged lid dieline
Editable 280 × 200 × 90 mm starting point using tray with hinged lid. Adjust the dimensions to your product before prototyping. A ready-sized preset of the tray with hinged lid — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside280 × 200 × 90 mm
Outside292.8 × 204.8 × 92.4 mm
Flat blank464.8 × 622.4 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0441
- Inside size
- Length 280 · Width 200 · Height 90 mm
- Size range
- Length 100–700 · Width 70–500 · Height 40–300 mm
- Manufacturing
- 284.8 × 201.6 × 91.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.262 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- E-flute KE-flute WB-fluteF-flute
- Good for

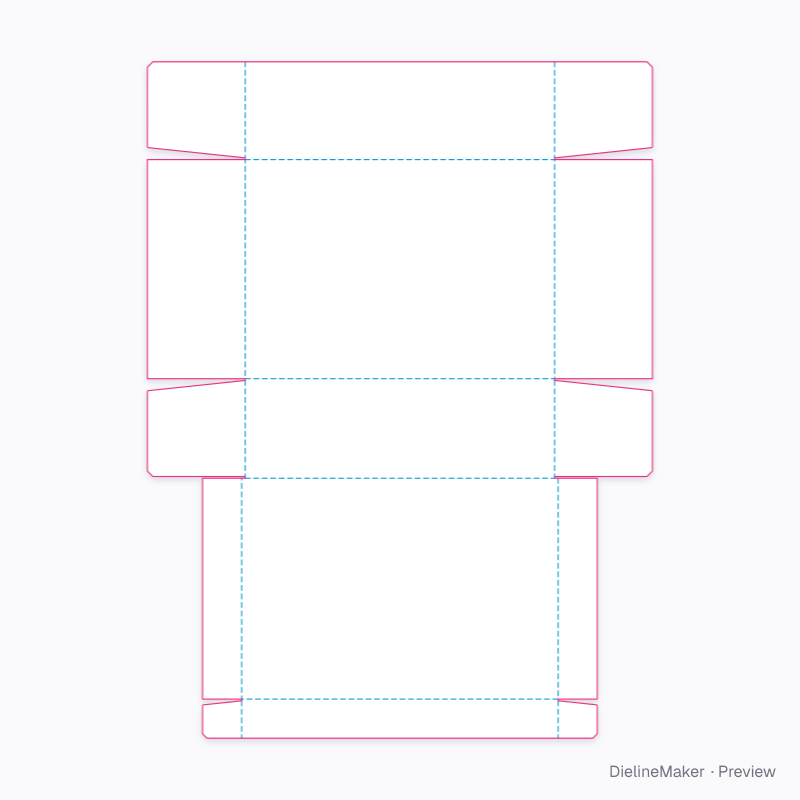

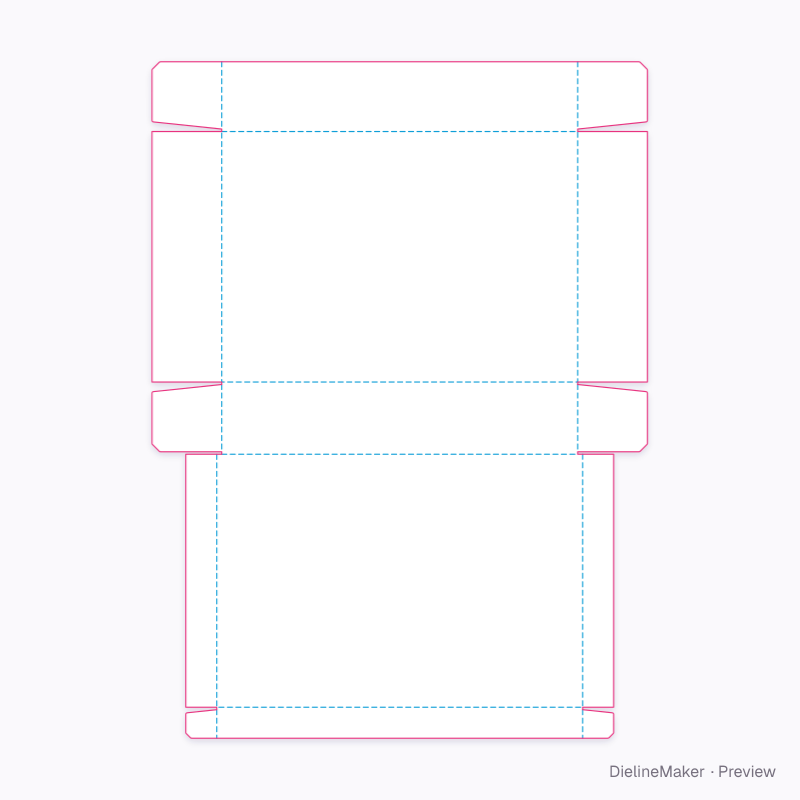

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0441 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 284.8 × 201.6 | L + 3T × W + T |
| Front | 284.8 × 90 | L + 3T × H |
| Back | 284.8 × 91.6 | L + 3T × H + T |
| Left end | 90 × 201.6 | W + T × H |
| Right end | 90 × 201.6 | W + T × H |
| Corner flap ×4 | 90 × 88.4 | – × H − T |
| Lid | 284.8 × 203.2 | L + 7T × W + 2T |
| Lid front skirt | 291.2 × 36 | – |
| Lid side skirt ×2 | 36 × 203.2 | – × W + 2T |
| Lid corner flap ×2 | 36 × 34.4 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
- Lid skirt depthmm
