DM-INTEGRAL-WING-SUPPORT-01Display
Round-top pedestal display dieline

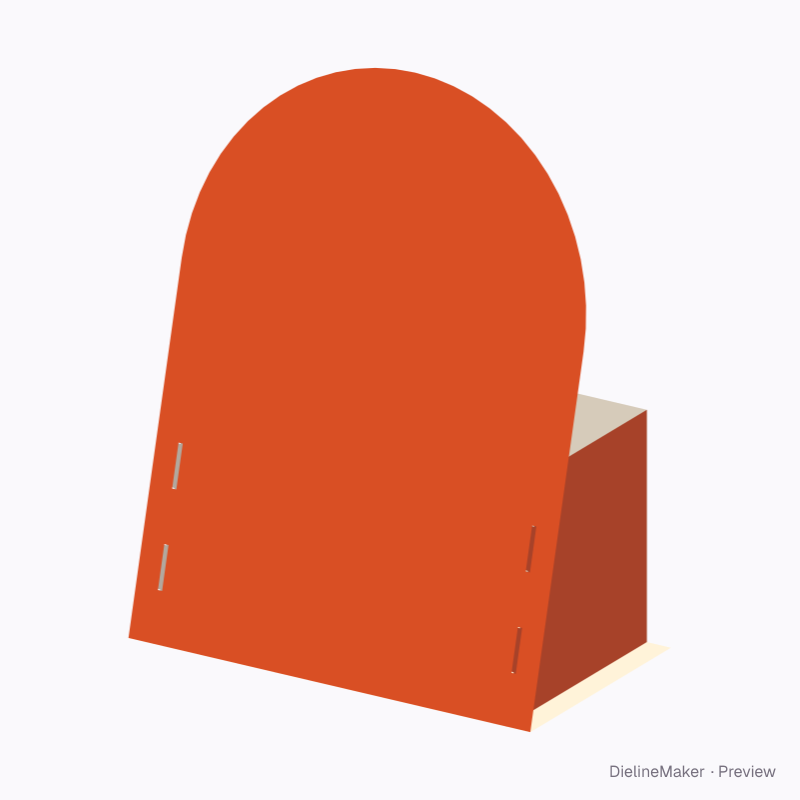

A one-piece standing display: the face folds to a base and rear panel whose two side wings hook into slots in the back of the face. No glue; square or round top. A ready-sized preset of the display face with integral locking wings — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside250 × 140 × 330 mm
Outside253.2 × 143.2 × 333.2 mm
Flat blank501.9 × 602 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-INTEGRAL-WING-SUPPORT-01
- Inside size
- Face width 250 · Stand depth 140 · Face height 330 mm
- Size range
- Face width 80–800 · Stand depth 30–400 · Face height 100–1200 mm
- Manufacturing
- 251.6 × 141.6 × 331.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.173 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- E-flute white / kraft · 1.6 mm caliper
- Board options
- E-flute WF-fluteE-flute KB-fluteFBB 400
- Good for

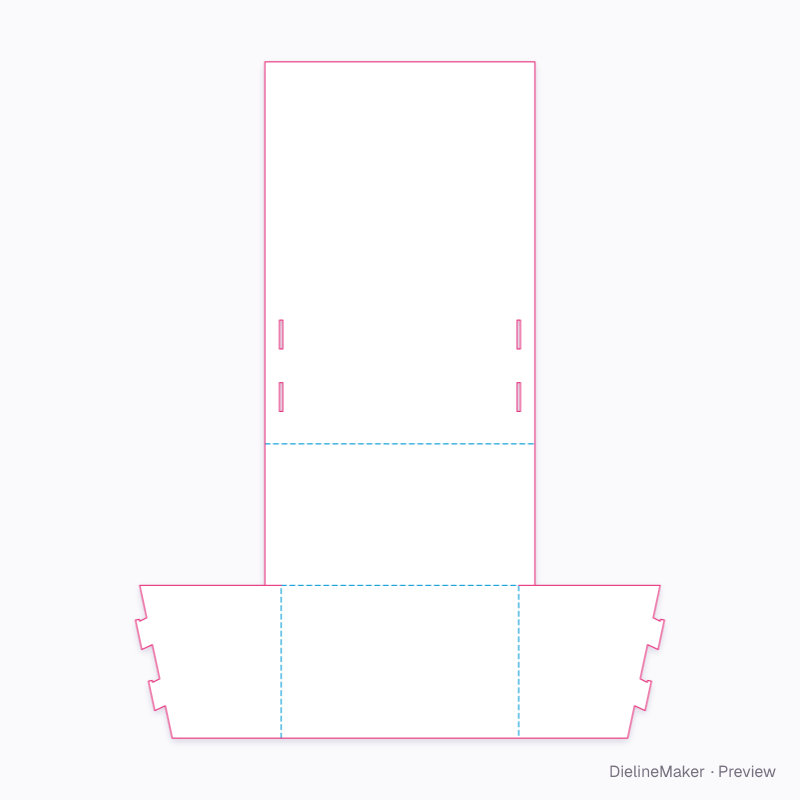

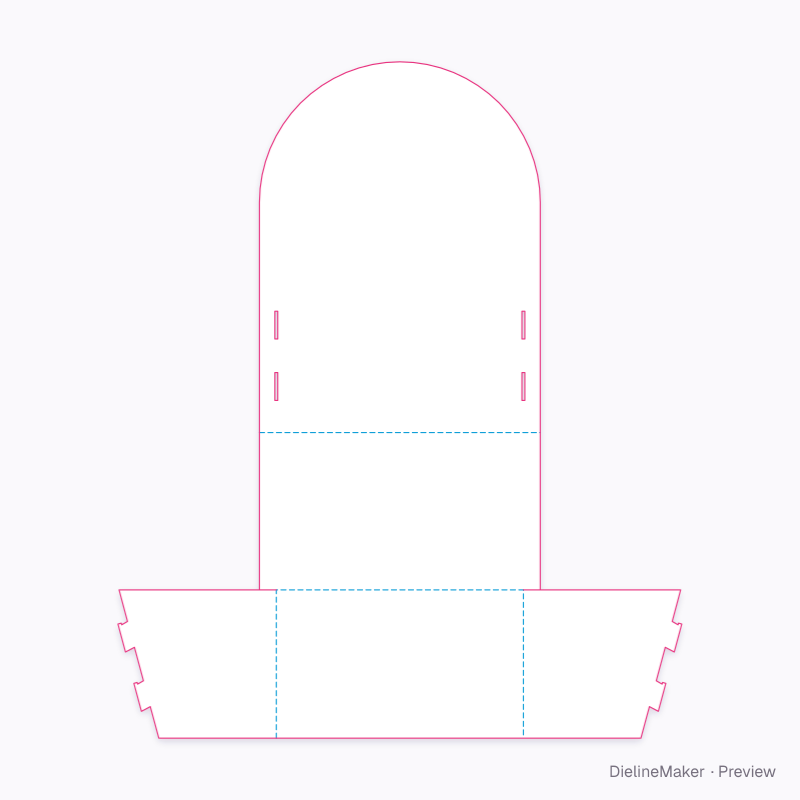

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-INTEGRAL-WING-SUPPORT-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute white / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Display face | 250 × 330 | L × H |
| Base | 250 × 140 | L × W |
| Rear panel | 220 × 132 | – |
| Locking wing ×2 | 141 × 132 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
