DM-MAILER-INSERT-01Mailer
Gift trio mailer dieline
Three jars, candles or preserves in a row, each in its own round cavity. A ready-sized preset of the mailer with insert — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside250 × 100 × 90 mm
Outside266 × 103.2 × 93.2 mm
Flat blank630.8 × 421.2 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-MAILER-INSERT-01
- Inside size
- Length 250 · Width 100 · Height 90 mm
- Size range
- Length 80–500 · Width 60–400 · Height 25–200 mm
- Manufacturing
- 264.4 × 101.6 × 91.6 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Box, Insert
- Board area
- 0.231 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- E-flute WE-flute KF-fluteB-fluteSBS 350FBB 400Kraft 350Black 350SBS 18 pt
- Good for
The flat dieline

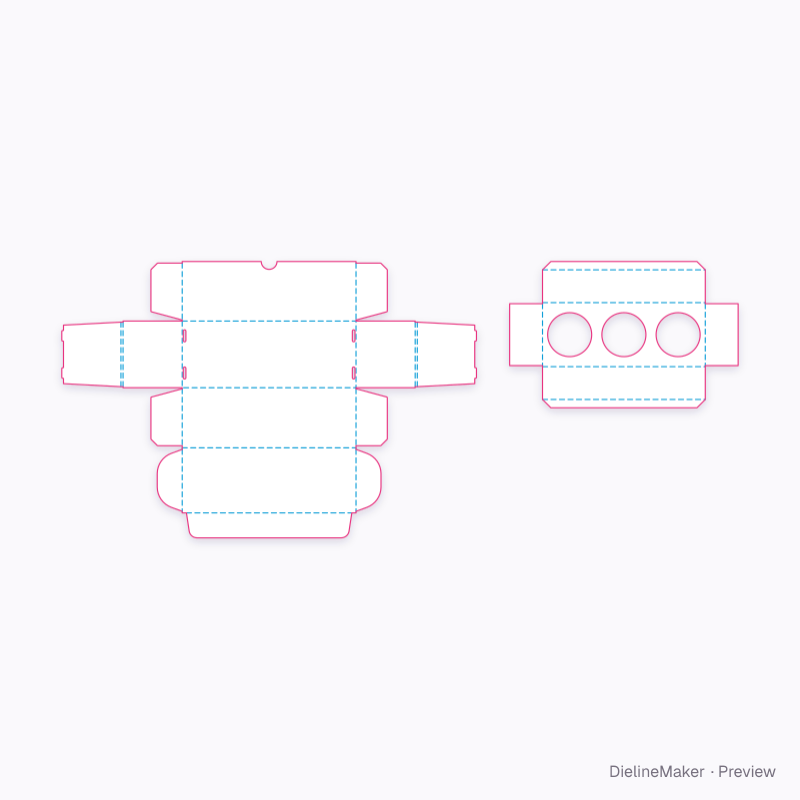

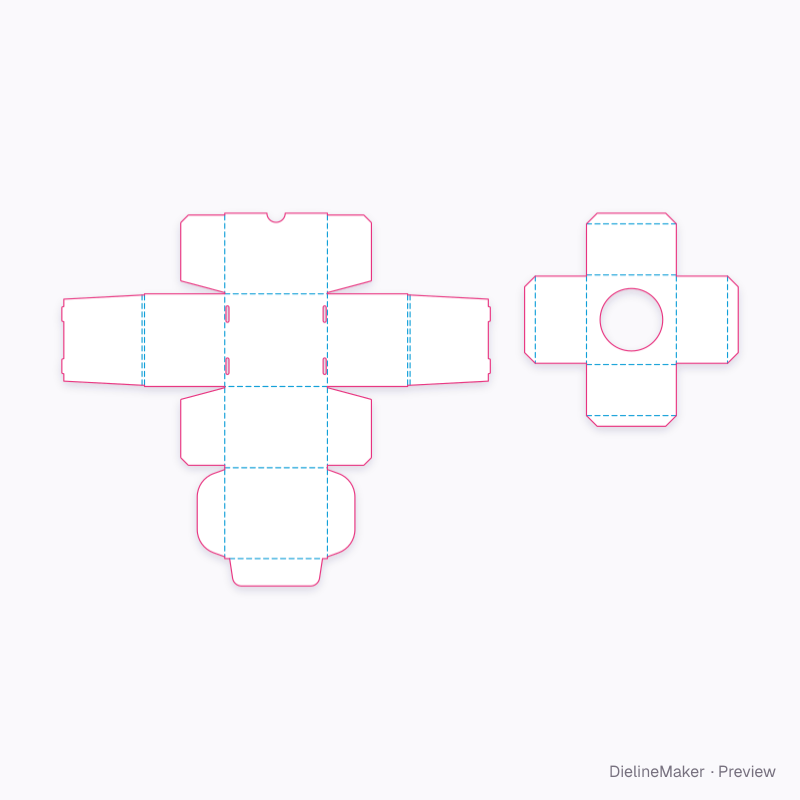

Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-MAILER-INSERT-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| BaseBox | 264.4 × 101.6 | – × W + T |
| FrontBox | 264.4 × 90.8 | – × H + T/2 |
| BackBox | 264.4 × 91.6 | – × H + T |
| Front ear ×2Box | 47.6 × 86.8 | – × H − 2T |
| Back ear ×2Box | 47.6 × 86.8 | – × H − 2T |
| Left endBox | 90 × 101.6 | H × W + T |
| Left end rollBox | 3.2 × 98.4 | – × W − T |
| Left end (inside)Box | 90 × 98.4 | H × W − T |
| Right endBox | 90 × 101.6 | H × W + T |
| Right end rollBox | 3.2 × 98.4 | – × W − T |
| Right end (inside)Box | 90 × 98.4 | H × W − T |
| LidBox | 264.4 × 99.2 | – × W − T/2 |
| Lid ear ×2Box | 38 × 94.4 | – |
| Front tuckBox | 251.6 × 38 | L + T × – |
| Pose rigInsert | 100 × 101.9 | – |
| Insert platformInsert | 100 × 101.9 | L − 2·fit × W − 2·fit |
6 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 16 options; the template and 3D preview follow each change.
- Cavities3 options
