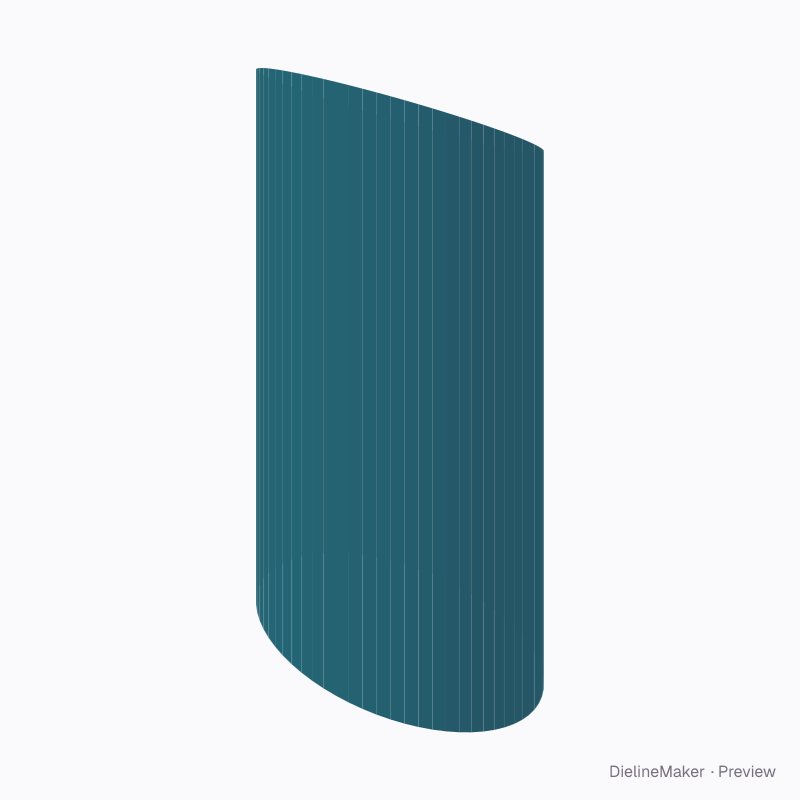

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureShapes
Twisted angled tube dieline
A rolled paper tube with independently angled end cuts and twist between their directions. The developed cuts are sampled sinusoids; the preview uses matching virtual facets. A ready-sized preset of the mitered paper cylinder — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
InsideØ 100 × 200 mm
OutsideØ 100.3 × 200 mm
Flat blank324.7 × 247.1 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Inside diameter 100 · Axis length 200 mm
- Size range
- Inside diameter 20–500 · Axis length 20–700 mm
- Manufacturing
- Ø 100.2 × 200 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.065 m² · about 8 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170SBS 300SBS 350Kraft 350SBS 18 pt
- Good for

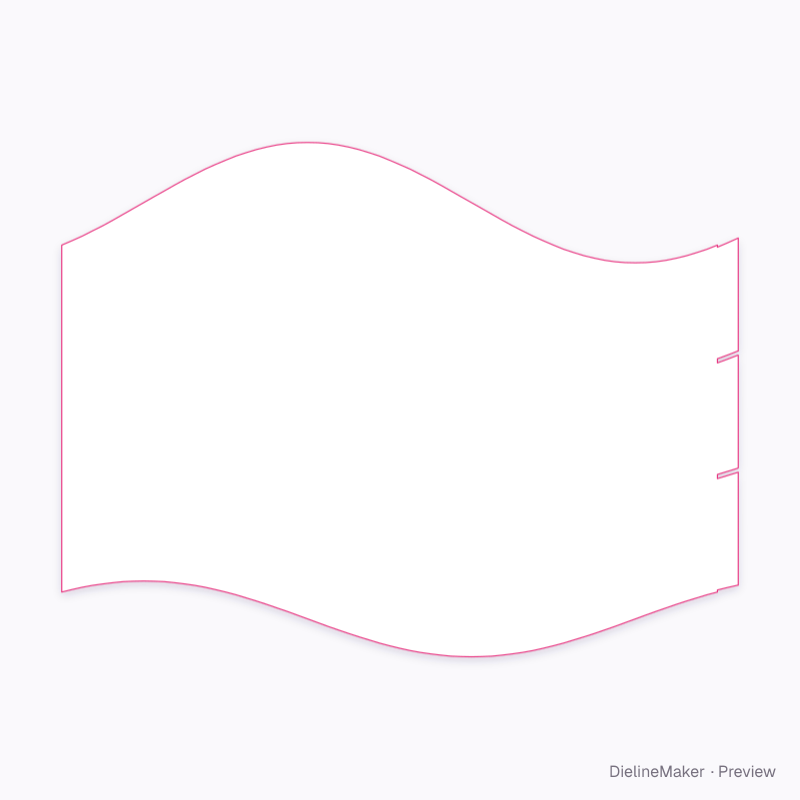

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Glue area
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Top miter angle°
- Bottom miter angle°
- End-plane twist°
- Glue flap sizemm
- Glue flap countcount
The mitered paper cylinder family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this twisted angled tube yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
