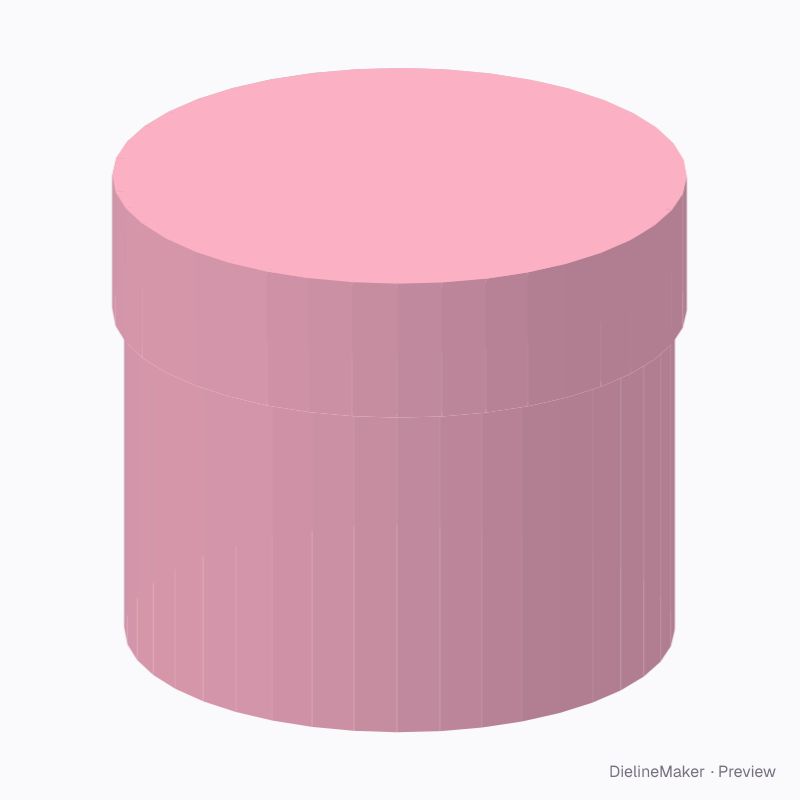

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureRigid
Ornament round keepsake box — Round rigid box dieline
Editable 125 × 110 mm starting point using round rigid box. Adjust the dimensions to your product before prototyping. A ready-sized preset of the round rigid box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
InsideØ 125 × 110 mm
OutsideØ 135 × 114.8 mm
Flat blank413.9 × 141.6 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Diameter 125 · Height 110 mm
- Size range
- Diameter 60–400 · Height 30–400 mm
- Manufacturing
- Ø 130 × 112 mm score to score · inside vs outside sizes
- Parts
- 8 parts — Base wrap, Base disc, Lid wrap, Lid disc, Base wall board, Base disc board, Lid wall board, Lid disc board
- Board area
- 0.195 m² · about 8 up on a 720 × 1020 mm sheet
- Default board
- Rigid greyboard 2 mm · 2 mm caliper
- Board options
- Rigid 2 mmRigid 1.5
- Good for

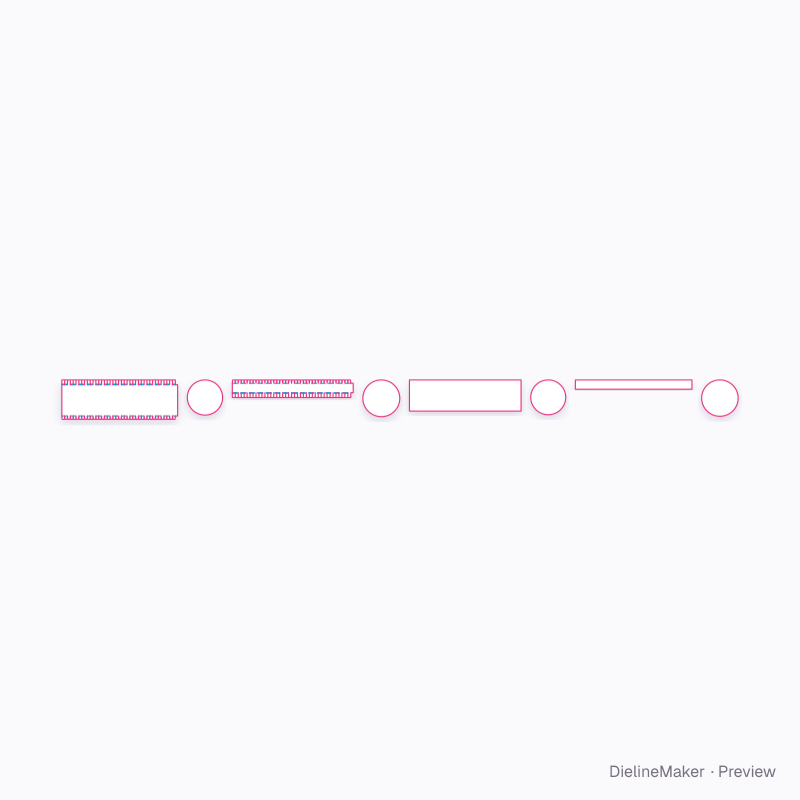

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (2 mm for Rigid greyboard 2 mm). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Back wall ×11Base wrap | 10.1 × 112.3 | – |
| Left wall ×9Base wrap | 10.1 × 112.3 | – |
| Front wall ×11Base wrap | 10.1 × 112.3 | – |
| Right wall ×9Base wrap | 10.1 × 112.3 | – |
| Glue lapBase wrap | 8.1 × 112.3 | – |
| Tab ×40Base wrap | 10.1 × 12 | – |
| Back wall rim ×11Base wrap | 10.1 × 2.3 | – |
| Back wall turn-in ×11Base wrap | 10.1 × 15 | – |
| Left wall rim ×9Base wrap | 10.1 × 2.3 | – |
| Left wall turn-in ×9Base wrap | 10.1 × 15 | – |
| Front wall rim ×11Base wrap | 10.1 × 2.3 | – |
| Front wall turn-in ×11Base wrap | 10.1 × 15 | – |
| Right wall rim ×9Base wrap | 10.1 × 2.3 | – |
| Right wall turn-in ×9Base wrap | 10.1 × 15 | – |
| Base discBase disc | 126.3 × 126.3 | – |
| Back wall ×11Lid wrap | 10.6 × 33.8 | – |
