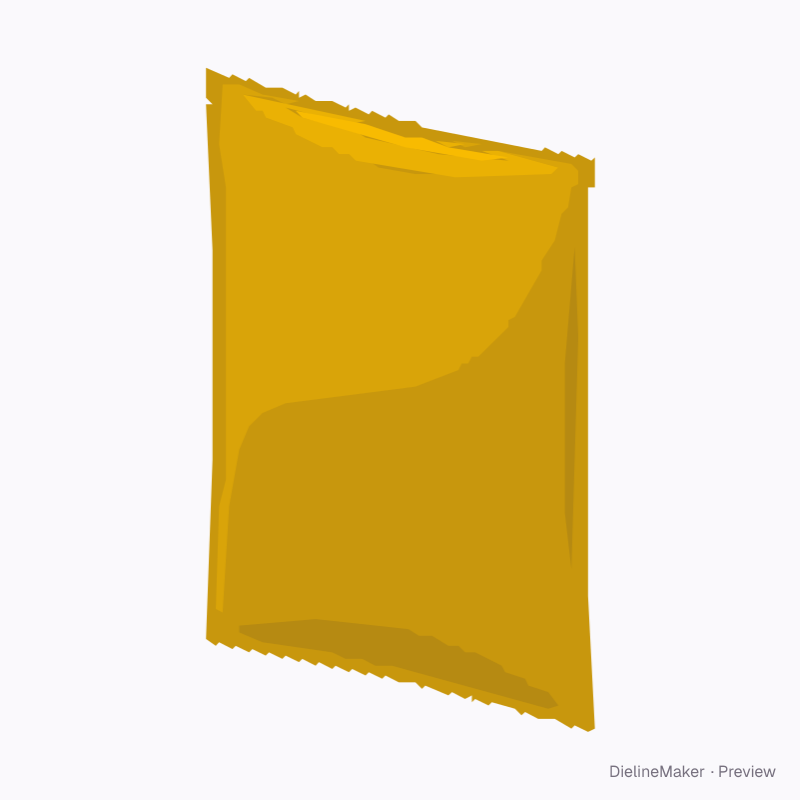

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureBags & pouches
Face-mask sachet dieline
140 × 190 mm starting dimensions. Adjust to your actual container or product. A ready-sized preset of the sachet — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside140 × 190 mm
Outside140 × 190 mm
Flat blank140 × 190 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Width 140 · Height 190 mm
- Size range
- Width 25–250 · Height 30–320 mm
- Manufacturing
- 140 × 190 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Front web, Back web
- Board area
- 0.053 m² · about 20 up on a 720 × 1020 mm sheet
- Default board
- Metallised PET / PE laminate · 0.09 mm caliper
- Board options
- Met PET/PEWhite PET/PEClear PET/PEKraft/PE
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 9 options; the template and 3D preview follow each change.
- Seal2 options
- Side sealsmm
- Top & bottom sealsmm
- Cut edge2 options
- Tear notcheson / off
- Notch from topmm
- Hang hole6 options
- Fill%
- Vacuum packedon / off
The sachet family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this face-mask sachet yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
