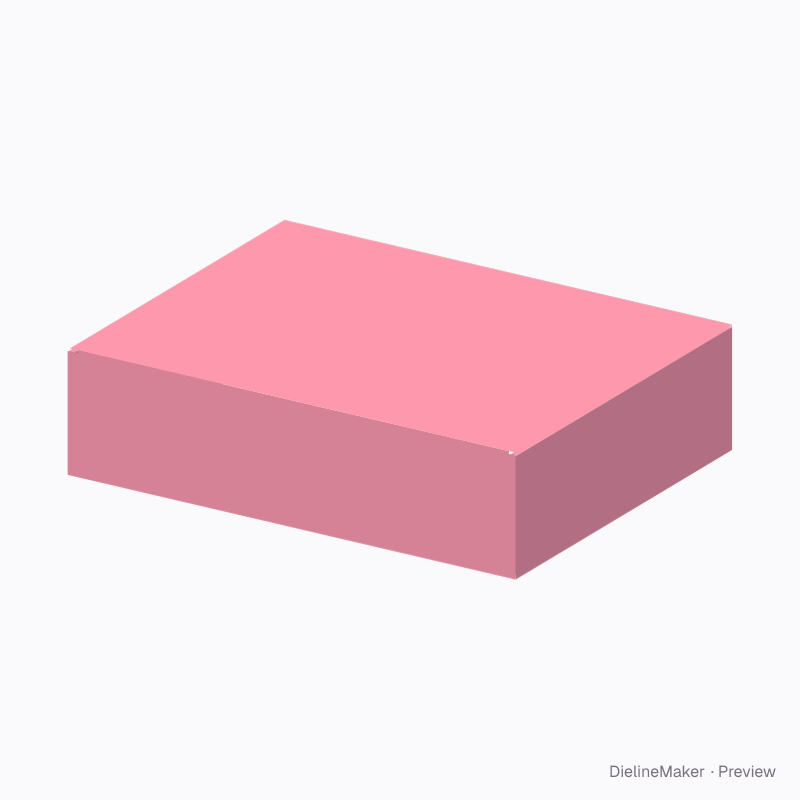

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0421Mailer
Bakery selection outer mailer — Self-locking box with lid dieline
Editable 330 × 260 × 85 mm starting point using self-locking box with lid. Adjust the dimensions to your product before prototyping. A ready-sized preset of the self-locking box with lid — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside330 × 260 × 85 mm
Outside339.6 × 263.2 × 88.2 mm
Flat blank684.4 × 743.2 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0421
- Inside size
- Length 330 · Width 260 · Height 85 mm
- Size range
- Length 150–600 · Width 80–450 · Height 20–150 mm
- Manufacturing
- 338 × 261.6 × 86.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.362 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- E-flute KE-flute WB-fluteF-flute
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0421 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 338 × 261.6 | – × W + T |
| Front | 338 × 85.8 | – × H + T/2 |
| Back | 338 × 86.6 | – × H + T |
| Front ear ×2 | 85 × 81.8 | H × H − 2T |
| Back ear ×2 | 85 × 81.8 | H × H − 2T |
| Left end | 85 × 261.6 | H × W + T |
| Left end roll | 3.2 × 258.4 | – × W − T |
| Left end (inside) | 85 × 258.4 | H × W − T |
| Right end | 85 × 261.6 | H × W + T |
| Right end roll | 3.2 × 258.4 | – × W − T |
| Right end (inside) | 85 × 258.4 | H × W − T |
| Lid | 338 × 259.2 | – × W − T/2 |
| Front tuck | 325.2 × 50 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Front tuck depthmm
- Lock tonguescount
- Thumb notchon / off
- Notch radiusmm
- Lid lock3 options
