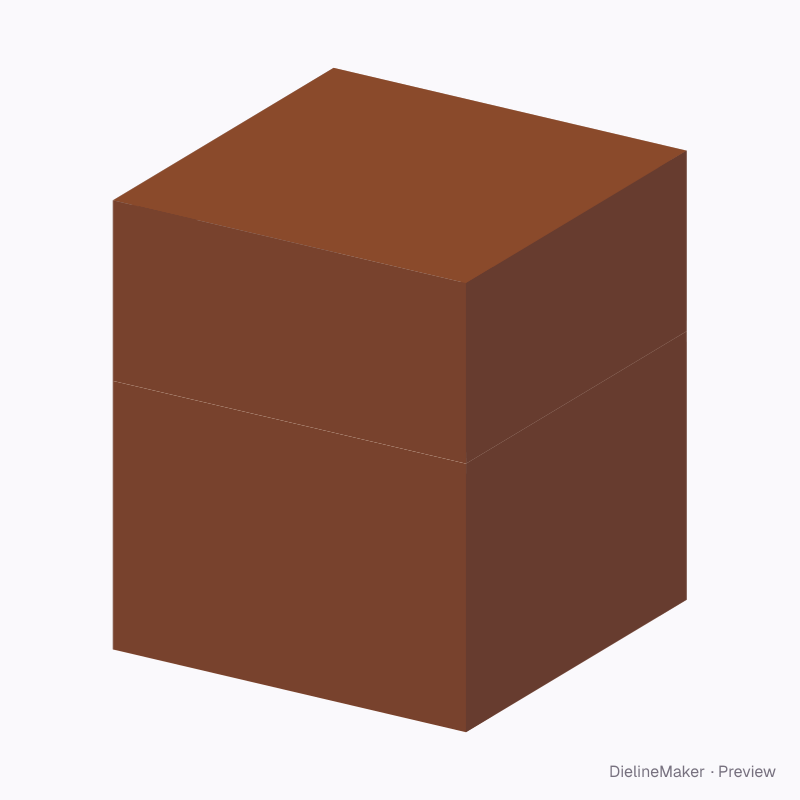

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureRigid
Candle shoulder box — Shoulder & neck box dieline
Editable 110 × 110 × 135 mm starting point using shoulder & neck box. Adjust the dimensions to your product before prototyping. A ready-sized preset of the shoulder & neck box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside110 × 110 × 135 mm
Outside120 × 120 × 139.3 mm
Flat blank469.3 × 151.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Length 110 · Width 110 · Height 135 mm
- Size range
- Length 40–400 · Width 40–300 · Height 40–350 mm
- Manufacturing
- 115 × 115 × 137 mm score to score · inside vs outside sizes
- Parts
- 6 parts — Base wrap, Neck wrap, Lid wrap, Base board, Neck board, Lid board
- Board area
- 0.342 m² · about 8 up on a 720 × 1020 mm sheet
- Default board
- Rigid greyboard 2 mm · 2 mm caliper
- Board options
- Rigid 2 mmRigid 1.5
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Kiss cut
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (2 mm for Rigid greyboard 2 mm). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| BottomBase wrap | 120 × 120 | L + 2Tb + p × W + 2Tb + p |
| Front wallBase wrap | 120 × 83.3 | – × H + Tb + p |
| Front rimBase wrap | 120 × 2.3 | – |
| Front turn-inBase wrap | 115.3 × 15 | – |
| Corner ear ×4Base wrap | 15 × 80 | – |
| Back wallBase wrap | 120 × 83.3 | – × H + Tb + p |
| Back rimBase wrap | 120 × 2.3 | – |
| Back turn-inBase wrap | 115.3 × 15 | – |
| Left wallBase wrap | 83.3 × 120 | – × H + Tb + p |
| Left rimBase wrap | 2.3 × 120 | – |
| Left turn-inBase wrap | 15 × 115.3 | – |
| Right wallBase wrap | 83.3 × 120 | – × H + Tb + p |
| Right rimBase wrap | 2.3 × 120 | – |
| Right turn-inBase wrap | 15 × 115.3 | – |
| Neck leftNeck wrap | 114.3 × 134.5 | – |
| Neck frontNeck wrap | 114.3 × 134.5 | – |
37 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Lid opening2 options
- Lid depthmm
