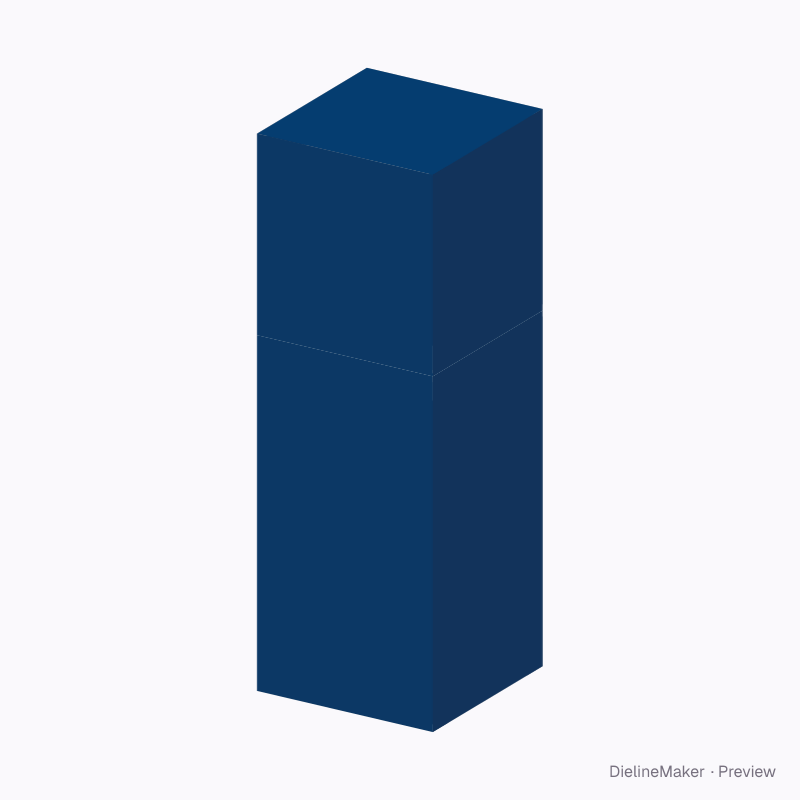

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureRigid
Whisky bottle shoulder box dieline
Tall neck box for a 700 ml bottle of whisky or gin. A ready-sized preset of the shoulder & neck box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside95 × 95 × 300 mm
Outside105 × 105 × 304.3 mm
Flat blank409.3 × 316.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Length 95 · Width 95 · Height 300 mm
- Size range
- Length 40–400 · Width 40–300 · Height 40–350 mm
- Manufacturing
- 100 × 100 × 302 mm score to score · inside vs outside sizes
- Parts
- 6 parts — Base wrap, Neck wrap, Lid wrap, Base board, Neck board, Lid board
- Board area
- 0.572 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- Rigid greyboard 2 mm · 2 mm caliper
- Board options
- Rigid 2 mmRigid 1.5
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Kiss cut
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (2 mm for Rigid greyboard 2 mm). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| BottomBase wrap | 105 × 105 | L + 2Tb + p × W + 2Tb + p |
| Front wallBase wrap | 105 × 194.3 | – × H + Tb + p |
| Front rimBase wrap | 105 × 2.3 | – |
| Front turn-inBase wrap | 100.3 × 15 | – |
| Corner ear ×4Base wrap | 15 × 191 | – |
| Back wallBase wrap | 105 × 194.3 | – × H + Tb + p |
| Back rimBase wrap | 105 × 2.3 | – |
| Back turn-inBase wrap | 100.3 × 15 | – |
| Left wallBase wrap | 194.3 × 105 | – × H + Tb + p |
| Left rimBase wrap | 2.3 × 105 | – |
| Left turn-inBase wrap | 15 × 100.3 | – |
| Right wallBase wrap | 194.3 × 105 | – × H + Tb + p |
| Right rimBase wrap | 2.3 × 105 | – |
| Right turn-inBase wrap | 15 × 100.3 | – |
| Neck leftNeck wrap | 99.3 × 299.5 | – |
| Neck frontNeck wrap | 99.3 × 299.5 | – |
37 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Lid opening2 options
- Lid depthmm
The shoulder & neck box family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this whisky bottle shoulder box yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
