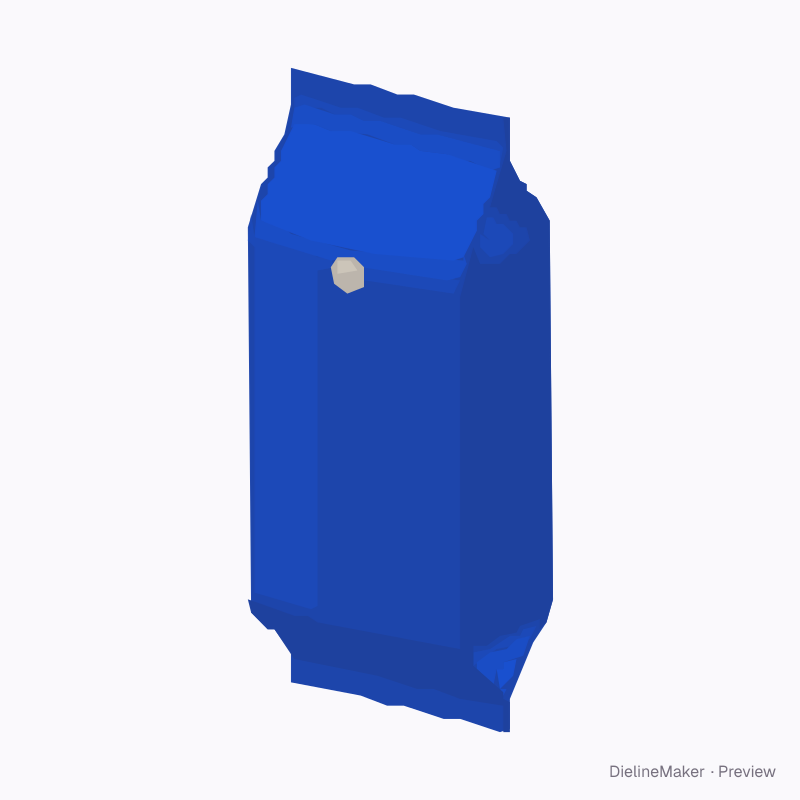

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureBags & pouches
Coffee bag 1 kg (side gusset) dieline
Fin-seal side-gusset bag for 1 kg of beans, with a degassing valve. A ready-sized preset of the side-gusset bag — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside140 × 360 mm
Outside140 × 360 mm
Flat blank480 × 360 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Front width 140 · Height 360 mm
- Size range
- Front width 50–400 · Height 100–700 mm
- Manufacturing
- 140 × 360 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.173 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- Kraft paper / PE laminate · 0.12 mm caliper
- Board options
- Kraft/PEMet PET/PEWhite PET/PEClear PET/PE
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.12 mm for Kraft paper / PE laminate). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Fin seal (outer) | 10 × 360 | – × H |
| Back (left side) | 70 × 360 | – × H |
| Left gusset | 90 × 360 | – × H |
| Front | 140 × 360 | L × H |
| Right gusset | 90 × 360 | – × H |
| Back (right side) | 70 × 360 | – × H |
| Fin seal (inner) | 10 × 360 | – × H |
