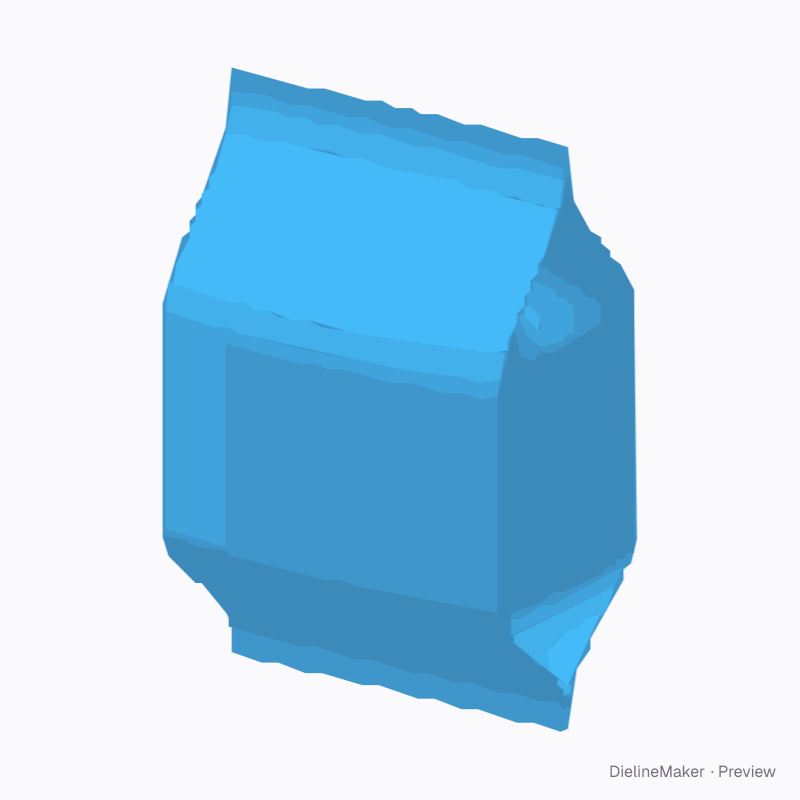

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureBags & pouches
Toddler diaper pack 36 count dieline
Larger upright gusseted film pack for 36 size 6 toddler diapers, with the same cloud-and-sky starter design. A ready-sized preset of the side-gusset bag — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside265 × 420 mm
Outside265 × 420 mm
Flat blank900 × 420 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Front width 265 · Height 420 mm
- Size range
- Front width 50–400 · Height 100–700 mm
- Manufacturing
- 265 × 420 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.378 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- White PET / PE laminate · 0.09 mm caliper
- Board options
- Kraft/PEMet PET/PEWhite PET/PEClear PET/PE
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.09 mm for White PET / PE laminate). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Fin seal (outer) | 10 × 420 | – × H |
| Back (left side) | 132.5 × 420 | – × H |
| Left gusset | 175 × 420 | – × H |
| Front | 265 × 420 | L × H |
| Right gusset | 175 × 420 | – × H |
| Back (right side) | 132.5 × 420 | – × H |
| Fin seal (inner) | 10 × 420 | – × H |
Adjustable in the editor
Beyond the size and board, this structure exposes 9 options; the template and 3D preview follow each change.
- Top construction2 options
- Side gussetmm
- Fin sealmm
- Corners2 options
- Top sealmm
- Bottom sealmm
- Degassing valveon / off
- Tear notcheson / off
- Fill%
The side-gusset bag family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Before you choose this template
Size, materials, downloads and production checks.
Will the toddler diaper pack 36 count dieline fit my product?
Larger upright gusseted film pack for 36 size 6 toddler diapers, with the same cloud-and-sky starter design. The default dimensions in inside-size mode are Front width 265 mm, Height 420 mm. Measure your product and any inserts or wrapping, then set the template size. Check a physical sample with your contents before ordering production.
Can I change the size and design?
Yes. The supported ranges are Front width 50–400 mm, Height 100–700 mm. At the default settings, the editor also exposes Top construction, Side gusset, Fin seal, Corners, Top seal, Bottom seal and 3 more options. Add your own artwork and preview the result in 3D. The template geometry is rebuilt when its dimensions change.
Which materials can I choose?
The default is White PET / PE laminate (0.09 mm caliper). This structure allows Kraft paper / PE laminate, Metallised PET / PE laminate, White PET / PE laminate, Clear PET / PE laminate. Select the stock before checking fit, and ask your converter to confirm the grade and caliper for the intended product.
Which files can I download?
The template page offers dimensioned PDF, Illustrator (.ai via script), layered SVG and DXF cutting and crease geometry. After adding artwork in the editor, you can export a print-ready PDF and review the bleed, safe areas and dieline layers with your printer.
Is this dieline free?
Browsing the previews is free, and you can customize the template after signing in with Google. Template and print-file downloads require a Pro or Business plan. The Free plan allows one eligible download every 8 hours; free mockups, renders and videos carry a watermark. See the pricing page for the current plans.
Can I send the download straight to production?
Use the file as a starting point for a printer or converter review. Confirm the finished dimensions, stock, crease and cutting setup, assembly, bleed and artwork, then approve a physical sample. The 3D preview does not test strength, transit performance or suitability for particular contents.
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this toddler diaper pack 36 count yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
