The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA A55.20.01.03Tuck end
Gaming controller carton — Snap-lock bottom dieline
Editable 180 × 90 × 155 mm starting point using snap-lock bottom. Adjust the dimensions to your product before prototyping. A ready-sized preset of the snap-lock bottom — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside180 × 90 × 155 mm
Outside181 × 91 × 156 mm
Flat blank553.5 × 318.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA A55.20.01.03
- Inside size
- Length 180 · Width 90 · Height 155 mm
- Size range
- Length 30–400 · Width 20–300 · Height 30–500 mm
- Manufacturing
- 180.5 × 90.5 × 155.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.136 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400GD2 350Kraft 350Black 350F-fluteE-flute WE-flute KSBS 18 pt
- Good for

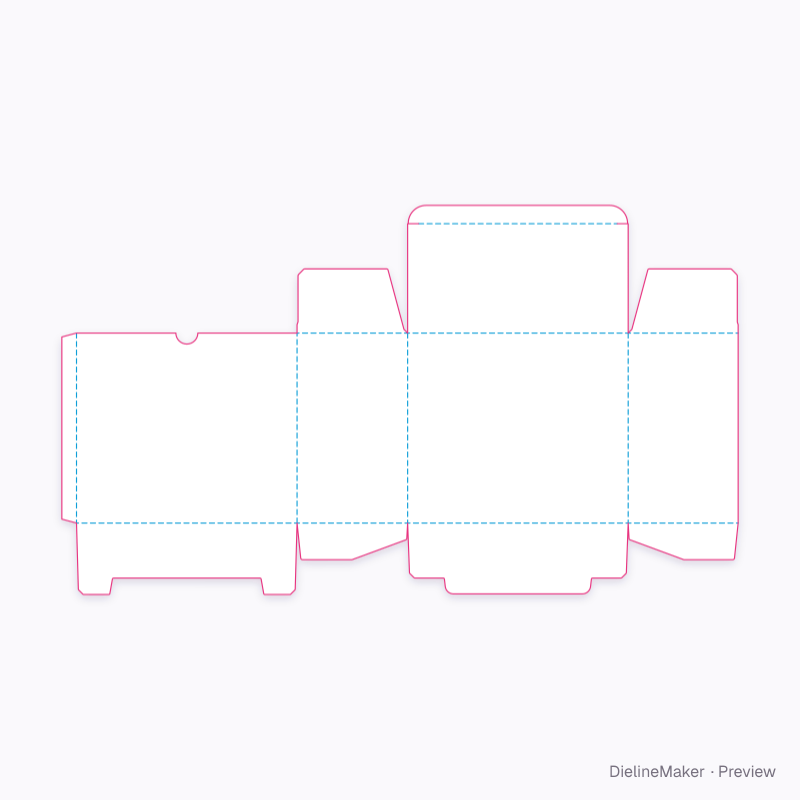

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA A55.20.01.03 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 180.5 × 155.5 | L + T × H + T |
| Left side | 90.5 × 155.5 | W + T × H + T |
| Back | 180.5 × 155.5 | L + T × H + T |
| Right side | 90 × 155.5 | W × H + T |
| Glue flap | 12 × 155.5 | – × H + T |
| Top closure | 180.5 × 89.5 | L + T × W − T |
| Top tuck | 179.5 × 15 | L − T × – |
| Top dust flap | 90.5 × 52.5 | W + T × – |
| Top dust flap | 90 × 52.5 | W × – |
| Snap end | 90.5 × 30 | W + T × – |
| Snap end | 90 × 30 | W × – |
| Snap bottom | 180.5 × 58.5 | L + T × – |
| Snap tuck | 180.5 × 58 | L + T × – |
Adjustable in the editor
