ECMA A55.20.01.03Tuck end
Travel cup carton — Snap-lock bottom dieline
Editable 105 × 105 × 220 mm starting point using snap-lock bottom. Adjust the dimensions to your product before prototyping. A ready-sized preset of the snap-lock bottom — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside105 × 105 × 220 mm
Outside106 × 106 × 221 mm
Flat blank433.5 × 408.3 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA A55.20.01.03
- Inside size
- Length 105 · Width 105 · Height 220 mm
- Size range
- Length 30–400 · Width 20–300 · Height 30–500 mm
- Manufacturing
- 105.5 × 105.5 × 220.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.136 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400GD2 350Kraft 350Black 350F-fluteE-flute WE-flute KSBS 18 pt
- Good for
The flat dieline

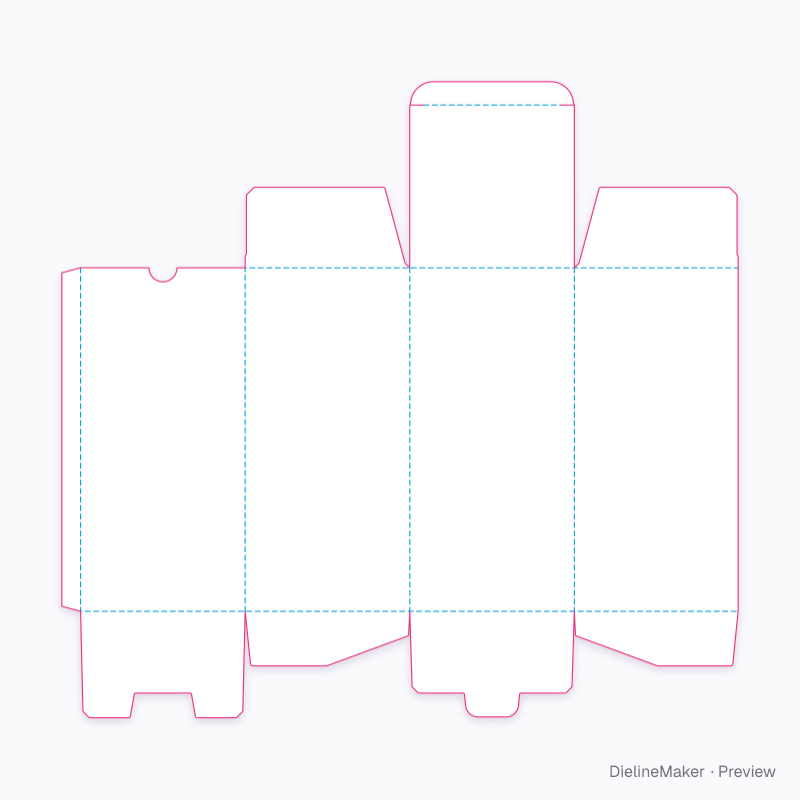

Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA A55.20.01.03 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
