ECMA F10.82.00.00Tuck end
Telescopic two-tube carton dieline
Height-adjustable carton from two tuck-end tubes, e.g. for products sold in several heights. A ready-sized preset of the telescopic tube carton — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside120 × 60 × 140 mm
Outside121 × 61 × 143 mm
Flat blank373.5 × 215 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA F10.82.00.00
- Inside size
- Length (A) 120 · Depth (B) 60 · Outer height (H) 140 mm
- Size range
- Length (A) 30–400 · Depth (B) 20–300 · Outer height (H) 30–500 mm
- Manufacturing
- 120.5 × 60.5 × 140.5 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Outer tube (bottom), Inner tube (top)
- Board area
- 0.129 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400GD2 350Kraft 350SBS 300SBS 18 pt
- Good for

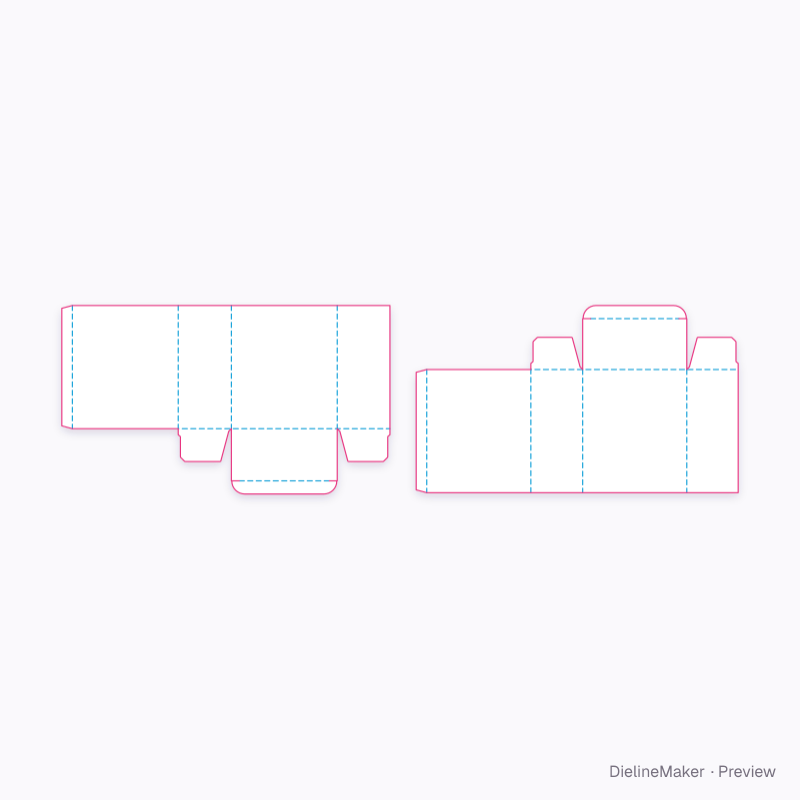

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA F10.82.00.00 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Back (A)Outer tube (bottom) | 120.5 × 140.5 | L + T × H + T |
| Left side (B)Outer tube (bottom) | 60.5 × 140.5 | W + T × H + T |
| Front (A)Outer tube (bottom) | 120.5 × 140.5 | L + T × H + T |
| Right side (B)Outer tube (bottom) | 60 × 140.5 | W × H + T |
| Glue flapOuter tube (bottom) | 12 × 140.5 | – × H + T |
| Bottom closureOuter tube (bottom) | 120.5 × 59.5 | L + T × W − T |
| TuckOuter tube (bottom) | 119.5 × 15 | L − T × – |
| Bottom dust flapOuter tube (bottom) | 60.5 × 37.5 | W + T × – |
| Bottom dust flapOuter tube (bottom) | 60 × 37.5 | W × – |
| Pose rigInner tube (top) | 100 × 38.1 | – |
| Back (A)Inner tube (top) | 100 × 102.4 | – |
| Left side (B)Inner tube (top) | 59 × 140.5 | W − 2T × H + T |
| Front (A)Inner tube (top) | 118.5 × 140.5 | – × H + T |
| Right side (B)Inner tube (top) | 58.5 × 140.5 | – × H + T |
| Glue flapInner tube (top) | 12 × 140.5 | – × H + T |
| Top closureInner tube (top) | 118.5 × 58 | – |
3 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Inner tube height (h)mm
- Pulled out bymm
- Tuck depthmm
- Slit lockon / off
