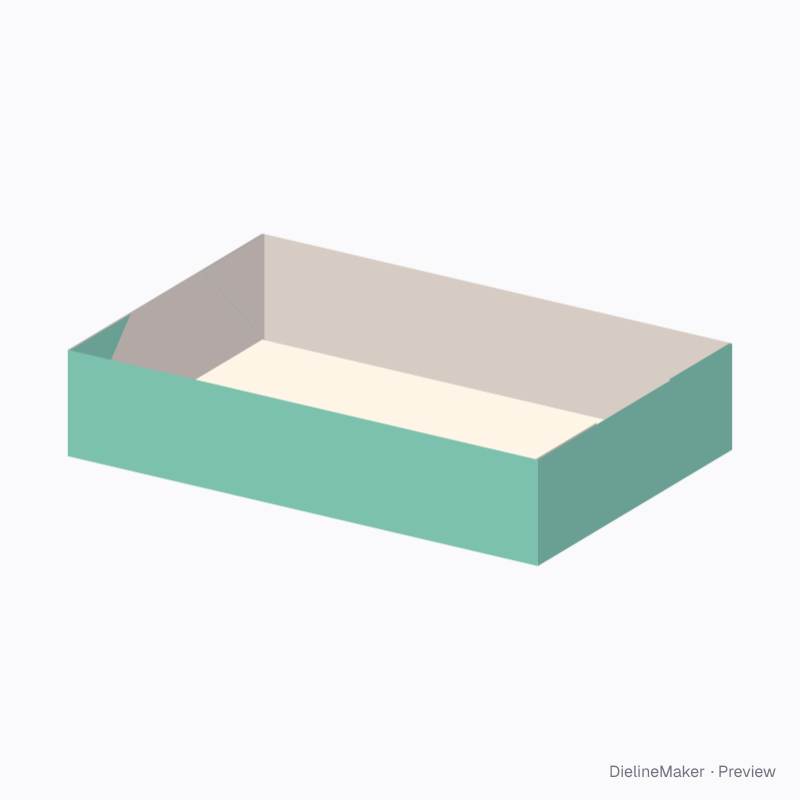

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA B40.21.00.00Trays & lids
Wrapped biscuit tray — Tray with glued corners dieline
Editable 240 × 160 × 50 mm starting point using tray with glued corners. Adjust the dimensions to your product before prototyping. A ready-sized preset of the tray with glued corners — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside240 × 160 × 50 mm
Outside243 × 161 × 50.5 mm
Flat blank343 × 261 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA B40.21.00.00
- Inside size
- Length 240 · Width 160 · Height 50 mm
- Size range
- Length 30–600 · Width 25–450 · Height 8–200 mm
- Manufacturing
- 242.5 × 160.5 × 50.3 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.090 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350Kraft 350SBS 300FBB 400GD2 350Black 350F-fluteE-flute WE-flute KSBS 18 pt
- Good for

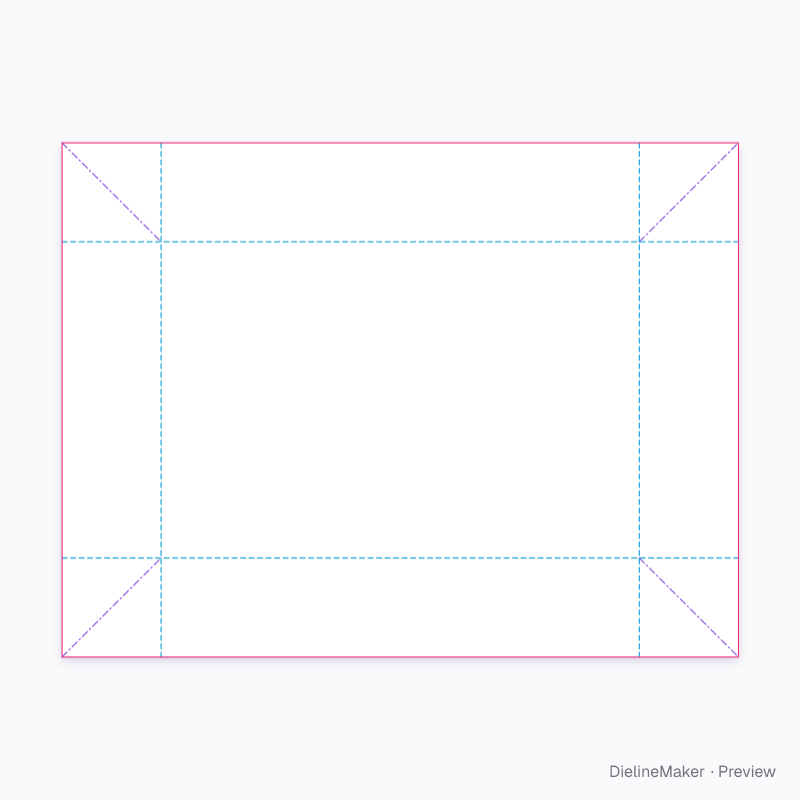

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA B40.21.00.00 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 242.5 × 160.5 | – × W + T |
| Front | 242.5 × 50.3 | – × H + T/2 |
| Back | 242.5 × 50.3 | – × H + T/2 |
| Left end | 50.3 × 160.5 | H + T/2 × W + T |
| Right end | 50.3 × 160.5 | H + T/2 × W + T |
| Corner web ×4 | 50.3 × 50.3 | H + T/2 × H + T/2 |
| Corner web ×4 | 71.1 × 35.5 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
