FEFCO 0215Shipping
Shallow product carton — Tuck-top lock-bottom box dieline
Editable 320 × 220 × 100 mm starting point using tuck-top lock-bottom box. Adjust the dimensions to your product before prototyping. A ready-sized preset of the tuck-top lock-bottom box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside320 × 220 × 100 mm
Outside323.2 × 223.2 × 106.4 mm
Flat blank1104.8 × 491 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0215
- Inside size
- Length 320 · Width 220 · Height 100 mm
- Size range
- Length 80–800 · Width 50–600 · Height 50–800 mm
- Manufacturing
- 321.6 × 221.6 × 103.2 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.347 m²
- Default board
- E-flute white / kraft · 1.6 mm caliper
- Board options
- E-flute WE-flute KB-fluteF-fluteEB double
- Good for

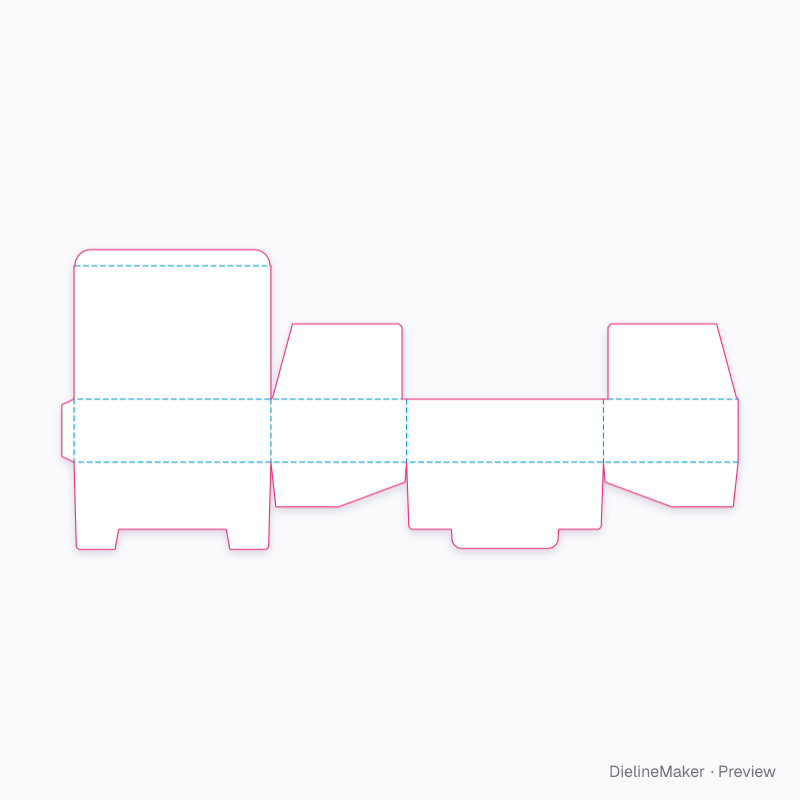

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0215 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute white / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 321.6 × 103.2 | L + T × H + 2T |
| Left side | 221.6 × 103.2 | W + T × H + 2T |
| Back | 321.6 × 103.2 | L + T × H + 2T |
| Right side | 220 × 103.2 | W × H + 2T |
| Glue flap | 20 × 103.2 | – × H + 2T |
| Snap end | 221.6 × 73.3 | W + T × – |
| Snap end | 220 × 73.3 | W × – |
| Snap bottom | 321.6 × 143 | L + T × – |
| Snap tuck | 321.6 × 141.4 | L + T × – |
| Top closure | 321.6 × 218.4 | L + T × W − T |
| Top tuck | 318.4 × 26.4 | L − T × – |
| Top dust flap | 214.2 × 123.2 | – |
| Top dust flap | 212.6 × 123.2 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Tuck depthmm
- Thumb notchon / off
- Tongue widthmm
- Tongue heightmm
