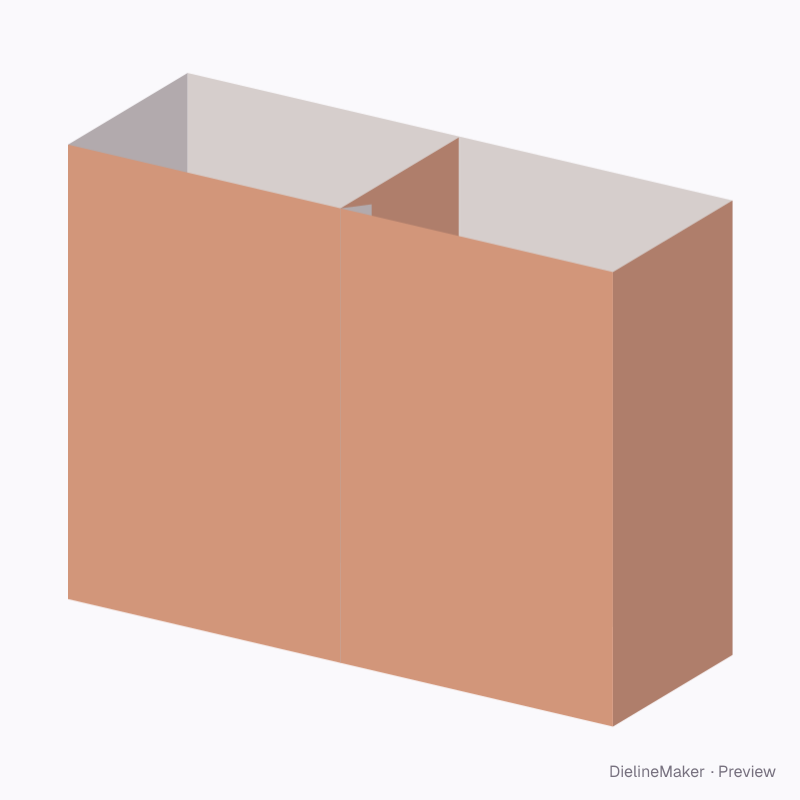

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA F10.11.00.00Tuck end
Double sleeve (two cells) dieline
Open-ended twin sleeve that holds two products side by side. A ready-sized preset of the twin-compartment carton — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside130 × 45 × 100 mm
Outside131 × 46 × 100 mm
Flat blank411.5 × 100 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA F10.11.00.00
- Inside size
- Length (both cells) 130 · Depth (A) 45 · Height 100 mm
- Size range
- Length (both cells) 40–500 · Depth (A) 20–300 · Height 30–500 mm
- Manufacturing
- 131 × 46 × 100 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.041 m² · about 12 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400GD2 350Kraft 350SBS 300F-fluteSBS 18 pt
- Good for

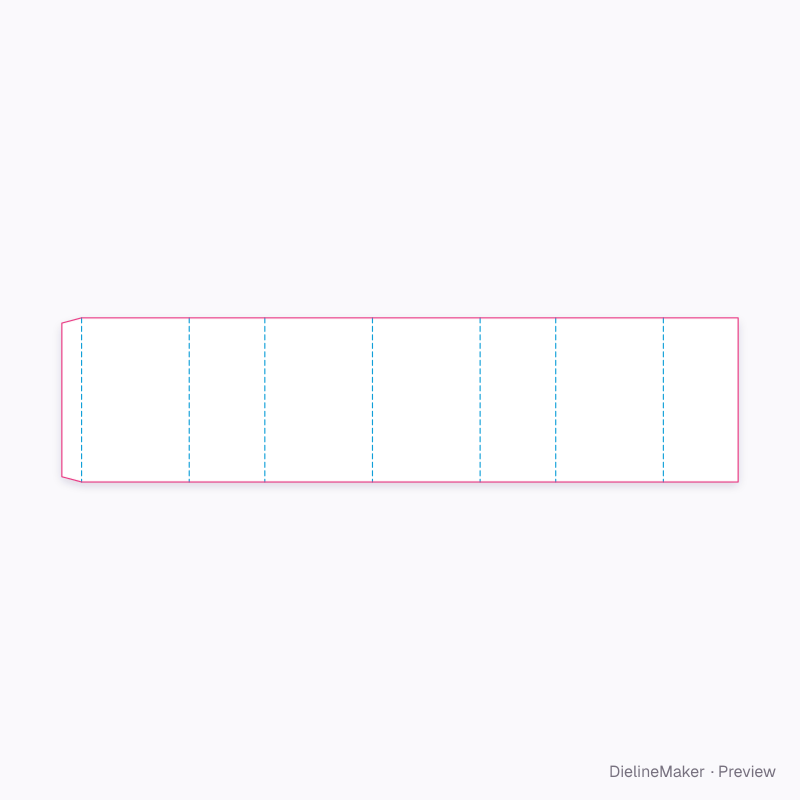

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA F10.11.00.00 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front (cell 1) | 65.5 × 100 | – × H |
| End wall (cell 1) | 46 × 100 | W + 2T × H |
| Back (cell 1) | 65.5 × 100 | – × H |
| Back (cell 2) | 65.5 × 100 | – × H |
| End wall (cell 2) | 46 × 100 | W + 2T × H |
| Front (cell 2) | 65.5 × 100 | – × H |
| Divider | 45.5 × 100 | W + T × H |
| Glue flap | 12 × 100 | – × H |
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
- Construction4 options

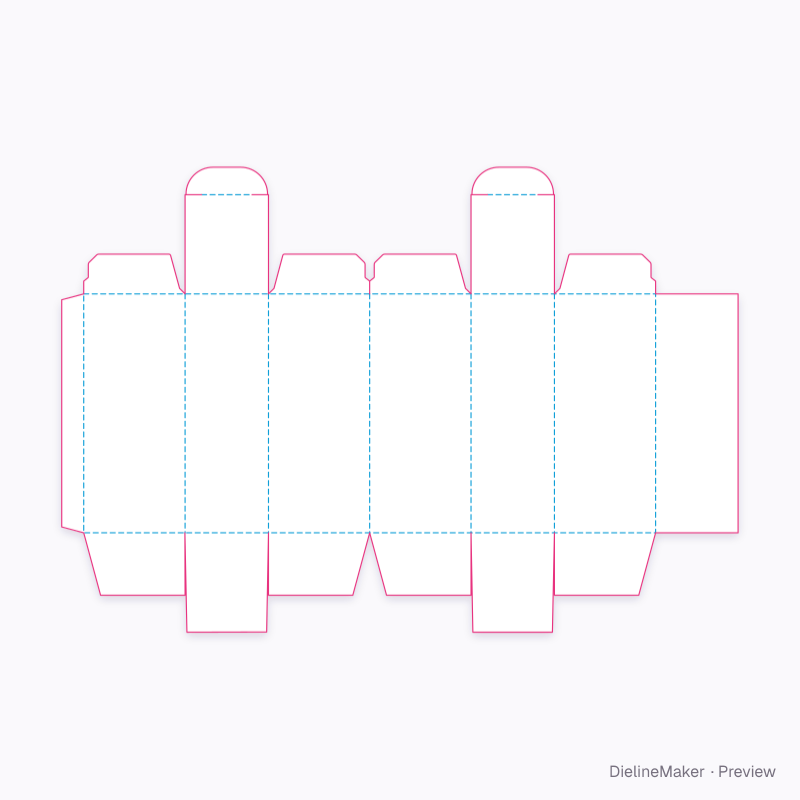

The twin-compartment carton family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset

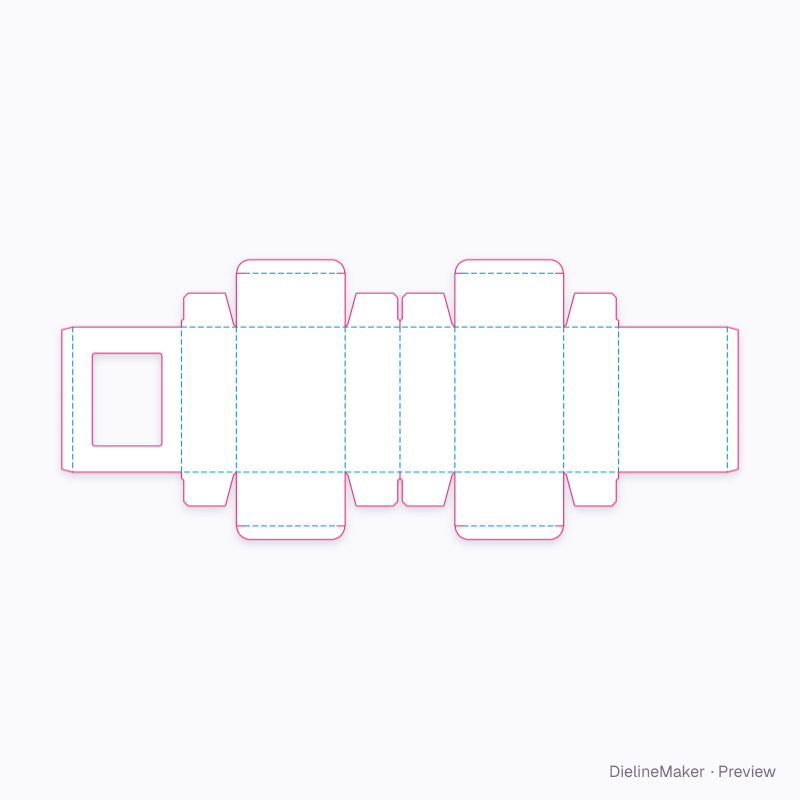

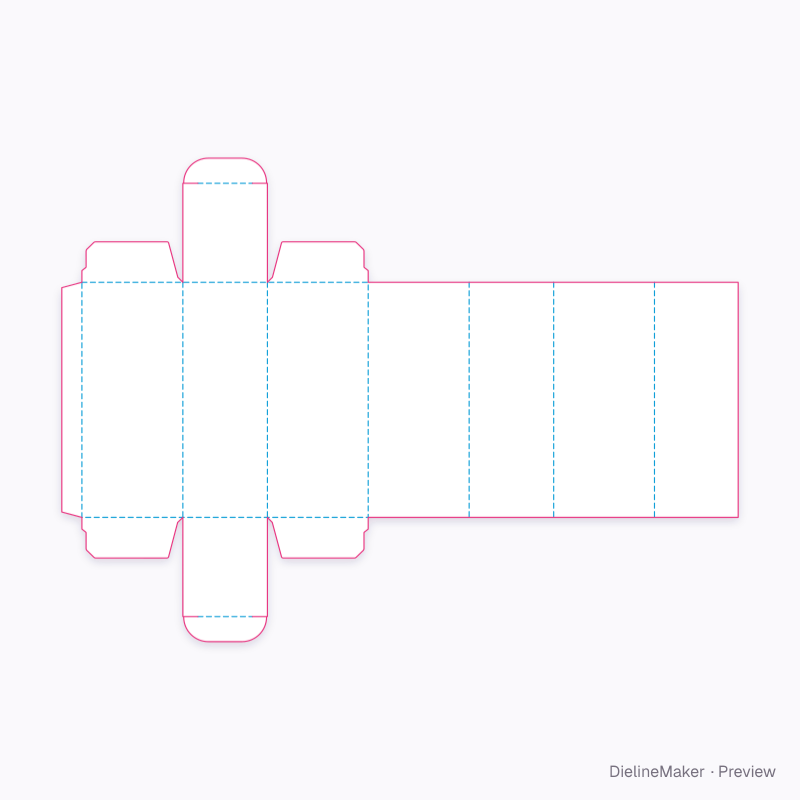

Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this double sleeve (two cells) yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
