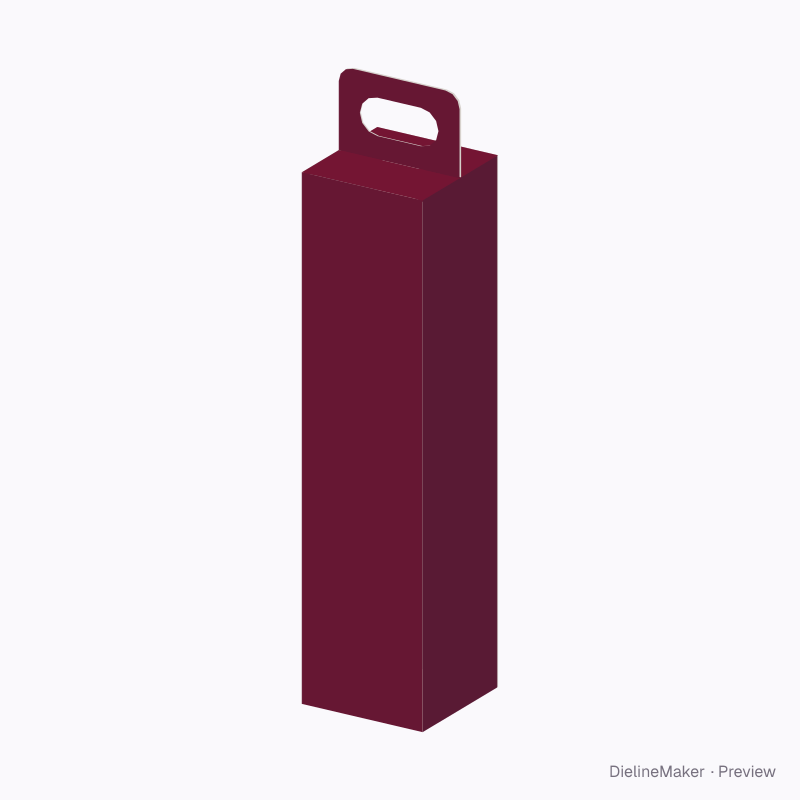

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureCarriers
Tall wine bottle carrier — Wine carrier dieline
Editable 85 × 85 × 345 mm starting point using wine carrier. Adjust the dimensions to your product before prototyping. A ready-sized preset of the wine carrier — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside85 × 85 × 345 mm
Outside86.8 × 86.8 × 346.8 mm
Flat blank362.7 × 495.4 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Length 85 · Width 85 · Height 345 mm
- Size range
- Length 50–200 · Width 50–200 · Height 120–450 mm
- Manufacturing
- 85.9 × 85.9 × 345.9 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.160 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- F-flute micro corrugated · 0.9 mm caliper
- Board options
- F-fluteKraft 350SBS 350FBB 400Black 350E-flute KE-flute WSBS 18 pt
- Good for

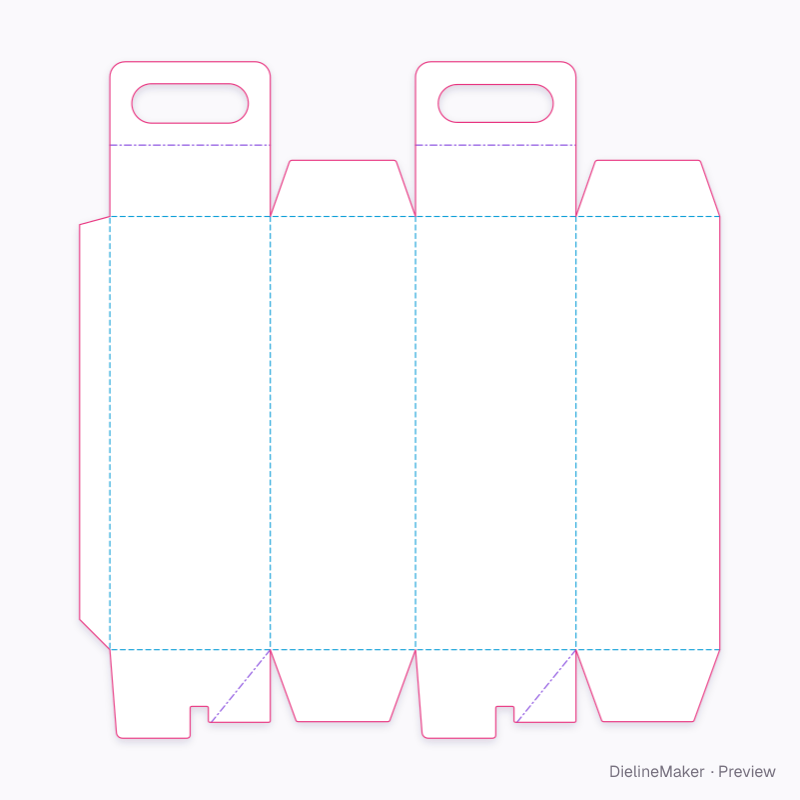

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.9 mm for F-flute micro corrugated). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 85.9 × 345.9 | L + T × H + T |
| Left side | 85.9 × 345.9 | W + T × H + T |
| Back | 85.9 × 345.9 | L + T × H + T |
| Right side | 85 × 345.9 | W × H + T |
| Glue flap | 20 × 345.9 | – × H + T |
| Crash-lock flap (back) | 85.9 × 52.4 | – |
| Glued web ×2 | 23.6 × 51.8 | – |
| Bottom side flap | 85.9 × 41.9 | – |
| Crash-lock flap (front) | 85.9 × 52.4 | – |
| Bottom side flap | 85 × 41.9 | – |
| Back lid | 85.9 × 42.1 | L + T × W/2 − T/2 |
| Front lid | 85.9 × 42.1 | L + T × W/2 − T/2 |
| Back handle | 85.9 × 55 | L + T × handle |
| Front handle | 85.9 × 55 | L + T × handle |
| Top dust flap | 85.9 × 30.1 | – |
| Top dust flap | 85 × 30.1 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Label windowon / off
- Handle heightmm
- Hole widthmm
- Hook reachmm
- Hook notchmm
