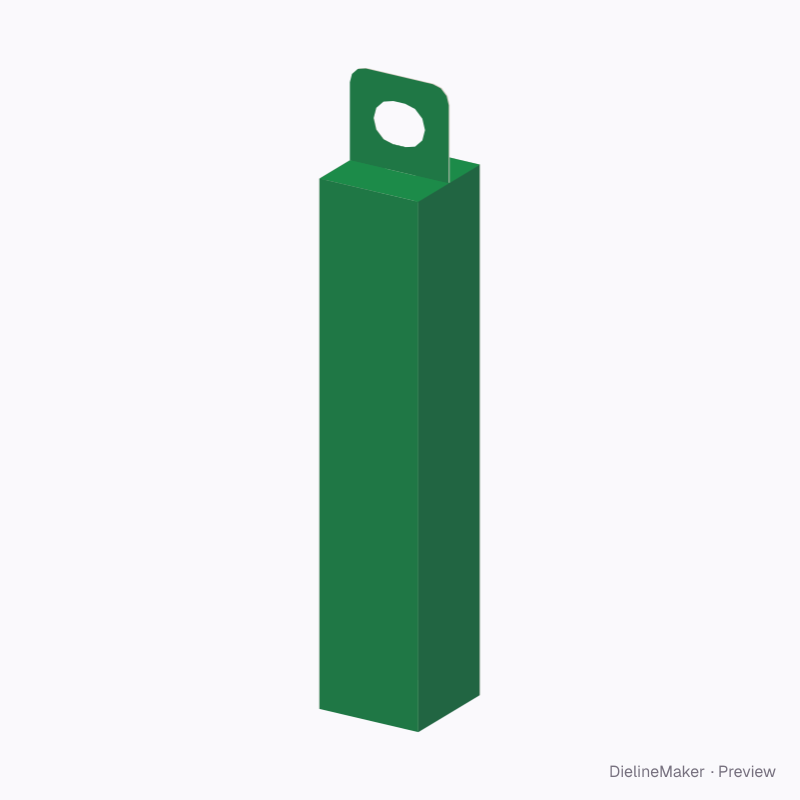

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureCarriers
Olive oil bottle carrier dieline
Slim carrier for a 500 ml square olive oil bottle. A ready-sized preset of the wine carrier — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside62 × 62 × 305 mm
Outside62.9 × 62.9 × 305.9 mm
Flat blank261.4 × 429.7 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Length 62 · Width 62 · Height 305 mm
- Size range
- Length 50–200 · Width 50–200 · Height 120–450 mm
- Manufacturing
- 62.5 × 62.5 × 305.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.100 m² · about 3 up on a 720 × 1020 mm sheet
- Default board
- Kraft board 350 g · 0.46 mm caliper
- Board options
- F-fluteKraft 350SBS 350FBB 400Black 350E-flute KE-flute WSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Perforation
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.46 mm for Kraft board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 62.5 × 305.5 | L + T × H + T |
| Left side | 62.5 × 305.5 | W + T × H + T |
| Back | 62.5 × 305.5 | L + T × H + T |
| Right side | 62 × 305.5 | W × H + T |
| Glue flap | 12 × 305.5 | – × H + T |
| Crash-lock flap (back) | 62.5 × 38.4 | – |
| Glued web ×2 | 17.2 × 37.8 | – |
| Bottom side flap | 62.5 × 30.2 | – |
| Crash-lock flap (front) | 62.5 × 38.4 | – |
| Bottom side flap | 62 × 30.2 | – |
| Back lid | 62.5 × 30.8 | L + T × W/2 − T/2 |
| Front lid | 62.5 × 30.8 | L + T × W/2 − T/2 |
| Back handle | 62.5 × 55 | L + T × handle |
| Front handle | 62.5 × 55 | L + T × handle |
| Top dust flap | 62.5 × 21.9 | – |
| Top dust flap | 62 × 21.9 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 9 options; the template and 3D preview follow each change.
- Label windowon / off
- Window2 options
- Window widthmm
- Window heightmm
- Window offsetmm
- Handle heightmm
- Hole widthmm
- Hook reachmm
- Hook notchmm
