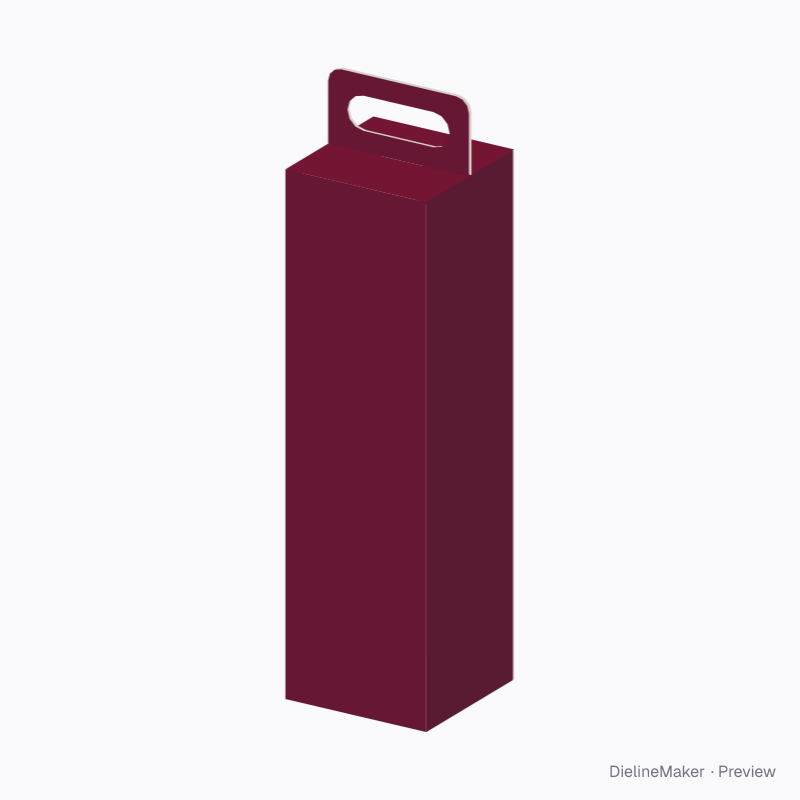

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureCarriers
Magnum carrier, 1.5 L dieline
E-flute carrier for a magnum of wine or champagne. A ready-sized preset of the wine carrier — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside108 × 108 × 375 mm
Outside111.2 × 111.2 × 378.2 mm
Flat blank456.8 × 551.4 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Length 108 · Width 108 · Height 375 mm
- Size range
- Length 50–200 · Width 50–200 · Height 120–450 mm
- Manufacturing
- 109.6 × 109.6 × 376.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.225 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- F-fluteKraft 350SBS 350FBB 400Black 350E-flute KE-flute WSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 109.6 × 376.6 | L + T × H + T |
| Left side | 109.6 × 376.6 | W + T × H + T |
| Back | 109.6 × 376.6 | L + T × H + T |
| Right side | 108 × 376.6 | W × H + T |
| Glue flap | 20 × 376.6 | – × H + T |
| Crash-lock flap (back) | 109.6 × 66.6 | – |
| Glued web ×2 | 32.3 × 68.3 | – |
| Bottom side flap | 109.6 × 53.8 | – |
| Crash-lock flap (front) | 109.6 × 66.6 | – |
| Bottom side flap | 108 × 53.8 | – |
| Back lid | 109.6 × 53.2 | L + T × W/2 − T/2 |
| Front lid | 109.6 × 53.2 | L + T × W/2 − T/2 |
| Back handle | 109.6 × 55 | L + T × handle |
| Front handle | 109.6 × 55 | L + T × handle |
| Top dust flap | 109.6 × 38.4 | – |
| Top dust flap | 108 × 38.4 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Label windowon / off
- Handle heightmm
- Hole widthmm
- Hook reachmm
- Hook notchmm
The wine carrier family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this magnum carrier, 1.5 l yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
