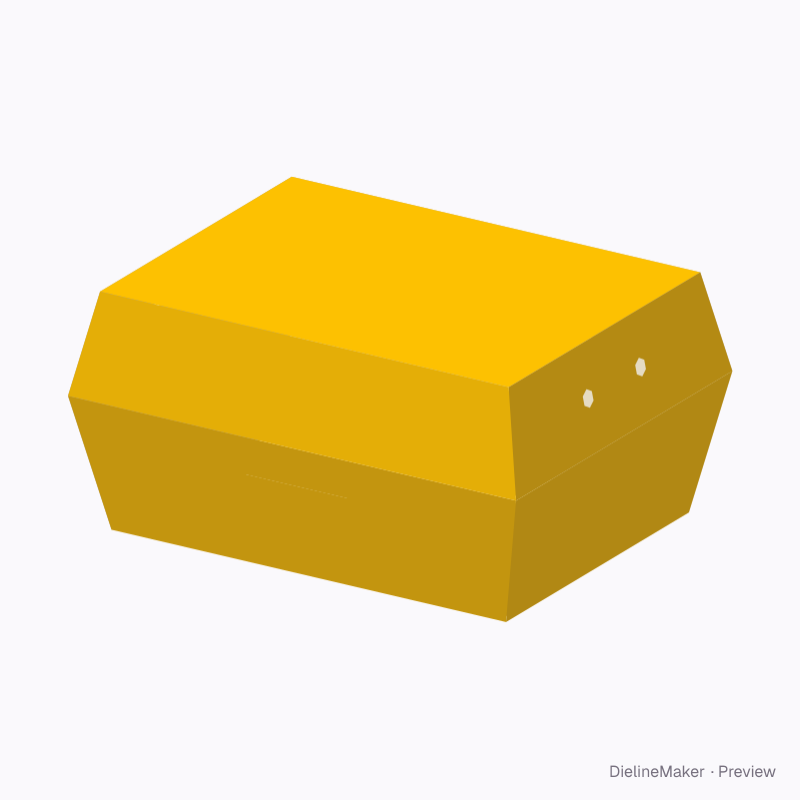

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureFood
Loaded fries clamshell — Burger clamshell dieline
Editable 175 × 135 × 85 mm starting point using burger clamshell. Adjust the dimensions to your product before prototyping. A ready-sized preset of the burger clamshell — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside175 × 135 × 85 mm
Outside175.9 × 135.9 × 85.9 mm
Flat blank256 × 430.7 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Length 175 · Width 135 · Height 85 mm
- Size range
- Length 60–260 · Width 60–220 · Height 36–150 mm
- Manufacturing
- 175.4 × 135.4 × 85.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.095 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- Food SBS, PE-coated 300 g · 0.45 mm caliper
- Board options
- Food SBS PEFood kraft PESBS 350Kraft 350SBS 300F-fluteE-flute KE-flute WSBS 18 pt
- Good for

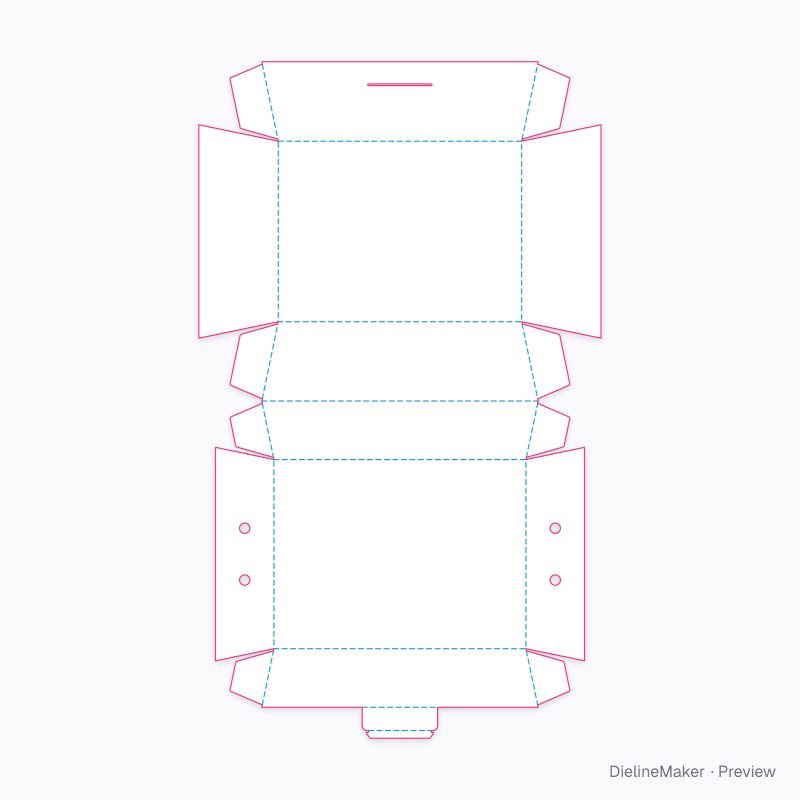

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.45 mm for Food SBS, PE-coated 300 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 154.9 × 114.9 | – |
| Front | 154.9 × 50.6 | – |
| Back | 154.9 × 50.6 | – |
| Left side | 50.6 × 114.9 | – |
| Right side | 50.6 × 114.9 | – |
| Lid back | 175.9 × 37.3 | L + 2T × – |
| Lid top | 160.4 × 120.4 | – |
| Lid front | 160.4 × 37.3 | – |
| Lid left | 37.3 × 120.4 | – |
| Lid right | 37.3 × 120.4 | – |
| Glue ear ×4 | 22 × 48.7 | – |
| Glue ear ×4 | 22 × 35.2 | – |
| Lock flap | 48 × 14.8 | – |
| Lock tongue | 40 × 4.9 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 7 options; the template and 3D preview follow each change.
- Wall taper°
- Lid depthmm
- Closure3 options
- Tongue widthmm
- Slit depthmm
- Vents per sidecount
- Lid windowon / off
