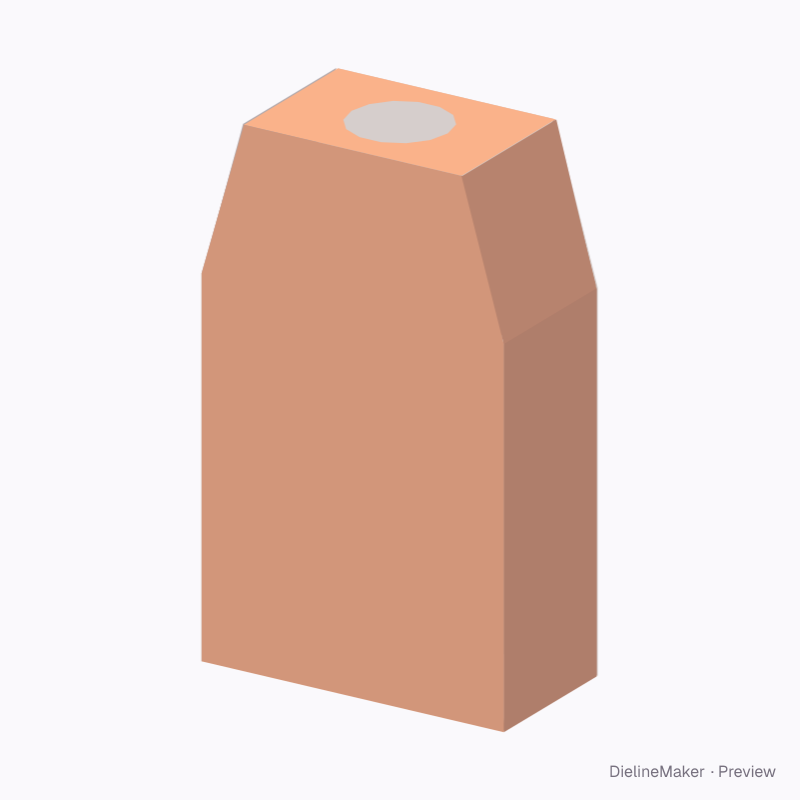

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA F60.03.00.00Tuck end
Bevelled-shoulder dispenser carton dieline
Glued double side walls that lean in at the shoulder to a top with a round dispensing hole, e.g. wipes or straws. A ready-sized preset of the double-end flat carton — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside120 × 60 × 200 mm
Outside122 × 61 × 201 mm
Flat blank241 × 542 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA F60.03.00.00
- Inside size
- Length (A) 120 · Depth (B) 60 · Height 200 mm
- Size range
- Length (A) 40–600 · Depth (B) 20–400 · Height 20–400 mm
- Manufacturing
- 121.5 × 60.5 × 200.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.115 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400GD2 350Kraft 350E-flute WE-flute KSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA F60.03.00.00 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 121.5 × 200.5 | L + 3T × H + T |
| Top | 87.5 × 60.5 | L + 3T − 2·inset × W + T |
| Back | 87.5 × 200.5 | L + 3T × H + T |
| Bottom | 121.5 × 60.5 | L + 3T × W + T |
| Tuck flap | 119 × 20 | L − 2T × – |
| Inner side flap ×2 | 59.8 × 142.4 | W − T/2 × – |
| Outer side wall ×2 | 59.8 × 142.4 | W − T/2 × – |
| Leaning side panel ×2 | 59.5 × 57.6 | W − T × – |
| Corner gusset ×4 | 16.3 × 60.6 | – |
| Top end flap ×2 | 60.1 × 60 | – × W |
| Bottom dust flap ×2 | 37.5 × 59.5 | – × W − T |
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Construction5 options
- Tuck depthmm
- Bevel heightmm
- Bevel insetmm
- Top hole diametermm
The double-end flat carton family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this bevelled-shoulder dispenser carton yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
