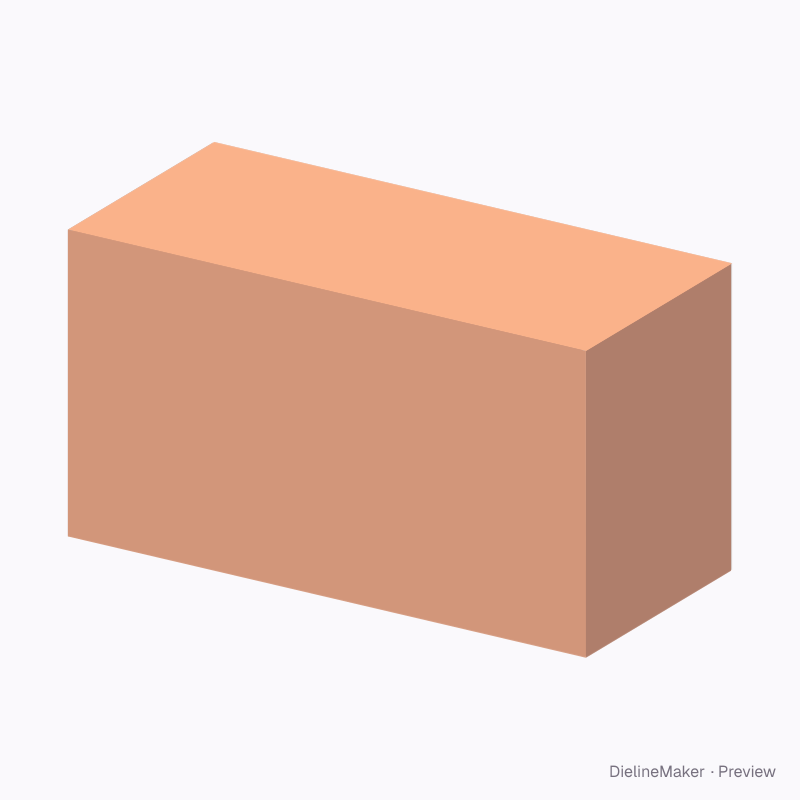

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA F60.06.00.00Tuck end
Locked-end carton with tuck lid dieline
Glue-free: the outer end flaps lock into slots at the back corners; tuck-in lid. A ready-sized preset of the double-end flat carton — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside220 × 100 × 120 mm
Outside223 × 101 × 121 mm
Flat blank434 × 517.3 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA F60.06.00.00
- Inside size
- Length (A) 220 · Depth (B) 100 · Height 120 mm
- Size range
- Length (A) 40–600 · Depth (B) 20–400 · Height 20–400 mm
- Manufacturing
- 222.5 × 100.5 × 120.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.180 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400GD2 350Kraft 350E-flute WE-flute KSBS 18 pt
- Good for

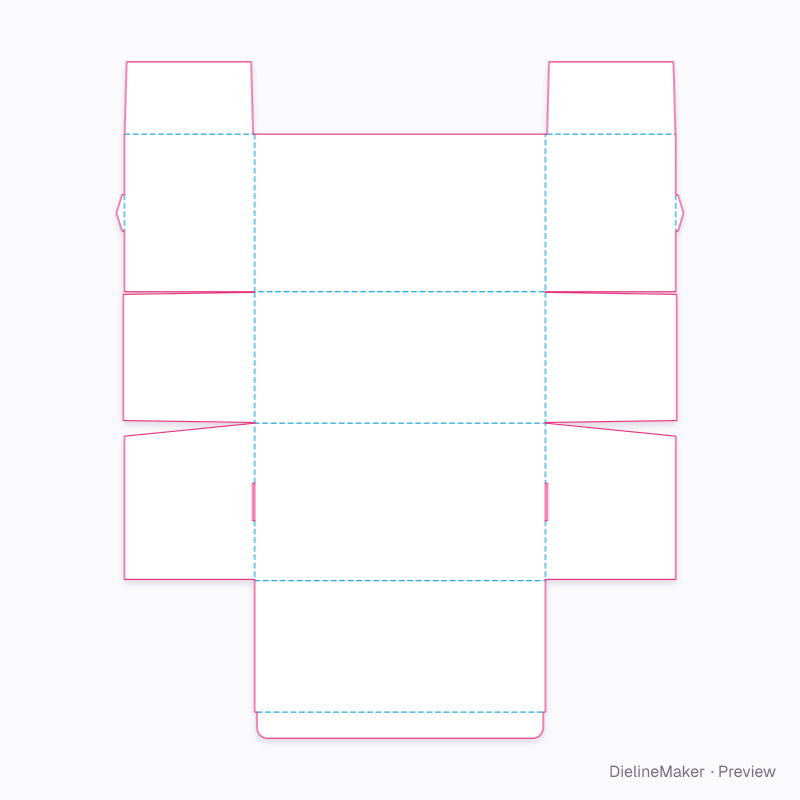

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA F60.06.00.00 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 222.5 × 100.5 | L + 5T × W + T |
| Front wall | 222.5 × 120.5 | L + 5T × H + T |
| Back wall | 222.5 × 120.5 | L + 5T × H + T |
| Lid | 222.5 × 100.5 | L + 5T × W + T |
| Tuck flap | 219 × 20 | L − 2T × – |
| Base end flap ×2 | 100.5 × 99.5 | W + T × W − T |
| Back end flap ×2 | 99.8 × 119.5 | W − T/2 × H − T |
| Outer end flap ×2 | 99.8 × 120.5 | W − T/2 × H + T |
| Lock tab ×2 | 6 × 27.7 | – |
| Top end flap ×2 | 98.3 × 55.3 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Construction5 options
- Top end flapsmm
- Tuck depthmm
