DM-DRAWER-BOX-01Trays & lids
Standard matchbox 53 × 36 × 16 dieline

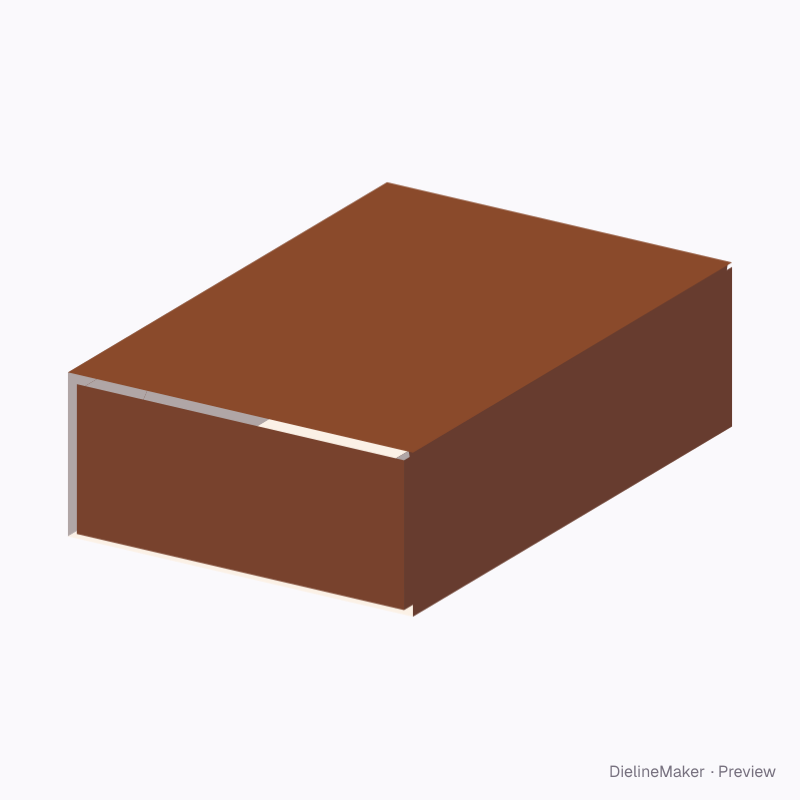

Safety-match box, 53 × 36 × 16 mm outside, with the tray sliding out along its length. A ready-sized preset of the drawer box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside31.6 × 52.2 × 14 mm
Outside36 × 53 × 16 mm
Flat blank113.8 × 52.6 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-DRAWER-BOX-01
- Inside size
- Width 31.6 · Depth 52.2 · Height 14 mm
- Size range
- Width 30–500 · Depth 30–500 · Height 10–200 mm
- Manufacturing
- 33.7 × 52.6 × 14.2 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Sleeve, Tray
- Board area
- 0.011 m² · about 96 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 300 g · 0.42 mm caliper
- Board options
- SBS 350FBB 400Kraft 350Black 350SBS 300GD2 350F-fluteE-flute WSBS 18 pt
- Good for

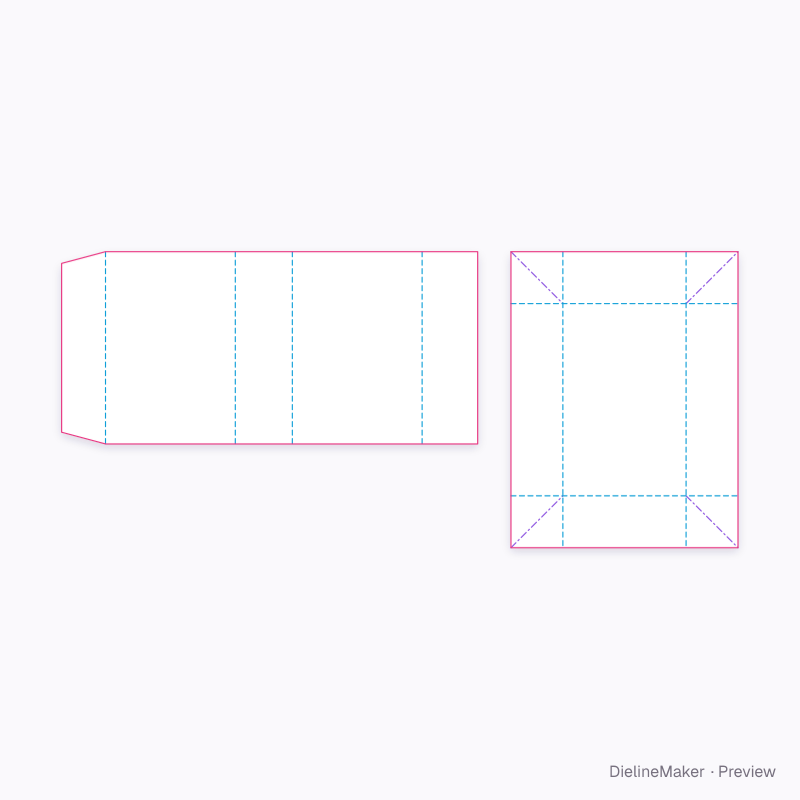

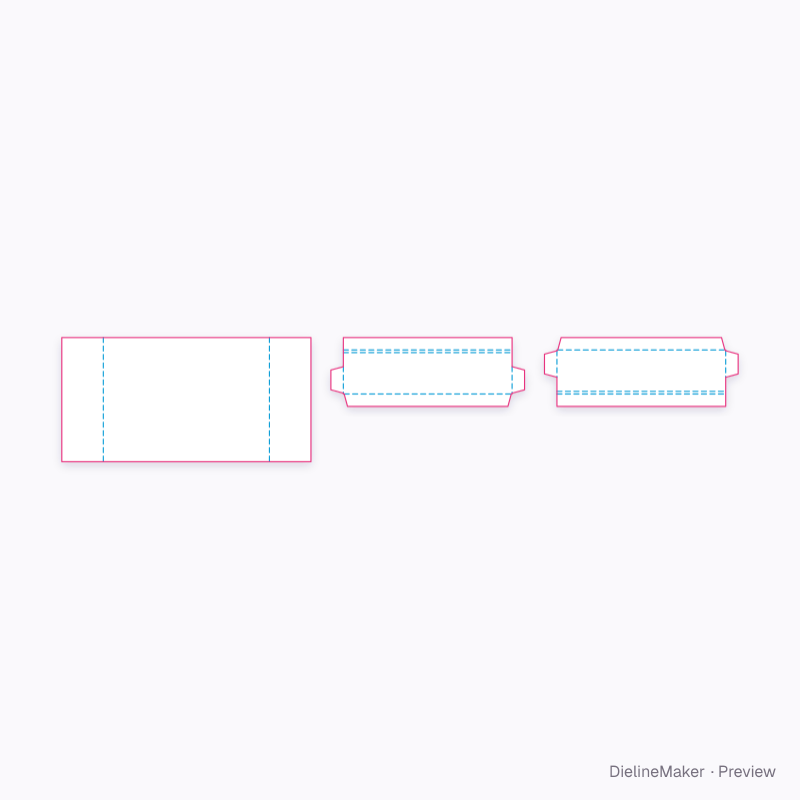

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-DRAWER-BOX-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.42 mm for SBS white board 300 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| BottomSleeve | 35.5 × 52.6 | L + 7T + 2c × W + T |
| Left sideSleeve | 15.5 × 52.6 | H + 2.5T + c × W + T |
| TopSleeve | 35.5 × 52.6 | L + 7T + 2c × W + T |
| Right sideSleeve | 15.1 × 52.6 | H + 1.5T + c × W + T |
| Glue flapSleeve | 12 × 52.6 | – × W + T |
| Pose rigTray | 100 × 40 | – |
| BaseTray | 100 × 40 | – |
| FrontTray | 33.7 × 14.2 | – × H + T/2 |
| BackTray | 33.7 × 14.2 | – × H + T/2 |
| Left endTray | 14.2 × 52.6 | H + T/2 × W + T |
| Right endTray | 14.2 × 52.6 | H + T/2 × W + T |
| Corner web ×4Tray | 14.2 × 14.2 | – × H + T/2 |
| Corner web ×2Tray | 20.1 × 10 | – |
| Corner web ×2Tray | 10 × 20.1 | – |
