Sneaker tray — Drawer box dieline
Editable 350 × 230 × 125 mm starting point using drawer box. Adjust the dimensions to your product before prototyping. A ready-sized preset of the drawer box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside350 × 230 × 125 mm
Outside355 × 231 × 127.3 mm
Flat blank603 × 481 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-DRAWER-BOX-01
- Inside size
- Width 350 · Depth 230 · Height 125 mm
- Size range
- Width 30–500 · Depth 30–500 · Height 10–200 mm
- Manufacturing
- 352.5 × 230.5 × 125.3 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Sleeve, Tray
- Board area
- 0.514 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350Black 350SBS 300GD2 350F-fluteE-flute WSBS 18 pt
- Good for

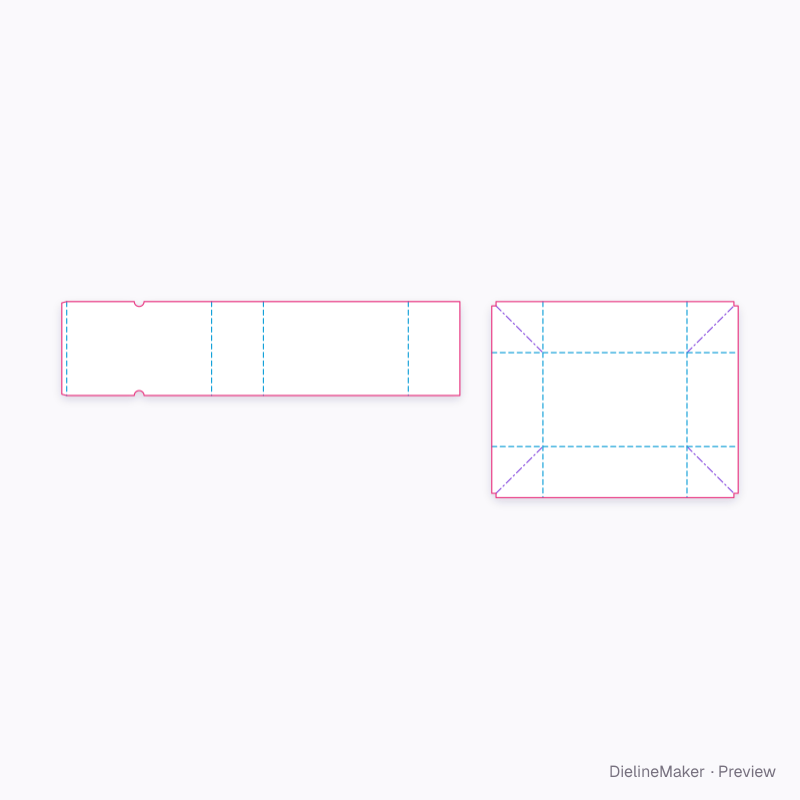

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-DRAWER-BOX-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| BottomSleeve | 354.5 × 230.5 | L + 7T + 2c × W + T |
| Left sideSleeve | 126.8 × 230.5 | H + 2.5T + c × W + T |
| TopSleeve | 354.5 × 230.5 | L + 7T + 2c × W + T |
| Right sideSleeve | 126.3 × 230.5 | H + 1.5T + c × W + T |
| Glue flapSleeve | 12 × 230.5 | – × W + T |
| Pose rigTray | 100 × 138.3 | – |
| BaseTray | 100 × 138.3 | – |
| FrontTray | 352.5 × 125.3 | – × H + T/2 |
| BackTray | 352.5 × 125.3 | – × H + T/2 |
| Left endTray | 125.3 × 230.5 | H + T/2 × W + T |
| Right endTray | 125.3 × 230.5 | H + T/2 × W + T |
| Corner web ×4Tray | 114.8 × 125.3 | – × H + T/2 |
| Corner web ×4Tray | 162.3 × 88.6 | – |
