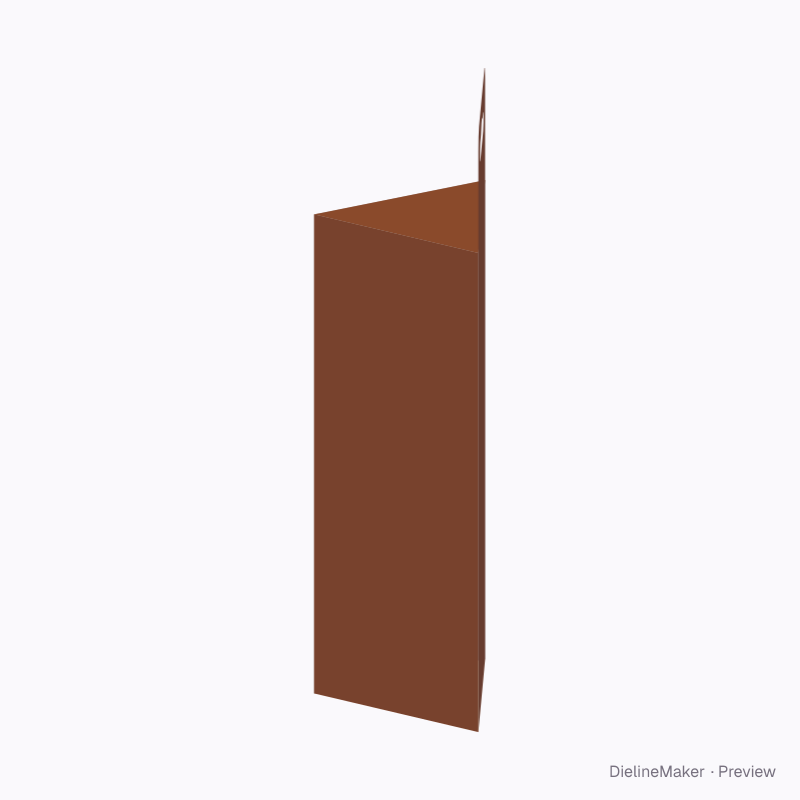

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-PRISM-HEADER-TUCK-01Shapes
Triangular prism, tuck ends, hanging header (extended back panel) dieline
Triangular prism, tuck ends, hanging header (extended back panel). A ready-sized preset of the polygonal prism, frustum and pyramid cartons — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside60 × 60 × 160 mm
Outside60.7 × 52.4 × 200.5 mm
Flat blank193.5 × 265.3 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-PRISM-HEADER-TUCK-01
- Inside size
- Side A 60 · Side B 60 · Height 160 mm
- Size range
- Side A 15–400 · Side B 15–400 · Height 20–600 mm
- Manufacturing
- 60.5 × 60.5 × 160.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.036 m² · about 10 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300FBB 400Kraft 350E-flute WSBS 18 pt
- Good for

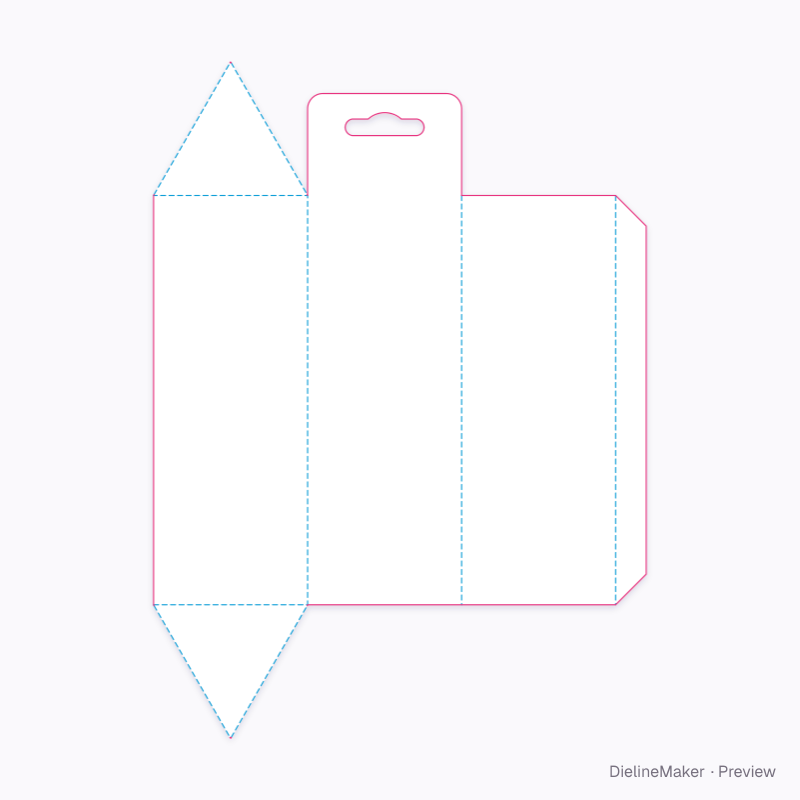

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-PRISM-HEADER-TUCK-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Wall 1 | 60.5 × 160.5 | – × H + T |
| Wall 2 | 60.5 × 160.5 | – × H + T |
| Wall 3 | 60.5 × 160.5 | – × H + T |
| Glue flap | 12 × 160.5 | – × H + T |
| Bottom lid | 60.5 × 52.4 | – |
| Top lid | 60.5 × 52.4 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 6 options; the template and 3D preview follow each change.
- Construction17 options
- Bottom section scale%
- Top section scale%
- Reduced / dust flap depth%
- Tuck depthmm
- Hanging header heightmm
