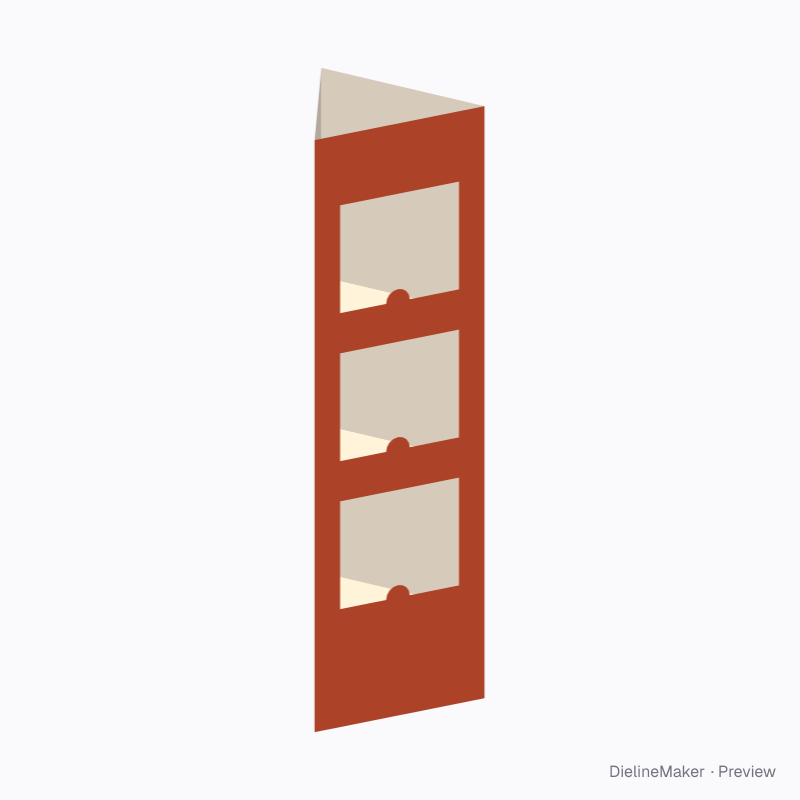

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0843Display
Triangular window tower dieline
A three-sided tower set corner-on, windows up both front faces, a tray behind each row. A ready-sized preset of the display tower — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside450 × 400 × 1500 mm
Outside456.4 × 395.7 × 1500 mm
Flat blank1391.6 × 1500 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0843
- Inside size
- Width 450 · Depth 400 · Height 1500 mm
- Size range
- Width 150–1000 · Depth 60–1000 · Height 300–2200 mm
- Manufacturing
- 453.2 × 392.5 × 1500 mm score to score · inside vs outside sizes
- Parts
- 4 parts — Triangular tower, Tray 1, Tray 2, Tray 3
- Board area
- 2.585 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteEB doubleE-flute WE-flute K
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0843 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Left faceTriangular tower | 453.2 × 1500 | L + T × H |
| Right faceTriangular tower | 453.2 × 1500 | L + T × H |
| Back faceTriangular tower | 453.2 × 1500 | L + T × H |
| Glue flapTriangular tower | 32 × 1496 | – |
| Tray 1Tray 1 | 425.8 × 368.8 | – |
| LipTray 1 | 101.5 × 414.2 | – |
| LipTray 1 | 414.2 × 101.5 | – |
| LipTray 1 | 70 × 414.2 | – |
| Tray 2Tray 2 | 425.8 × 368.8 | – |
| LipTray 2 | 101.5 × 414.2 | – |
| LipTray 2 | 414.2 × 101.5 | – |
| LipTray 2 | 70 × 414.2 | – |
| Tray 3Tray 3 | 425.8 × 368.8 | – |
| LipTray 3 | 101.5 × 414.2 | – |
| LipTray 3 | 414.2 × 101.5 | – |
| LipTray 3 | 70 × 414.2 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Construction5 options
- Rowscount
- Tray lipmm
