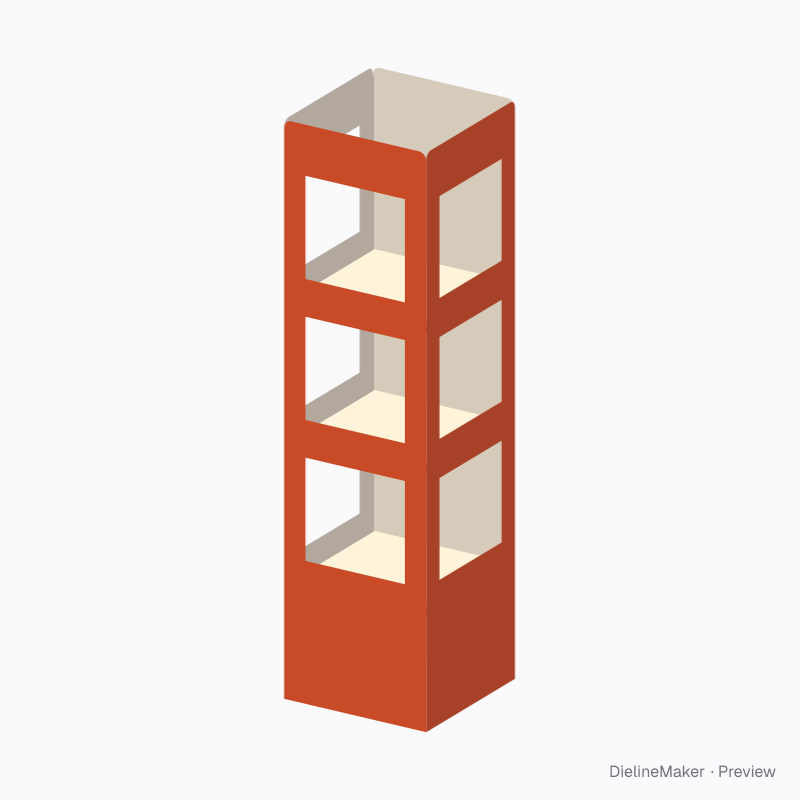

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0846Display
Square window tower dieline
A square tower with three windows up the front and sides onto trays inside. A ready-sized preset of the display tower — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside400 × 400 × 1500 mm
Outside406.4 × 406.4 × 1500 mm
Flat blank1644.8 × 1701.1 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0846
- Inside size
- Width 400 · Depth 400 · Height 1500 mm
- Size range
- Width 150–1000 · Depth 60–1000 · Height 300–2200 mm
- Manufacturing
- 403.2 × 403.2 × 1500 mm score to score · inside vs outside sizes
- Parts
- 4 parts — Square tower, Tray 1, Tray 2, Tray 3
- Board area
- 3.529 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteEB doubleE-flute WE-flute K
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0846 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| FrontSquare tower | 403.2 × 1500 | – × H |
| Right sideSquare tower | 403.2 × 1479.8 | – |
| Left sideSquare tower | 403.2 × 1479.8 | – |
| Bottom flap ×2Square tower | 396.8 × 201.1 | – |
| BackSquare tower | 403.2 × 1479.8 | – |
| Bottom inner flap ×2Square tower | 396.8 × 200.6 | – |
| Glue flapSquare tower | 32 × 1466.3 | – |
| Tray 1Tray 1 | 388.4 × 394.8 | – |
| Lip ×2Tray 1 | 376.8 × 68 | – |
| Lip ×2Tray 1 | 68 × 383.2 | – |
| Tray 2Tray 2 | 388.4 × 394.8 | – |
| Lip ×2Tray 2 | 376.8 × 68 | – |
| Lip ×2Tray 2 | 68 × 383.2 | – |
| Tray 3Tray 3 | 388.4 × 394.8 | – |
| Lip ×2Tray 3 | 376.8 × 68 | – |
| Lip ×2Tray 3 | 68 × 383.2 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Construction5 options
- Rowscount
- Tray lipmm
The display tower family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this square window tower yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
