FEFCO 0849Display
Column with hanging trays dieline

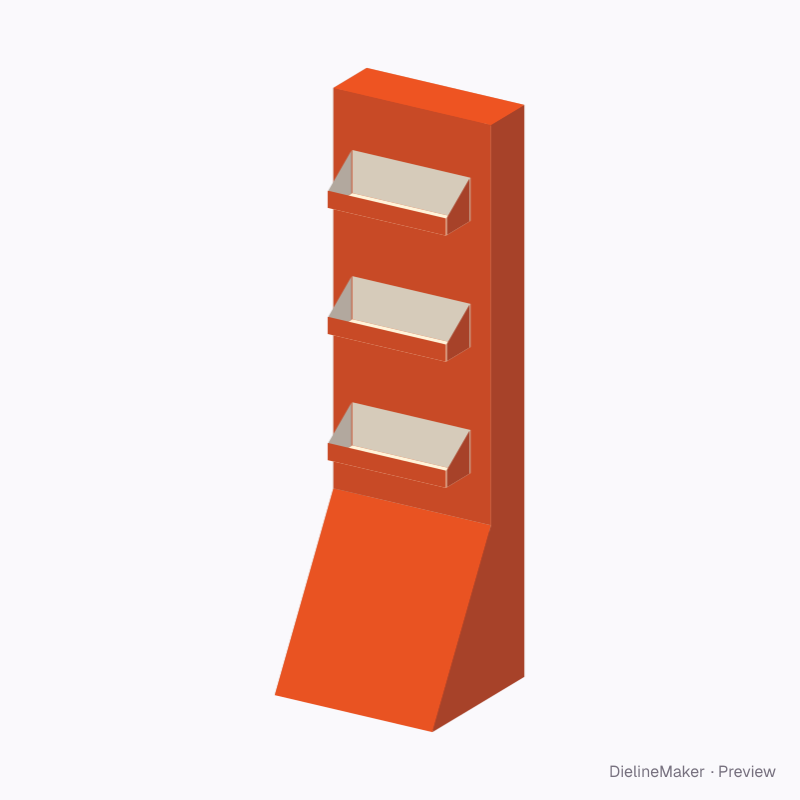

A slim column on a wedge foot with three trays hung on its front. A ready-sized preset of the display tower — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside450 × 150 × 1500 mm
Outside456.4 × 426.4 × 1500 mm
Flat blank1920.1 × 1653.2 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0849
- Inside size
- Width 450 · Depth 150 · Height 1500 mm
- Size range
- Width 150–1000 · Depth 60–1000 · Height 300–2200 mm
- Manufacturing
- 453.2 × 153.2 × 1500 mm score to score · inside vs outside sizes
- Parts
- 4 parts — Column, Hanging tray 1, Hanging tray 2, Hanging tray 3
- Board area
- 2.465 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteEB doubleE-flute WE-flute K
- Good for

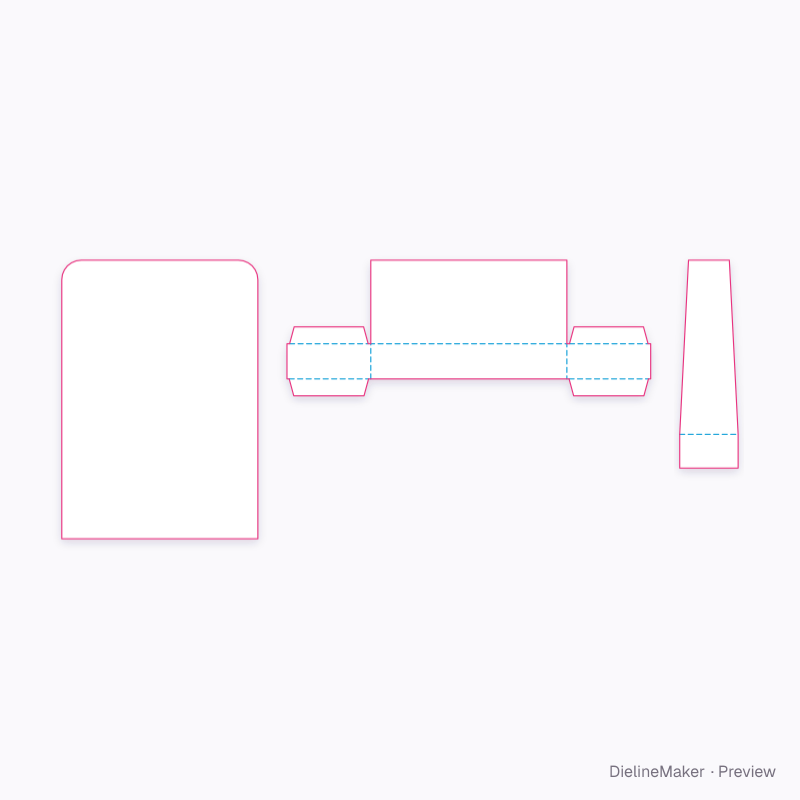

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0849 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| BackColumn | 453.2 × 1500 | L + T × H |
| Left sideColumn | 423.2 × 1500 | – × H |
| Right sideColumn | 423.2 × 1500 | – × H |
| TopColumn | 453.2 × 153.2 | L + T × W + T |
| Foot frontColumn | 453.2 × 524.8 | L + T × – |
| Closing flap ×2Column | 151.1 × 60 | – |
| FrontColumn | 453.2 × 1050 | L + T × – |
| Glue flapColumn | 32 × 519.9 | – |
| Glue flapColumn | 436.4 × 32 | – |
| Glue flapColumn | 32 × 1039.5 | – |
| Closing flapColumn | 447 × 60 | – |
| Hanger backHanging tray 1 | 339.9 × 113 | – |
| TrayHanging tray 1 | 339.9 × 113.3 | – |
| Tray frontHanging tray 1 | 339.9 × 45.2 | – |
| Tray side ×2Hanging tray 1 | 113 × 104.9 | – |
| Hanger backHanging tray 2 | 339.9 × 113 | – |
7 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Construction5 options
- Rowscount
- Tray lipmm
- Wedge foot heightmm
The display tower family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this column with hanging trays yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
