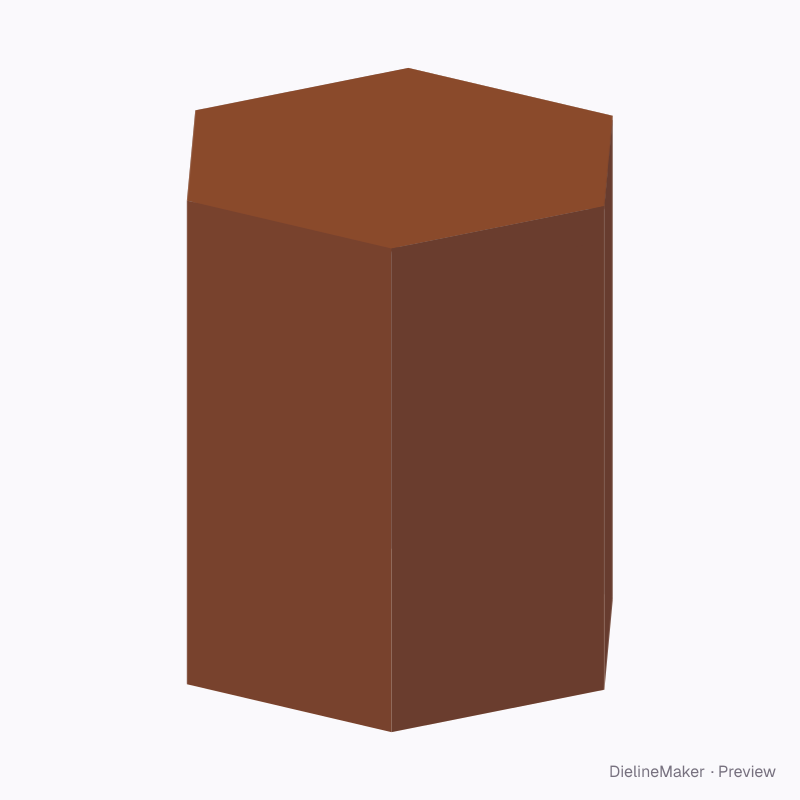

FEFCO 0730 · Hexagonal automatic-bottom case dieline
Six sides with a complete covering floor. A ready-sized preset of the hexagonal automatic-bottom case — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
InsideØ 200 × 250 mm
OutsideØ 203.2 × 254.8 mm
Flat blank716.8 × 661.2 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0730
- Inside size
- Across flats 200 · Height 250 mm
- Size range
- Across flats 80–600 · Height 50–900 mm
- Manufacturing
- Ø 201.6 × 251.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.296 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- B-fluteEB doubleE-flute KE-flute WF-flute
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0730 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Back | 116.4 × 251.6 | (ICD + T)·tan 30° × H + T |
| Back left | 116.4 × 251.6 | (ICD + T)·tan 30° × H + T |
| Front left | 116.4 × 251.6 | (ICD + T)·tan 30° × H + T |
| Front | 116.4 × 251.6 | (ICD + T)·tan 30° × H + T |
| Front right | 116.4 × 251.6 | (ICD + T)·tan 30° × H + T |
| Back right | 114.8 × 251.6 | (ICD + T)·tan 30° − T × H + T |
| Glue flap | 20 × 251.6 | – × H + T |
| Hexagonal lid | 116.4 × 201.6 | – × L + T |
| Full hexagonal floor | 116.4 × 201.6 | – × L + T |
| Oblique lid tuck ×2 | 18 × 116.4 | – |
| Top inner flap ×2 | 116.4 × 48.9 | – |
| Top inner flap | 114.8 × 48.9 | – |
| Diagonal automatic floor flap ×2 | 116.4 × 76.8 | – |
| Pre-glued diagonal web ×2 | 61.7 × 87 | – |
| Automatic floor inner flap ×2 | 116.4 × 45.4 | – |
