ECMA F60.12.00.00Tuck end
Mini hinge-lid pack 42 × 18 × 48 mm dieline
Pocket hinge-lid pack with the inner frame, for a 360° mockup of a small pack. A ready-sized preset of the flip-top box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside42 × 18 × 48 mm
Outside44.5 × 18.8 × 48.8 mm
Flat blank80.9 × 135.2 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA F60.12.00.00
- Inside size
- Length 42 · Width 18 · Height 48 mm
- Size range
- Length 20–200 · Width 10–120 · Height 30–250 mm
- Manufacturing
- 44.1 × 18.4 × 48.4 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Flip-top box, Inner frame
- Board area
- 0.011 m² · about 56 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 300 g · 0.42 mm caliper
- Board options
- SBS 300SBS 350FBB 400GD2 350Kraft 350Black 350SBS 18 pt
- Good for

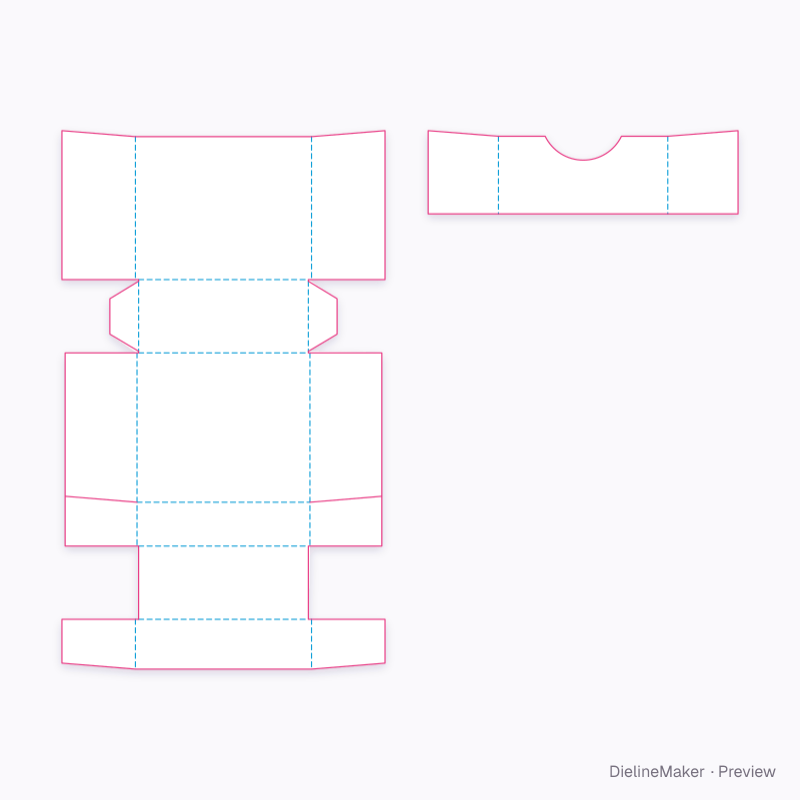

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How it folds
The mini hinge-lid pack 42 × 18 × 48 mm erects in 7 steps, in the order the creases are scored to take. The editor plays the same sequence in 3D and lights each step’s creases on the dieline.
- 1Set the insertInner frame side and 1 more
- 2Fold the corner ears inBottom end flap and 1 more
- 3Fold the glue flap and glue the seamInner side flap, Inner lid flap and 2 more
- 4Fold the baseBottom, Back, Lid back
- 5Close the lidLid top
- 6Close the lidLid front
- 7Fold the walls upLeft side, Left lid side, Right side, Right lid side
How the blank is sized
Score-to-score panel sizes of this ECMA F60.12.00.00 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.42 mm for SBS white board 300 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| FrontFlip-top box | 44.1 × 35.9 | L + 5T × H + T − lid |
| BottomFlip-top box | 42.4 × 18.4 | L + T × W + T |
| BackFlip-top box | 42.4 × 37.4 | L + 3T × H + T − lid back |
| Lid backFlip-top box | 43.3 × 11 | L + 3T × lid back |
| Lid topFlip-top box | 42.4 × 18.4 | L + T × W + T |
| Lid frontFlip-top box | 42.4 × 12.5 | L + 5T × lid |
| Left sideFlip-top box | 18.4 × 35.9 | W + T × – |
| Left lid sideFlip-top box | 18.4 × 12.5 | W + T × – |
| Inner side flap ×2Flip-top box | 18 × 37.4 | W × – |
| Inner lid flap ×2Flip-top box | 18 × 11 | W × – |
| Bottom end flap ×2Flip-top box | 7.2 × 17.6 | – × W − T |
| Right sideFlip-top box | 18.4 × 35.9 | W + T × – |
| Right lid sideFlip-top box | 18.4 × 12.5 | W + T × – |
| Inner frameInner frame | 42.4 × 19.5 | L + T × rise + depth |
| Inner frame side ×2Inner frame | 17.6 × 19.5 | W − T × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Lid height (front)mm
- Lid height (back)mm
- Frame risemm
The flip-top box family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Before you choose this template
Size, materials, downloads and production checks.
Will the mini hinge-lid pack 42 × 18 × 48 mm dieline fit my product?
Pocket hinge-lid pack with the inner frame, for a 360° mockup of a small pack. The default dimensions in inside-size mode are Length 42 mm, Width 18 mm, Height 48 mm. Measure your product and any inserts or wrapping, then set the template size. Check a physical sample with your contents before ordering production.
Can I change the size and design?
Yes. The supported ranges are Length 20–200 mm, Width 10–120 mm, Height 30–250 mm. At the default settings, the editor also exposes Lid height (front), Lid height (back), Frame rise. Add your own artwork and preview the result in 3D. The template geometry is rebuilt when its dimensions change.
Which materials can I choose?
The default is SBS white board 300 g (0.42 mm caliper). This structure allows SBS white board 300 g, SBS white board 350 g, Folding boxboard 400 g, Grey-back duplex 350 g, Kraft board 350 g, Black-core board 350 g, SBS white board 18 pt. Select the stock before checking fit, and ask your converter to confirm the grade and caliper for the intended product.
Which files can I download?
The template page offers dimensioned PDF, Illustrator (.ai via script), layered SVG and DXF cutting and crease geometry. After adding artwork in the editor, you can export a print-ready PDF and review the bleed, safe areas and dieline layers with your printer.
Is this dieline free?
Browsing the previews is free, and you can customize the template after signing in with Google. Template and print-file downloads require a Pro or Business plan. The Free plan allows one eligible download every 8 hours; free mockups, renders and videos carry a watermark. See the pricing page for the current plans.
Can I send the download straight to production?
Use the file as a starting point for a printer or converter review. Confirm the finished dimensions, stock, crease and cutting setup, assembly, bleed and artwork, then approve a physical sample. The 3D preview does not test strength, transit performance or suitability for particular contents.
