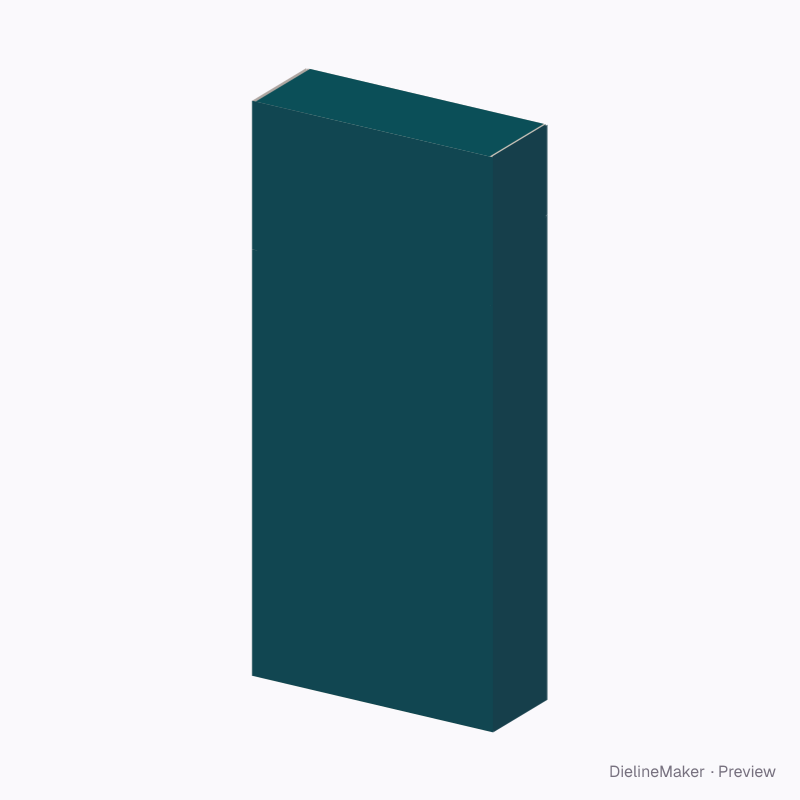

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA F60.12.00.00Tuck end
Flip-top tea stick box dieline
Kraft hinged-lid box for twelve stick sachets of matcha or instant coffee. A ready-sized preset of the flip-top box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside60 × 22 × 135 mm
Outside62.8 × 22.9 × 135.9 mm
Flat blank107.2 × 329.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA F60.12.00.00
- Inside size
- Length 60 · Width 22 · Height 135 mm
- Size range
- Length 20–200 · Width 10–120 · Height 30–250 mm
- Manufacturing
- 62.3 × 22.5 × 135.5 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Flip-top box, Inner frame
- Board area
- 0.036 m² · about 18 up on a 720 × 1020 mm sheet
- Default board
- Kraft board 350 g · 0.46 mm caliper
- Board options
- SBS 300SBS 350FBB 400GD2 350Kraft 350Black 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA F60.12.00.00 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.46 mm for Kraft board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| FrontFlip-top box | 62.3 × 100.5 | L + 5T × H + T − lid |
| BottomFlip-top box | 60.5 × 22.5 | L + T × W + T |
| BackFlip-top box | 60.5 × 114.5 | L + 3T × H + T − lid back |
| Lid backFlip-top box | 61.4 × 21 | L + 3T × lid back |
| Lid topFlip-top box | 60.5 × 22.5 | L + T × W + T |
| Lid frontFlip-top box | 60.5 × 35 | L + 5T × lid |
| Left sideFlip-top box | 22.5 × 100.5 | W + T × – |
| Left lid sideFlip-top box | 22.5 × 35 | W + T × – |
| Inner side flap ×2Flip-top box | 22 × 114.5 | W × – |
| Inner lid flap ×2Flip-top box | 22 × 21 | W × – |
| Bottom end flap ×2Flip-top box | 8.8 × 21.5 | – × W − T |
| Right sideFlip-top box | 22.5 × 100.5 | W + T × – |
| Right lid sideFlip-top box | 22.5 × 35 | W + T × – |
| Inner frameInner frame | 60.5 × 37.5 | L + T × rise + depth |
| Inner frame side ×2Inner frame | 21.5 × 37.5 | W − T × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Lid height (front)mm
- Lid height (back)mm
- Frame risemm
The flip-top box family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this flip-top tea stick box yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
