Preview image

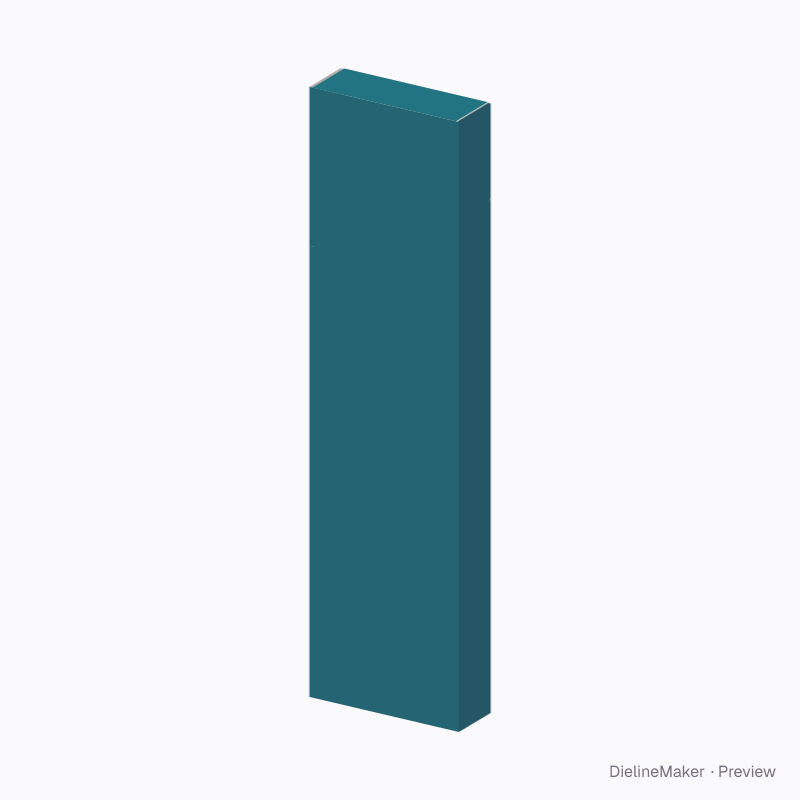

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA F60.12.00.00Tuck end
Flip-top pencil box (12) dieline
Twelve hexagonal pencils in two rows under a hinged lid. A ready-sized preset of the flip-top box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside46 × 16 × 180 mm
Outside49 × 17 × 181 mm
Flat blank81.5 × 413 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA F60.12.00.00
- Inside size
- Length 46 · Width 16 · Height 180 mm
- Size range
- Length 20–200 · Width 10–120 · Height 30–250 mm
- Manufacturing
- 48.5 × 16.5 × 180.5 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Flip-top box, Inner frame
- Board area
- 0.035 m² · about 16 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 300SBS 350FBB 400GD2 350Kraft 350Black 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA F60.12.00.00 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| FrontFlip-top box | 48.5 × 133.5 | L + 5T × H + T − lid |
| BottomFlip-top box | 46.5 × 16.5 | L + T × W + T |
| BackFlip-top box | 46.5 × 152.5 | L + 3T × H + T − lid back |
| Lid backFlip-top box | 47.5 × 28 | L + 3T × lid back |
| Lid topFlip-top box | 46.5 × 16.5 | L + T × W + T |
| Lid frontFlip-top box | 46.5 × 47 | L + 5T × lid |
| Left sideFlip-top box | 16.5 × 133.5 | W + T × – |
| Left lid sideFlip-top box | 16.5 × 47 | W + T × – |
| Inner side flap ×2Flip-top box | 16 × 152.5 | W × – |
| Inner lid flap ×2Flip-top box | 16 × 28 | W × – |
| Bottom end flap ×2Flip-top box | 6.4 × 15.5 | – × W − T |
| Right sideFlip-top box | 16.5 × 133.5 | W + T × – |
| Right lid sideFlip-top box | 16.5 × 47 | W + T × – |
| Inner frameInner frame | 46.5 × 50.5 | L + T × rise + depth |
| Inner frame side ×2Inner frame | 15.5 × 50.5 | W − T × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Lid height (front)mm
- Lid height (back)mm
- Frame risemm
