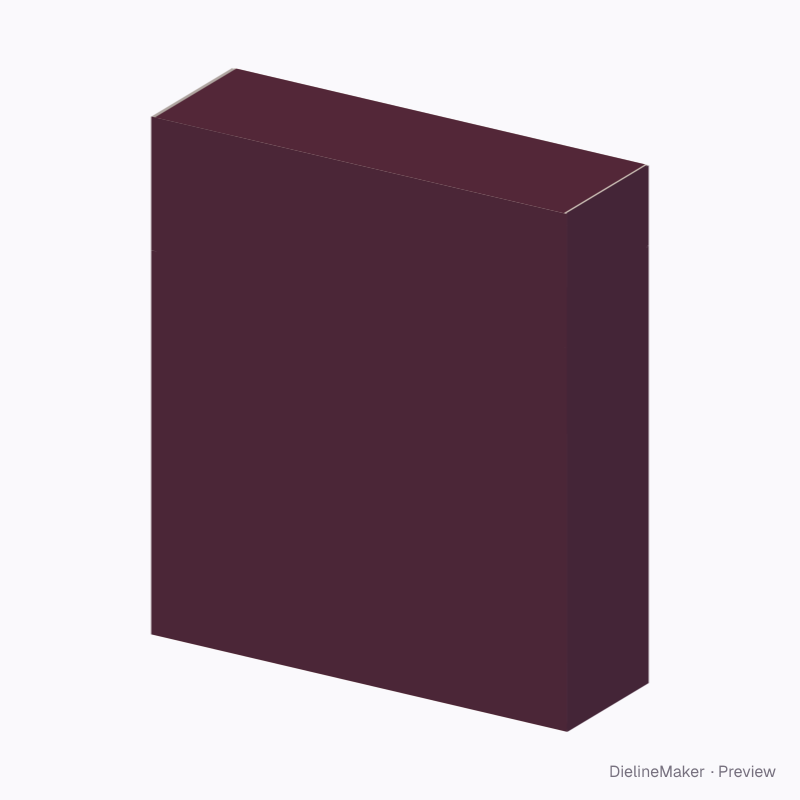

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA F60.12.00.00Tuck end
Artist chalk carton — Flip-top box dieline
Editable 95 × 30 × 110 mm starting point using flip-top box. Adjust the dimensions to your product before prototyping. A ready-sized preset of the flip-top box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside95 × 30 × 110 mm
Outside97.5 × 30.8 × 110.8 mm
Flat blank157.9 × 293.2 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA F60.12.00.00
- Inside size
- Length 95 · Width 30 · Height 110 mm
- Size range
- Length 20–200 · Width 10–120 · Height 30–250 mm
- Manufacturing
- 97.1 × 30.4 × 110.4 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Flip-top box, Inner frame
- Board area
- 0.046 m² · about 12 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 300 g · 0.42 mm caliper
- Board options
- SBS 300SBS 350FBB 400GD2 350Kraft 350Black 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA F60.12.00.00 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.42 mm for SBS white board 300 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| FrontFlip-top box | 97.1 × 81.9 | L + 5T × H + T − lid |
| BottomFlip-top box | 95.4 × 30.4 | L + T × W + T |
| BackFlip-top box | 95.4 × 93.4 | L + 3T × H + T − lid back |
| Lid backFlip-top box | 96.3 × 17 | L + 3T × lid back |
| Lid topFlip-top box | 95.4 × 30.4 | L + T × W + T |
| Lid frontFlip-top box | 95.4 × 28.5 | L + 5T × lid |
| Left sideFlip-top box | 30.4 × 81.9 | W + T × – |
| Left lid sideFlip-top box | 30.4 × 28.5 | W + T × – |
| Inner side flap ×2Flip-top box | 30 × 93.4 | W × – |
| Inner lid flap ×2Flip-top box | 30 × 17 | W × – |
| Bottom end flap ×2Flip-top box | 12 × 29.6 | – × W − T |
| Right sideFlip-top box | 30.4 × 81.9 | W + T × – |
| Right lid sideFlip-top box | 30.4 × 28.5 | W + T × – |
| Inner frameInner frame | 95.4 × 31 | L + T × rise + depth |
| Inner frame side ×2Inner frame | 29.6 × 31 | W − T × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Lid height (front)mm
- Lid height (back)mm
- Frame risemm
