Preview image

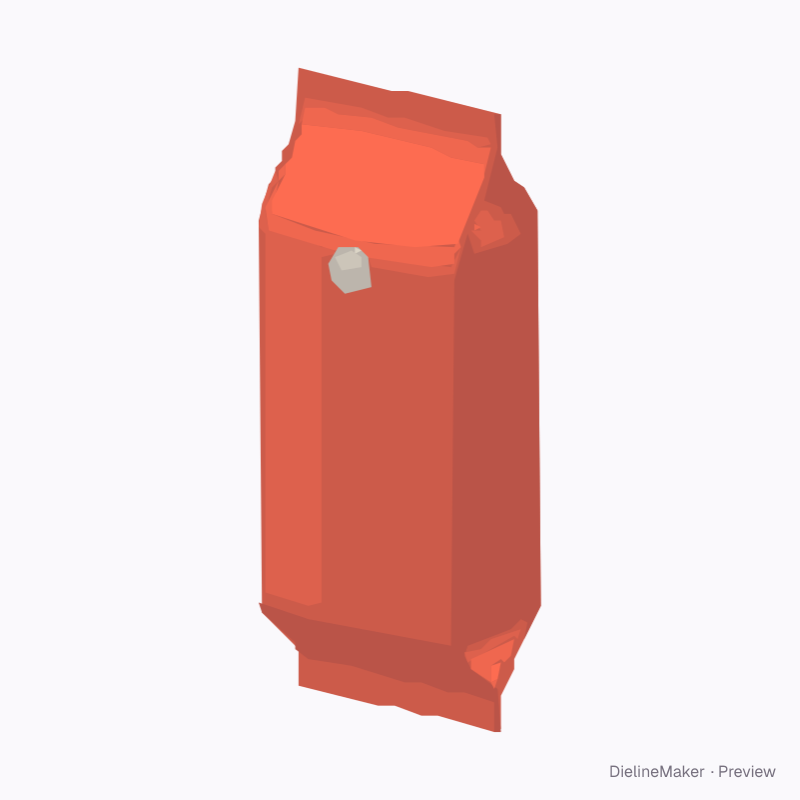

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureBags & pouches
Confectionery gusset bag dieline
100 × 280 mm starting dimensions. Adjust to your actual container or product. A ready-sized preset of the side-gusset bag — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside100 × 280 mm
Outside100 × 280 mm
Flat blank350 × 280 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Front width 100 · Height 280 mm
- Size range
- Front width 50–400 · Height 100–700 mm
- Manufacturing
- 100 × 280 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.098 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- Kraft paper / PE laminate · 0.12 mm caliper
- Board options
- Kraft/PEMet PET/PEWhite PET/PEClear PET/PE
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.12 mm for Kraft paper / PE laminate). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Fin seal (outer) | 10 × 280 | – × H |
| Back (left side) | 50 × 280 | – × H |
| Left gusset | 65 × 280 | – × H |
| Front | 100 × 280 | L × H |
| Right gusset | 65 × 280 | – × H |
| Back (right side) | 50 × 280 | – × H |
| Fin seal (inner) | 10 × 280 | – × H |
Adjustable in the editor
Beyond the size and board, this structure exposes 10 options; the template and 3D preview follow each change.
- Top construction2 options
- Side gussetmm
- Fin sealmm
- Corners2 options
- Top sealmm
- Bottom sealmm
- Degassing valveon / off
- Valve from topmm
- Tear notcheson / off
- Fill%
