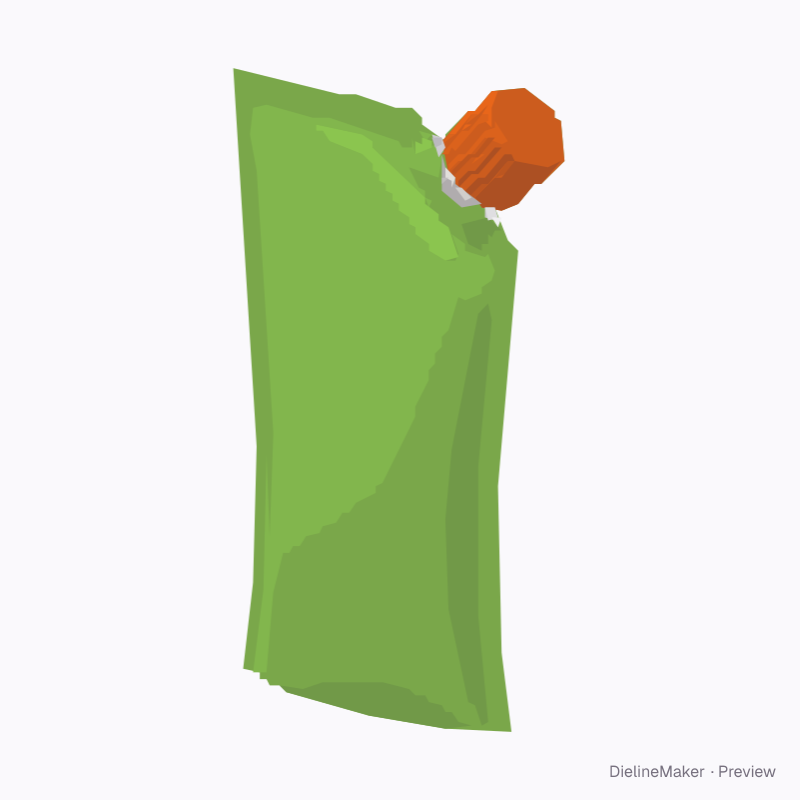

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureBags & pouches
Sports-gel spout pouch dieline
75 × 145 mm starting dimensions. Adjust to your actual container or product. A ready-sized preset of the spout pouch — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside75 × 145 mm
Outside75 × 145 mm
Flat blank75 × 145 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Width 75 · Height 145 mm
- Size range
- Width 60–320 · Height 90–450 mm
- Manufacturing
- 75 × 145 mm score to score · inside vs outside sizes
- Parts
- 3 parts — Front web, Back web, Bottom gusset
- Board area
- 0.024 m² · about 48 up on a 720 × 1020 mm sheet
- Default board
- Metallised PET / PE laminate · 0.09 mm caliper
- Board options
- Met PET/PEWhite PET/PEClear PET/PEKraft/PE
- Good for
The flat dieline

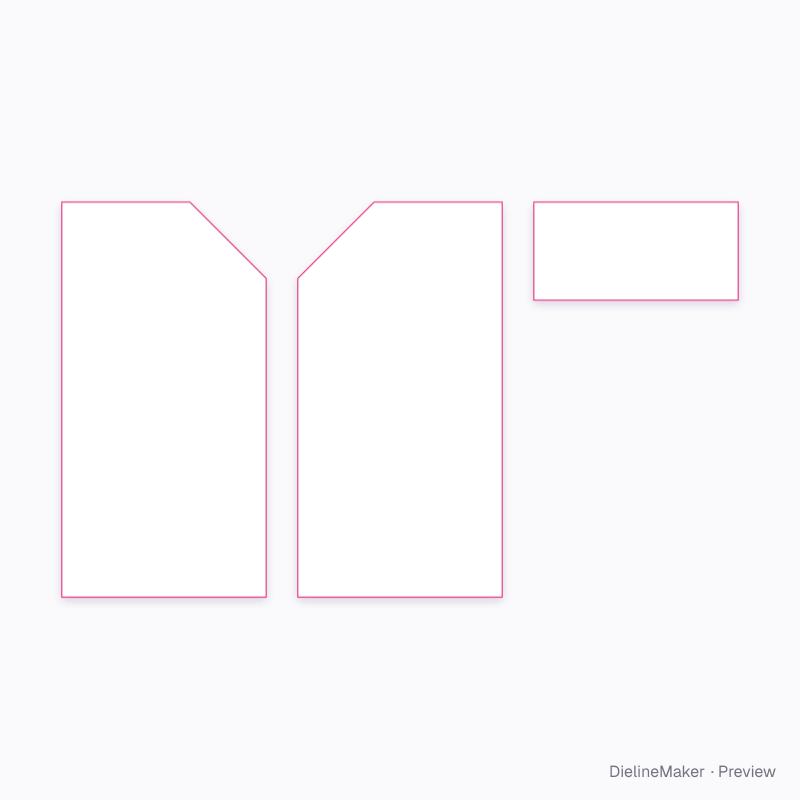

Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
