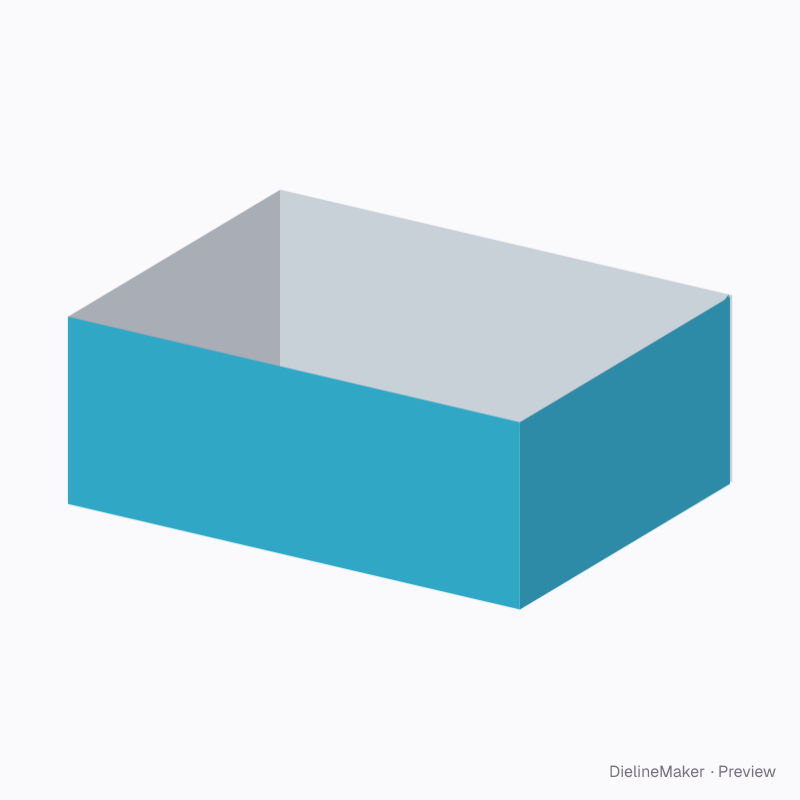

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0700Shipping
Crash-lock open tray dieline
Open-top tray with a pre-glued auto bottom: squares up with the base locked, for picking bins, produce and shelf trays. A ready-sized preset of the crash-lock shipper — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside400 × 300 × 150 mm
Outside406.4 × 306.4 × 156.4 mm
Flat blank1441.6 × 335.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0700
- Inside size
- Length 400 · Width 300 · Height 150 mm
- Size range
- Length 100–800 · Width 60–600 · Height 50–800 mm
- Manufacturing
- 403.2 × 303.2 × 153.2 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.426 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- E-flute KE-flute WB-fluteF-fluteEB double
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0700 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 403.2 × 153.2 | L + T × H + T |
| Left side | 303.2 × 153.2 | W + T × H + T |
| Back | 403.2 × 153.2 | L + T × H + T |
| Right side | 300 × 153.2 | W × H + T |
| Glue flap | 32 × 153.2 | – × H + T |
| Crash-lock flap (back) | 403.2 × 182.6 | L + T × – |
| Glued web ×2 | 214.4 × 106.8 | – |
| Bottom side flap | 303.2 × 150 | W + T × – |
| Crash-lock flap (front) | 403.2 × 182.6 | L + T × – |
| Bottom side flap | 300 × 150 | W × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Hook reachmm
- Hook notchmm
- Open top (FEFCO 0700)on / off
- Hand holeson / off
