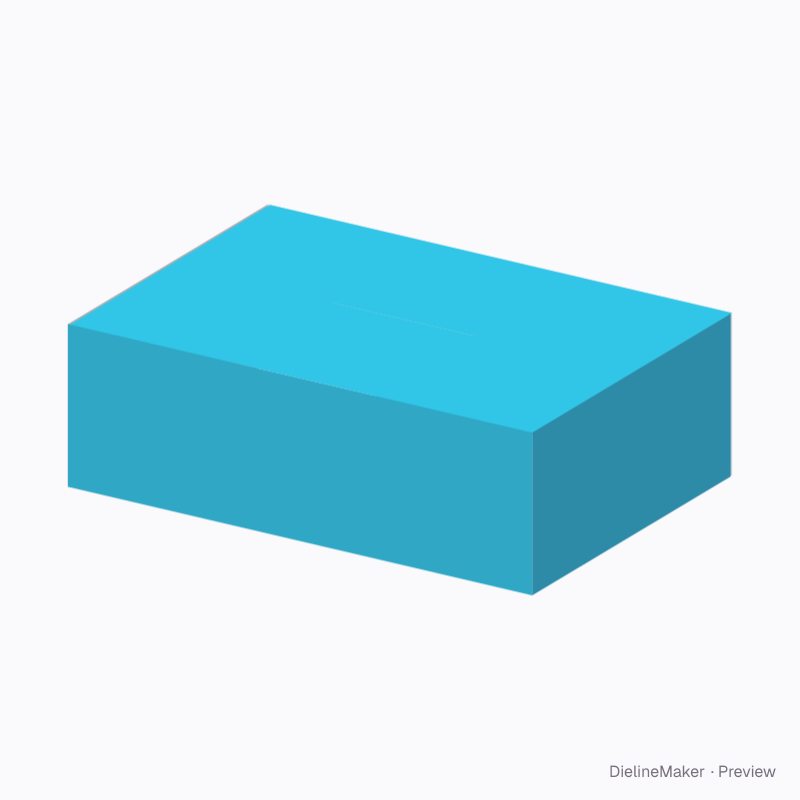

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0711Shipping
Shallow product carton — Crash-lock shipper dieline
Editable 320 × 220 × 100 mm starting point using crash-lock shipper. Adjust the dimensions to your product before prototyping. A ready-sized preset of the crash-lock shipper — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside320 × 220 × 100 mm
Outside323.2 × 223.2 × 106.4 mm
Flat blank1104.8 × 347.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0711
- Inside size
- Length 320 · Width 220 · Height 100 mm
- Size range
- Length 100–800 · Width 60–600 · Height 50–800 mm
- Manufacturing
- 321.6 × 221.6 × 103.2 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.350 m²
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- E-flute KE-flute WB-fluteF-fluteEB double
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0711 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 321.6 × 103.2 | L + T × H + 2T |
| Left side | 221.6 × 103.2 | W + T × H + 2T |
| Back | 321.6 × 103.2 | L + T × H + 2T |
| Right side | 220 × 103.2 | W × H + 2T |
| Glue flap | 20 × 103.2 | – × H + 2T |
| Crash-lock flap (back) | 321.6 × 133.8 | L + T × – |
| Glued web | 156.7 × 77.9 | – |
| Bottom side flap | 221.6 × 110 | W + T × – |
| Crash-lock flap (front) | 321.6 × 133.8 | L + T × – |
| Glued web | 77.9 × 156.7 | – |
| Bottom side flap | 220 × 110 | W × – |
| Top outer flap | 320 × 110.8 | L × – |
| Top inner flap ×2 | 218.4 × 110.8 | W − T × – |
| Top outer flap | 318.4 × 110.8 | L − T × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Hook reachmm
- Hook notchmm
- Open top (FEFCO 0700)on / off
- Hand holeson / off
